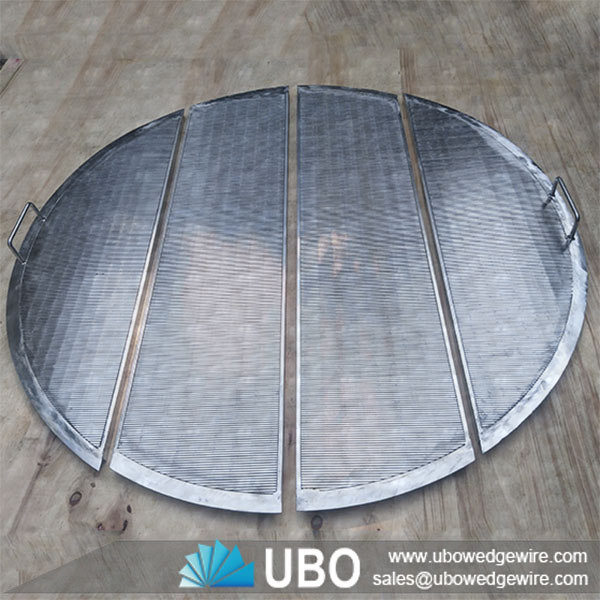

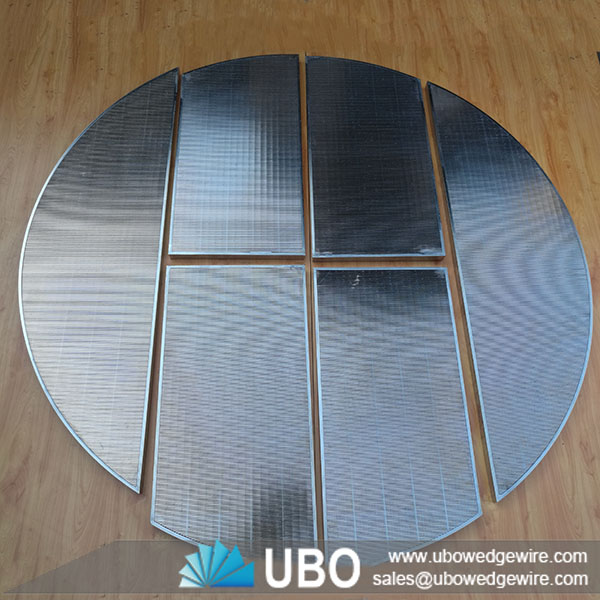

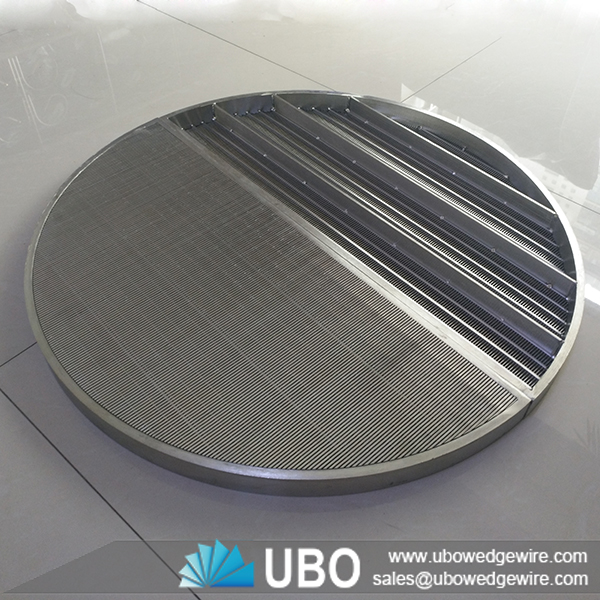

New type lauter tun false bottom screen plate with handle

More Views

New type lauter tun false bottom screen plate with handleNew type lauter tun false bottom screen plate with handleNew type lauter tun false bottom screen plate with handle

New type lauter tun false bottom screen plate with handle

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:lauter tun screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the New type lauter tun false bottom screen plate with handle

New type lauter tun false bottom screen plate with handle restrict grains from being collected with the wort when it is drawn from the mash in preparation for the boil. lauter tun false bottom screen plate has more advantage than the normal slot steel panel screen.

New type lauter tun false bottom screen plate is a metal mesh structural elements for screening and filtering. It is widely used in many industries, filtration, dehydration, removing mud and other operations. It has high strength, rigidity and load capacity, can be made into various shapes of rigid screening.
Our company has the most sophisticated processing equipment and the most advanced detection system. Precision is up to ± 0.05 mm, hole accuracy is up to ± 0.05 mm ,sieve slit is up to 0.1 mm minimum.

Strcture of New type lauter tun false bottom screen plate with handle

Application of New type lauter tun false bottom screen plate with handle

•Lauter tun screen
• Mash tun screen
• False bottom screens
• Custom made screens for retro-fit or new installations

Application of New type lauter tun false bottom screen plate with handle

How the New type lauter tun false bottom screen plate with handle working

In the lautering process, the wort (the liquid containing the sugar extracted during mashing) is separated from the grains. This is done either in a lauter tun outfitted with a false bottom or in a mash filter. Most separation processes have two stages: first wort run-off, during which the extract is separated in an undiluted state from the spent grains, and sparging, in which extract which remains with the grains is rinsed off with hot water. The lauter tun false bottom is designed to hold back the large bits of grist and hulls. The bed of grist that settles on it is the actual filter. Lauter tuns have provisions for rotating rakes to cut into the bed of grist to maintain good flow. When the process is complete, a plow can be dropped to drive the spent grain out of the vessel.



New type lauter tun false bottom screen plate with handle

New type lauter tun false bottom screen plate with handle



The specifications of the New type lauter tun false bottom screen plate with handle:

New type lauter tun false bottom screen plate with handle

Material:

  stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Round : 2.50mm -- 6.0mm

Diameter ranging

from 1 inch -----45 inch.

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Note: Other specifications can be customized according to your requirement

The Packaging and Transportation of the New type lauter tun false bottom screen plate with handle:

Transportaion of New type lauter tun false bottom screen plate with handle
