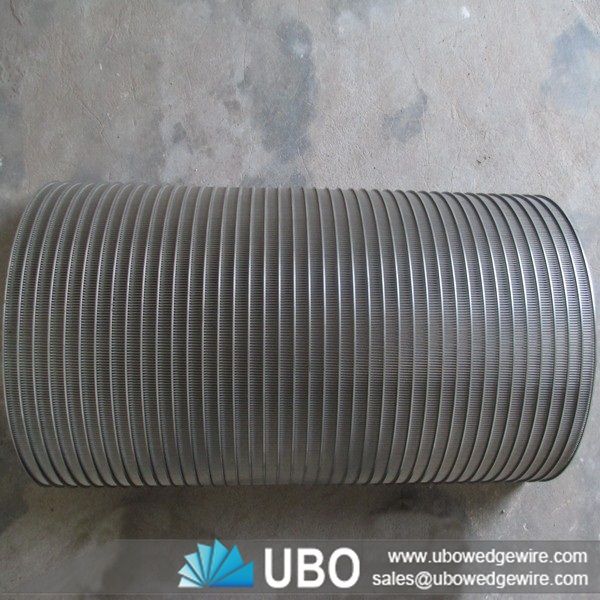

Wedge wire curve screen panel for food procesing

More Views

Wedge wire curve screen panel for food procesingWedge wire curve screen panel for food procesingWedge wire curve screen panel for food procesing

Wedge wire curve screen panel for food procesing

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge wire curve screen panel for food procesing

Wedge wire curve screen pane is a high efficiency curve separate madia by wet material pressure.
Wedge wire curve screen pane have high strenthen and carrying capacity,the V wire make sure the screen will not block,easy clean,working very long time.The Wedge wire parabolic filter made by Nanrui with high accuracy and can instead of all Johnson screen.
Material: AISI 302,AISI 304,AISI 304L,AISI 316,AISI 316L.,polyester frame.

Advantages of Wedge wire curve screen panel for food procesing

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

Application of Wedge wire curve screen panel for food procesing

Wedge wire curve screen panel is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

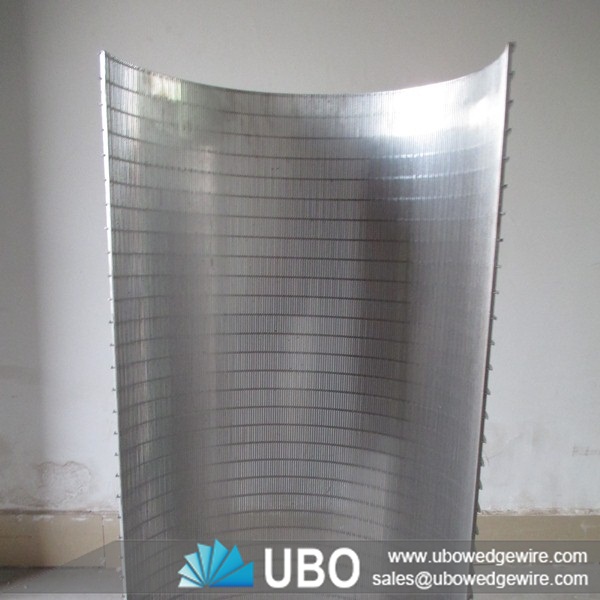

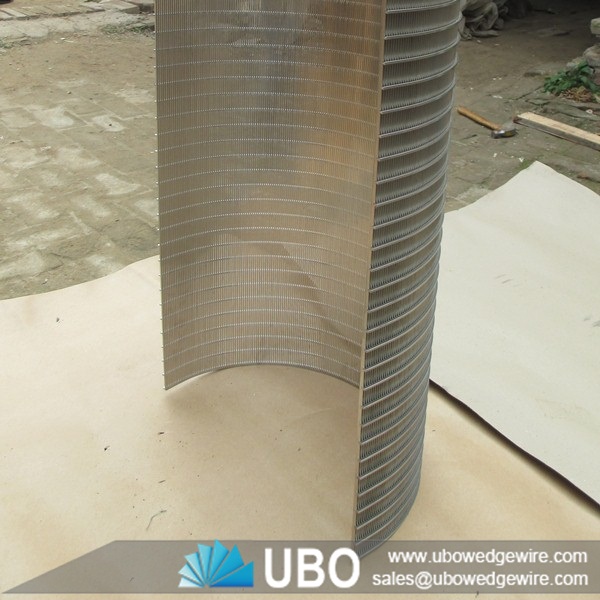

Wedge wire curve screen panel for food procesing

The specifications of the Wedge wire curve screen panel for food procesing:

Wedge wire curve screen panel for food procesing

Item

Technical

Specification

1

Sieve

Width(mm)

605

800

1000

1200

1500

1800

2000

2

Sieve Length(mm)

800

800

800

800

800

800

800

3

Sieve angle(mm)

50°

50°

50°

50°

50°

50°

50°

4

Flow rate(m3/h)

15-25

45-85

55-110

65-130

80-160

100-180

120-220

The Packaging and Transportation of the Wedge wire curve screen panel for food procesing:

Wedge wire curve screen panel for food procesing
