Stainless Steel V Shaped Wire Screens
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | Wedge Wire Pipe |
Application: | filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless Steel V Shaped Wire Screens

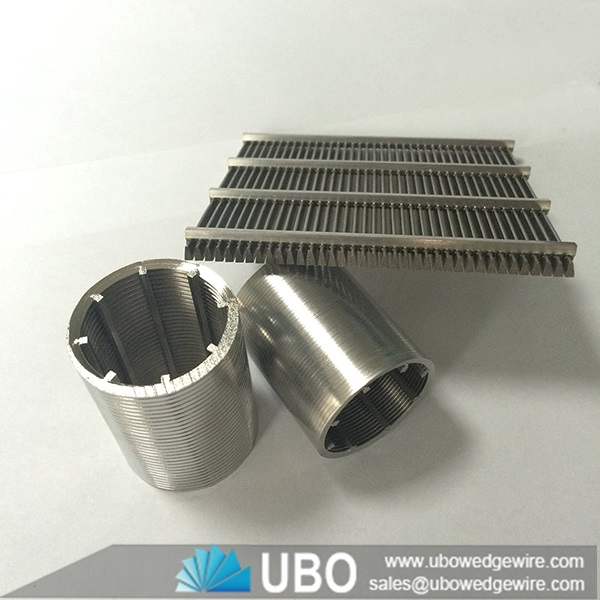

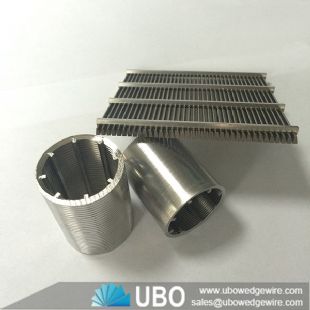

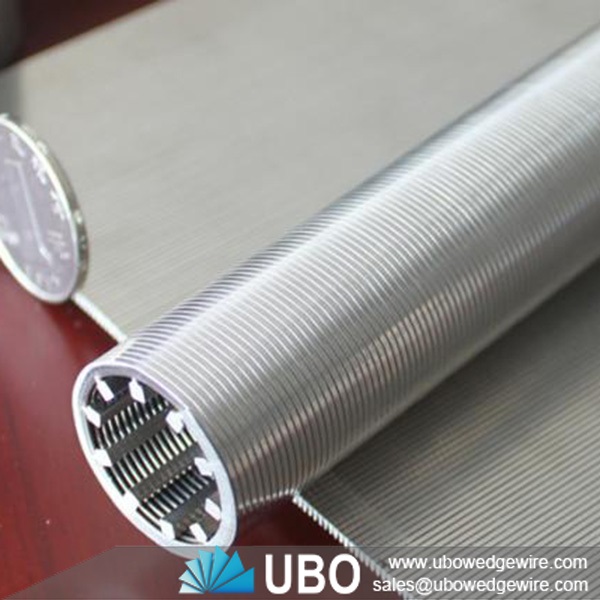

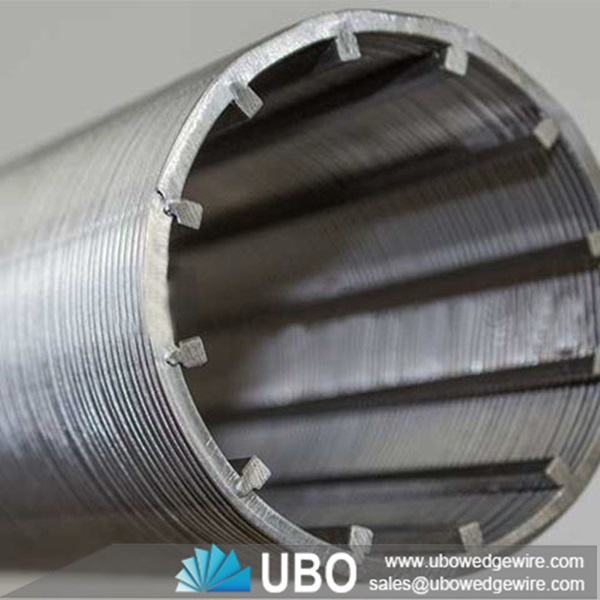

Wire wrapped stainless steel wedge wire screen meshs are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Application for Stainless Steel V Shaped Wire Screens:
Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load.
Used for fiber removal in Starch industry.
Features for Stainless Steel V Shaped Wire Screens:
1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2) Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water levels down, thus to save energy consumption.
3) Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwaters entering into the screen much slower than any other filtration apparatus, which will avoid sands entering into.
Specifications of Stainless Steel V Shaped Wire Screens:
Size
(inch)
|
O.D
(mm)
|
Slot
(inch)
|
Collapse Strength
(Psi)
|
Tensile Weight
(Ton)
|
Wrap(thick*deep)
(mm)
|
Rods
(mm)
|
4
|
117
|
0.04
|
395
|
6
|
2.2*3.0
|
3.8mm/22
|
4
|
114.3
|
0.04
|
395
|
6
|
2.3*3.0
|
3.8mm/22
|
6
|
168.3
|
0.04
|
252
|
8
|
2.3*3.5
|
3.8mm/32
|
8
|
219.1
|
0.01
|
399
|
10.5
|
3.0*5.0
|
3.8mm/48
|
8
|
219.1
|
0.02
|
370
|
10.5
|
3.0*5.0
|
3.8mm/48
|
8
|
219.1
|
0.04
|
323
|
10.5
|
3.0*5.0
|
3.8mm/48
|
10
|
273.1
|
0.01
|
206
|
11
|
3.0*5.0
|
3.8mm/50
|
10
|
273.1
|
0.02
|
191
|
11
|
3.0*5.0
|
3.8mm/50
|
10
|
273.1
|
0.04
|
167
|
11
|
3.0*5.0
|
3.8mm/50
|
