Water filter nozzle screen for filtration
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 302,304,304L,316,316L |
Properties: | wedge wire screen |
Application: | water treatment ,oilfield,mining,water well,food,industry,filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Water filter nozzle screen for filtration

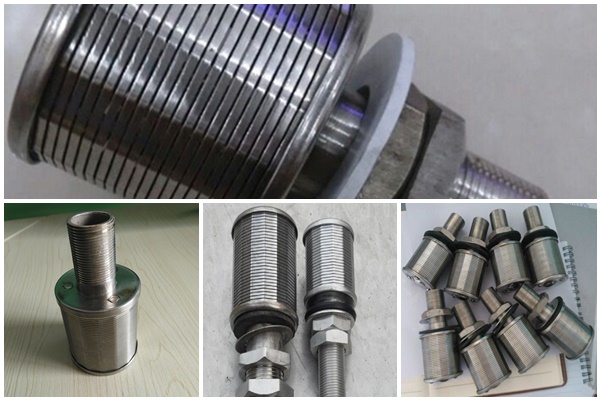

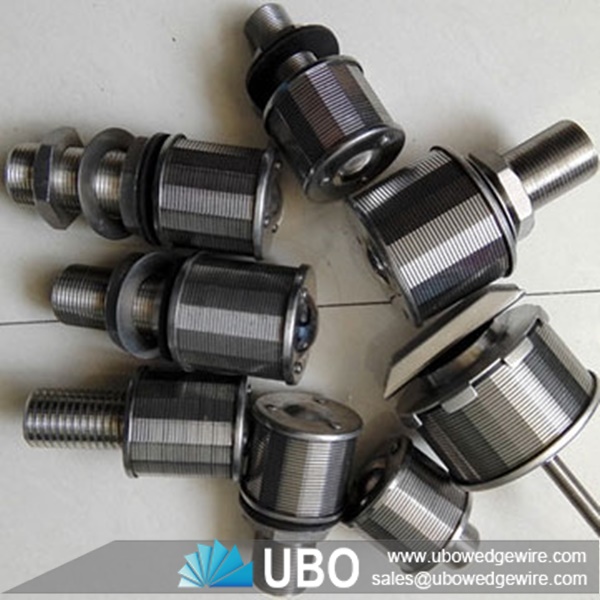

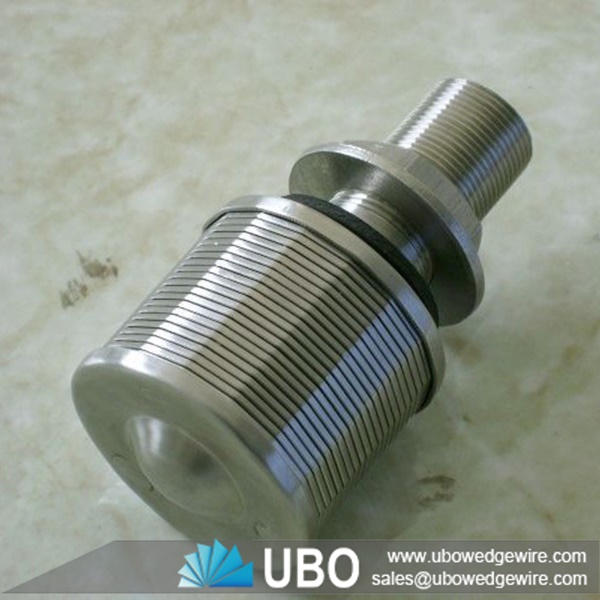

Water filter nozzle screen as the important parts used in the water treatment equipment for power plant,waste water processes, the Vee shape wire are stainless steel AISI 316L.Slot size from 0.2 to 0.25mm.

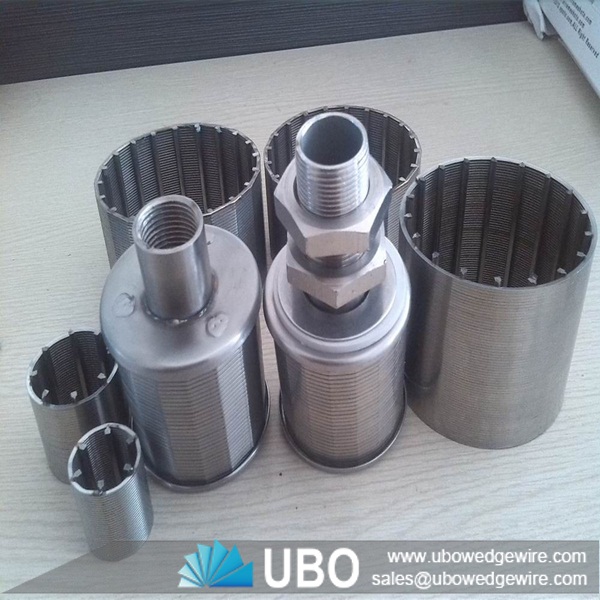

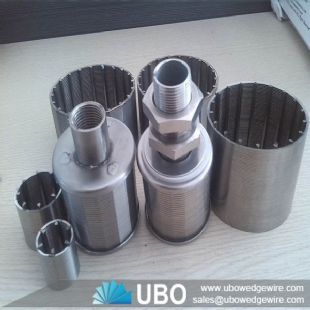

We can manufacture single wedge wire screen nozzle,double wedge wire nozzle,also used in the lon exchanger.
Characteristic of Water filter nozzle screen for filtration
-- Great flow area
-- Long service time
-- Good pressure resistance
Features of Water filter nozzle screen for filtration
Reduced costs, since wedge wire screens have a very long life.
Greater resistance to stresses of different pressure and temperature.
Maximum effective flow area & operating efficiency is maintained
Costly downtime for cleaning plugged screens is minimize.
Usages of Water filter nozzle screen for filtration
Screen nozzle can be used for liquid/solid or gas/solid separation, or media retention (sand, catalyst, resin, ....).The nozzles are mounted on a support plate. The dimensions and the distribution of the nozzles on the support plate can be altered to obtain an optimized flow distribution.
Specifications of Water filter nozzle screen for filtration:
D | L | L1 | Slot Size | d | Flow Area mm2 |
45 | 98 | 34 | 0.2-0.25 | M20 | 380-493 |
45 | 100 | 44 | 0.2-0.25 | M24 | 551-690 |
53 | 100 | 34 | 0.2-0.25 | M24 | 453-597 |
53 | 100 | 44 | 0.2-0.25 | M27 | 680-710 |
53 | 105 | 50 | 0.2-0.25 | M32 | 800-920 |
57 | 115 | 34 | 0.2-0.25 | M30 | 560-670 |
57 | 120 | 55 | 0.2-0.25 | M32 | 780-905 |
60 | 120 | 55 | 0.2-0.25 | G1" | 905-1100 |
82 | 130 | 50 | 0.2-0.25 | M33 | 1170-1280 |
108 | 200 | 100 | 0.2-0.25 | G2" | 3050-4600 |
