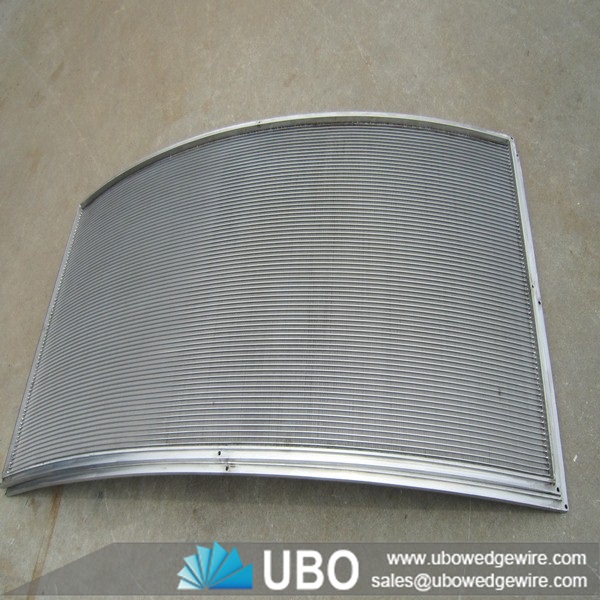

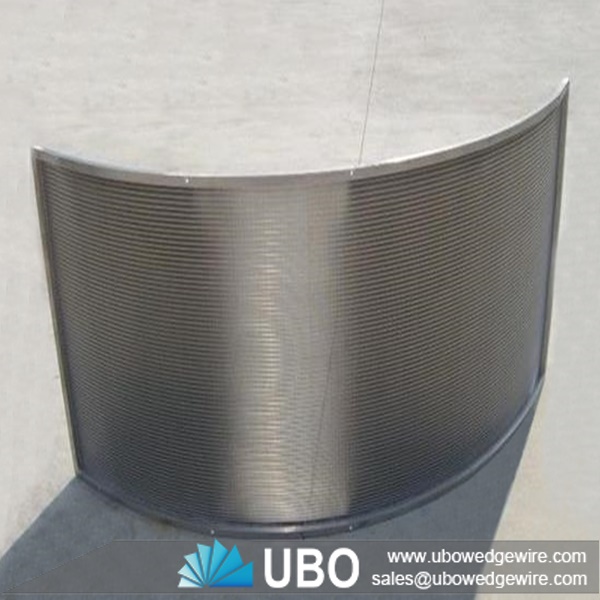

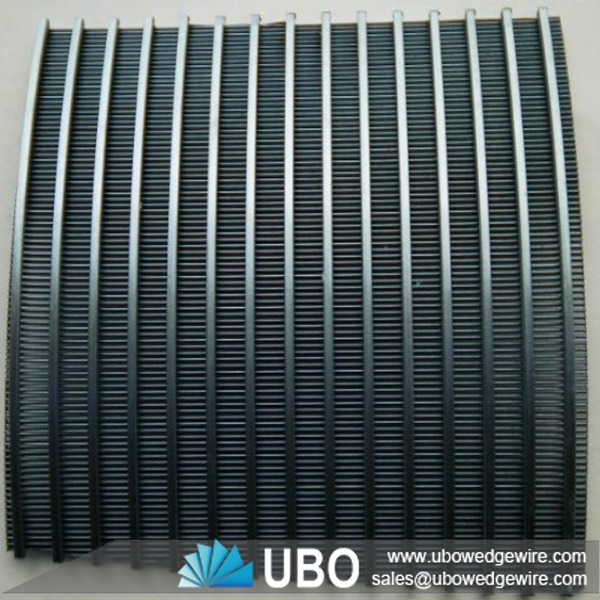

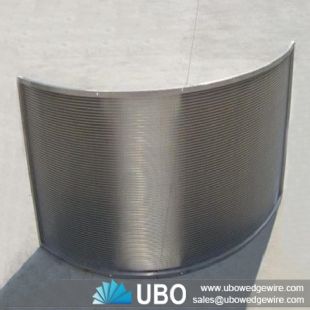

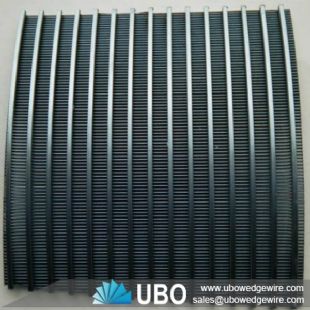

Wedge Wire 304 Curve Screen for Water Filtration

More Views

Wedge Wire 304 Curve Screen for Water FiltrationWedge Wire 304 Curve Screen for Water FiltrationWedge Wire 304 Curve Screen for Water Filtration

Wedge Wire 304 Curve Screen for Water Filtration

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge Wire 304 Curve Screen for Water Filtration

Wedge Wire 304 Curve Screens are used in a wide variety of processes across several industry sectors. We use state-of-the-art manufacturing techniques that place our products at the cutting edge of wedge wire screen construction. Stainless steel wedge wire screen can be designed and manufactured according to customer specifications and come in a wide range of grades - from fine gap screens for small particle sizes to heavy duty screens for heavy load applications.

Wedge Wire 304 Curve Screen for Water Filtration

Application of Wedge Wire 304 Curve Screen for Water Filtration

Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification

Characteristic of Wedge Wire 304 Curve Screen for Water Filtration

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .

Wedge Wire 304 Curve Screen for Water Filtration

The specifications of the Wedge Wire 304 Curve Screen for Water Filtration:

Wedge Wire 304 Curve Screen for Water Filtration



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

15º  30º   60º  120º and as your special request

The Packaging and Transportation of the Wedge Wire 304 Curve Screen for Water Filtration:

Wedge Wire 304 Curve Screen for Water Filtration
