SS Cylindrical Screen Basket for water booster pump
Category: | Wedge Wire Application |
---|---|
Material: | Stainless steel 302,304,304L,316,316L |
Properties: | Screw Press Screen |
Application: | the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of SS Cylindrical Screen Basket for water booster pump

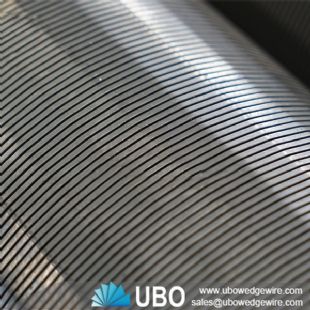

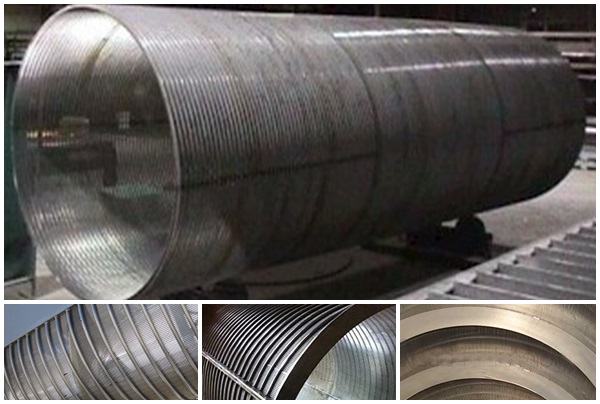

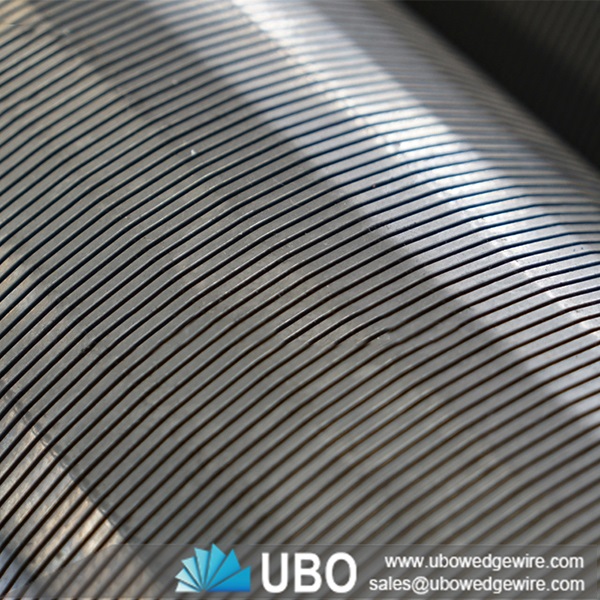

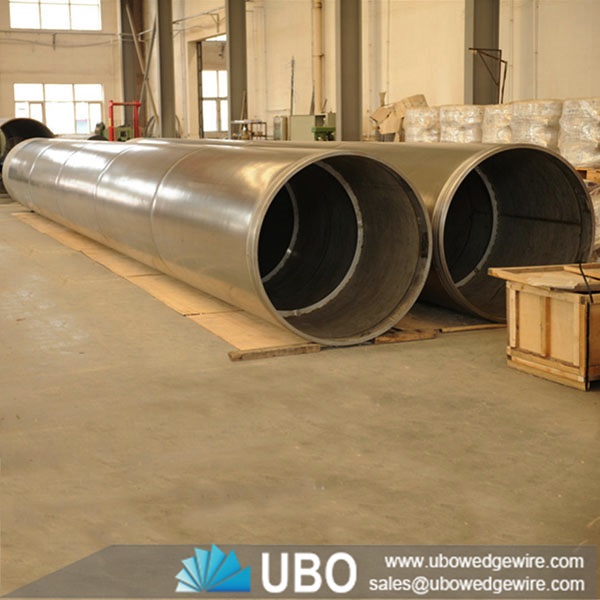

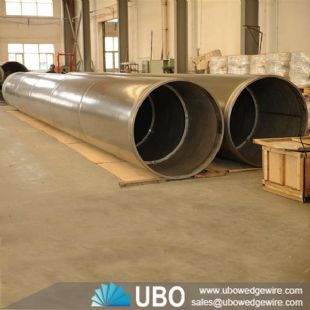

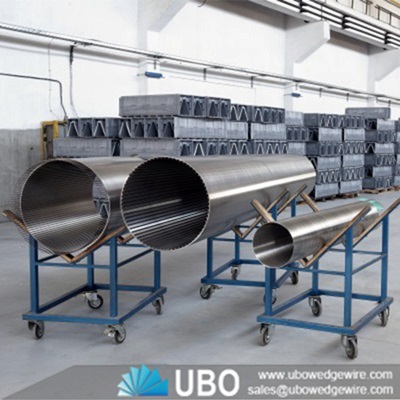

Wedge wire screen cylinders can be produced in almost unlimited height and diameter with the wire running circumficial or long-slot rolled to the I.D. or the O.D. of the cylinder. These wedge wire cylinder screens can be manufactured for stationary/static processing or can be driven on trunnions for a rotating effect on your materials.
Usages for SS Cylindrical Screen Basket for water booster pump:
The wedge wire screen or strainer is a kind of filtered water tubing with the perforation. It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, also used in the petroleum industry as fittings for the petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.
Characteristic for SS Cylindrical Screen Basket for water booster pump:
1) Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.
2) Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.
3) Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.
4) Low operational costs: Large open area with an effective flow, high yield and a low pressure drop.
5) Long life: Welded at each intersection creating a strong and durable screen.
6) Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.
7) Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.
Specifications of SS Cylindrical Screen Basket for water booster pump:
Outside Diameter
|
Profile wire
|
Rod wire
|
Rod quantity
|
Slot size
|
Length
|
||
DN
|
Inch
|
mm
|
mm
|
mm
|
|
mm
|
mm
|
20
|
3/4
|
26.9
|
1.5*2
|
2*3
|
12
|
0.1~0.25
|
45~3000 |
25
|
1
|
33.7
|
1.5*2
|
2*3
|
14
|
0.1~0.25
|
45~3000 |
32
|
1-1/4
|
42.4
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000 |
40
|
1-1/2
|
48.3
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000 |
50
|
2
|
60.3
|
1.5*2
|
2*3
|
18
|
0.1~0.5
|
45~3000 |
65
|
2-1/23
|
76.1
|
1.5*2
|
2*3
|
20
|
0.1~0.5
|
45~3000 |
80
|
3
|
88.9
|
1.8*2.5
|
2*3
|
24
|
0.1~0.5
|
1000~6000 |
100
|
4
|
114.3
|
1.8*2.5
|
2*3
|
30
|
0.5~2
|
1000~6000 |
125
|
5
|
139.7
|
2.3*2.7
|
2*3
|
36
|
0.5~2
|
1000~6000 |
150
|
6
|
168.3
|
2.3*2.7
|
3*5
|
44
|
0.5~2
|
1000~6000 |
200
|
8
|
219.1
|
3.3*3.5
|
3*4.7
|
56
|
0.5~2
|
1000~6000 |
250
|
10
|
273
|
3.3*3.5
|
4*6
|
66
|
0.5~2
|
1000~6000 |
300
|
12
|
323.9
|
3.3*4.7
|
4*6
|
72
|
0.5~2
|
1000~6000 |
350
|
14
|
355.6
|
3.7*5
|
4*6
|
80
|
0.5~2
|
1000~6000 |
400
|
16
|
406.4
|
1.5*2
|
2*3
|
94
|
0.1*2
|
1000~6000 |
450
|
18
|
457
|
2*3
|
4*5
|
112
|
0.1*2
|
500~400 |
500
|
20
|
508
|
2*3
|
4*5
|
124
|
0.1*2
|
500~400 |
550
|
22
|
559
|
2*3
|
4*5
|
140
|
0.1*2
|
500~400 |
600
|
24
|
610
|
2*3
|
4*5
|
156
|
0.1*2
|
500~400 |
Siot:0.1mm~2mm Tolerance:0.05 |
