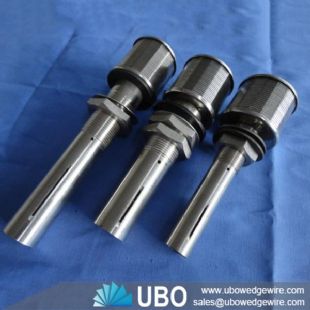

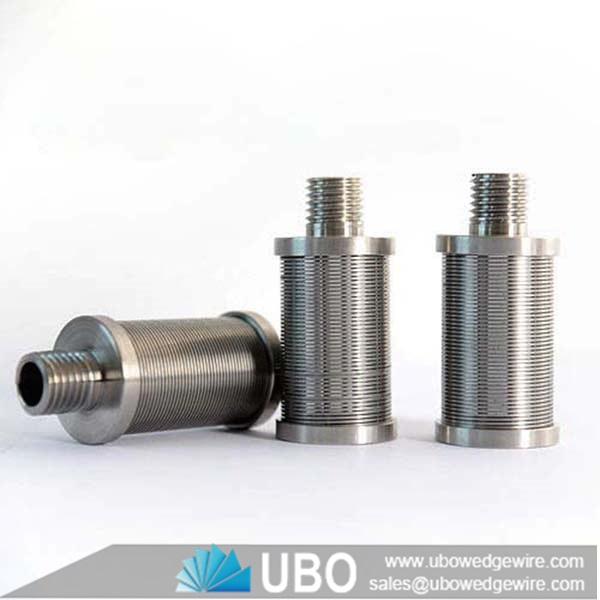

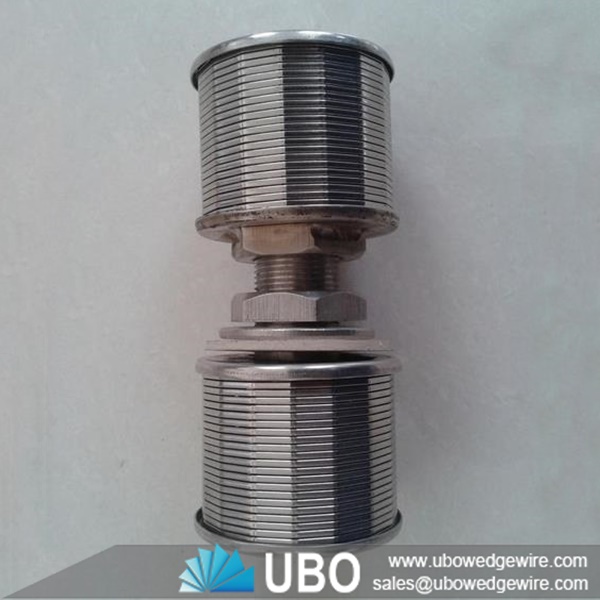

Double-headed pipe nozzles strainer

More Views

Double-headed pipe nozzles strainerDouble-headed pipe nozzles strainerDouble-headed pipe nozzles strainer

Double-headed pipe nozzles strainer

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Filter Nozzle
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Double-headed pipe nozzles strainer

   Stainless steel wedge wire 316 water screen filter nozzle is manufactured by the V-shaped wire through a special welding technology welded on the ribs(vertical wire or support wire). It has high welding strength, uniform gap, strong corrosion resistance, big effective filtration area, high penetration efficiency, simple structure, etc.

Application for Double-headed pipe nozzles strainer:

Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

Advantages for Double-headed pipe nozzles strainer:

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Technology for Double-headed pipe nozzles strainer:

Manfre introduce advanced korea technology , the construction method used is the latest, ultra clean TiG and plasma welding system. This method of construction guarantees cartridge integrity, eliminating the risk of bypass and the presence of extractables derived from any bonding agents.

Double-headed pipe nozzles strainer

The specifications of the Double-headed pipe nozzles strainer:

Double-headed pipe nozzles strainer



Catalogue Item

Slots  mm

Thread

ΦAmm

Thread length  L1mm
Shaft  L2 mm

L3 mm

Type B

0.05, 0.1, 0.2, 0.3 , 0.5, 1.0

1¼"WW

32

25,30,45

80,110,

40,200,

250,300,

350,…

45,50,55,

 60,70,80

M30

30*3.5

30

G 3/4"

26.5

20,45,+5+5...

1"WW

25.4

20,45,+5+5...

M24

24

20,45,+5+5..

The Packaging and Transportation of the Double-headed pipe nozzles strainer:

Double-headed pipe nozzles strainer
