Wedge wire arc screen curved panel for food processing & wastewater treatment

More Views

Wedge wire arc screen curved panel for food processing & wastewater treatmentWedge wire arc screen curved panel for food processing & wastewater treatmentWedge wire arc screen curved panel for food processing & wastewater treatment

Wedge wire arc screen curved panel for food processing & wastewater treatment

Category:Sieve Bend Screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge wire arc screen curved panel for food processing & wastewater treatment

Sieve Bend Screens (Sidehill, DSM, Parabolic) are custom designed to separate solids from liquids in various applications including food processing, pulp and paper, waste water cleanup.

surface water intakes, corn wet milling, coal preparation, and gold recovery.The gravity-fed Sieve Bend design provides for effective dewatering and allows the solids to slide off the end of the screen surface.

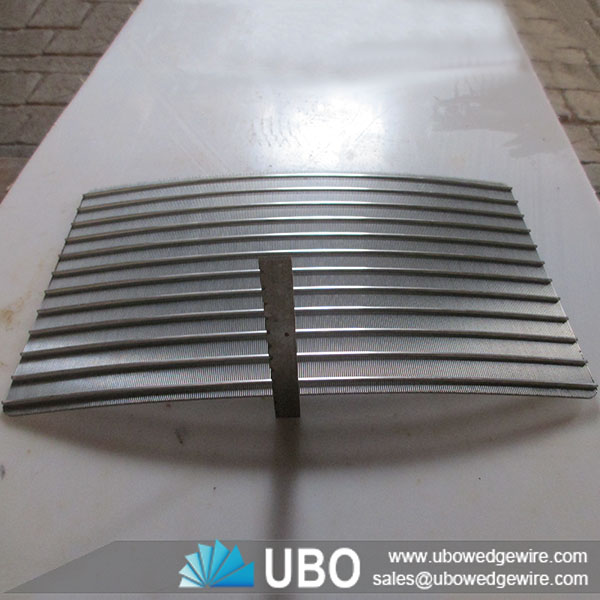

Wedge wire arc screen curved panel for food processing & wastewater treatment

Application of Wedge wire arc screen curved panel for food processing & wastewater treatment

Wedge wire sieves are used in mineral processing plants and food processing plants for sizing and washing. These industrial profile wire screens are also used to process corn for ethanol and corn starch, as well as to process sugar, animal waste and fertilizer.

Advantages of Wedge wire arc screen curved panel for food processing & wastewater treatment

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

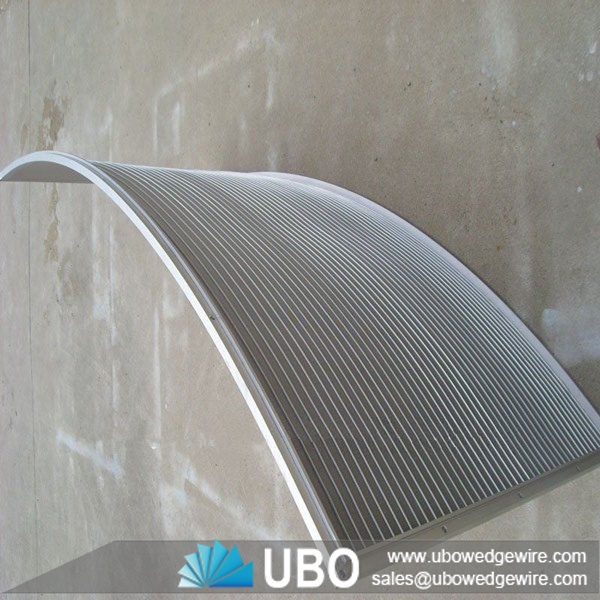

Wedge wire arc screen curved panel for food processing & wastewater treatment

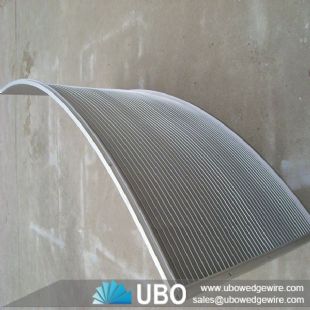

Wedge wire arc screen curved panel for food processing & wastewater treatment

The specifications of the Wedge wire arc screen curved panel for food processing & wastewater treatment:



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

1.5 meter

Width

from 25mm to 1200mm.

Radian

120º

End connection

Plain beveled ends, flanged or threaded couplings

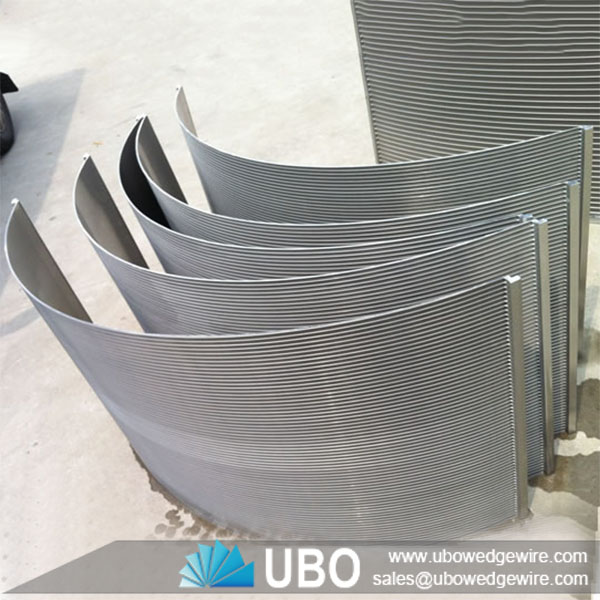

Wedge wire arc screen curved panel for food processing & wastewater treatment

The Packaging and Transportation of the Wedge wire arc screen curved panel for food processing & wastewater treatment:

Wedge wire arc screen curved panel for food processing & wastewater treatment
