Stainless Steel Wedge Wire Wedge Wire Wrapped Resin Trap
Category: | Resin Traps |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedeg wire screen cylinder |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless Steel Wedge Wire Wedge Wire Wrapped Resin Trap

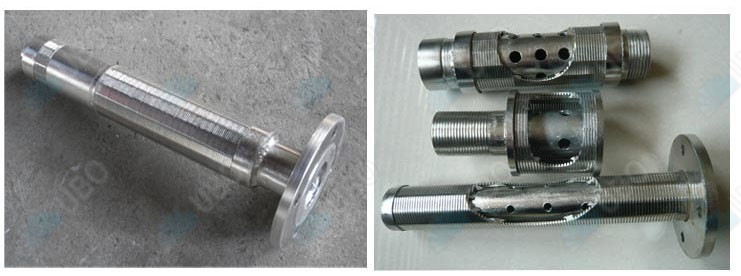

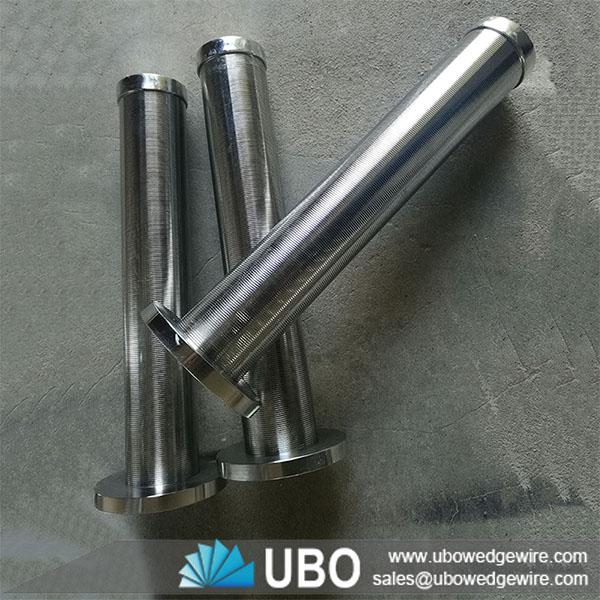

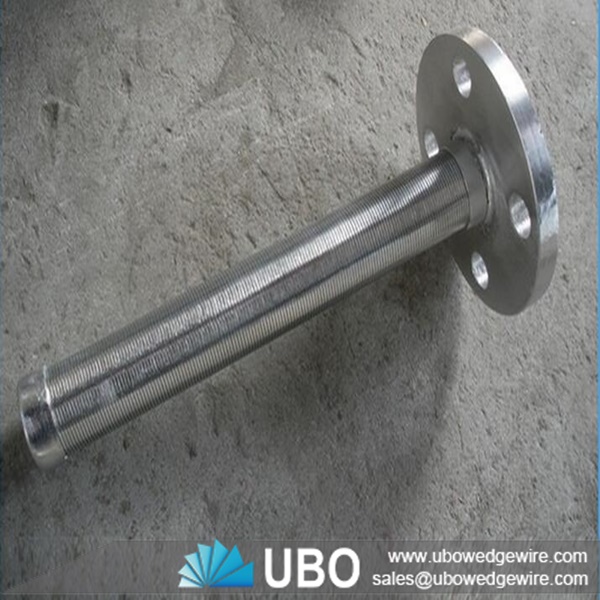

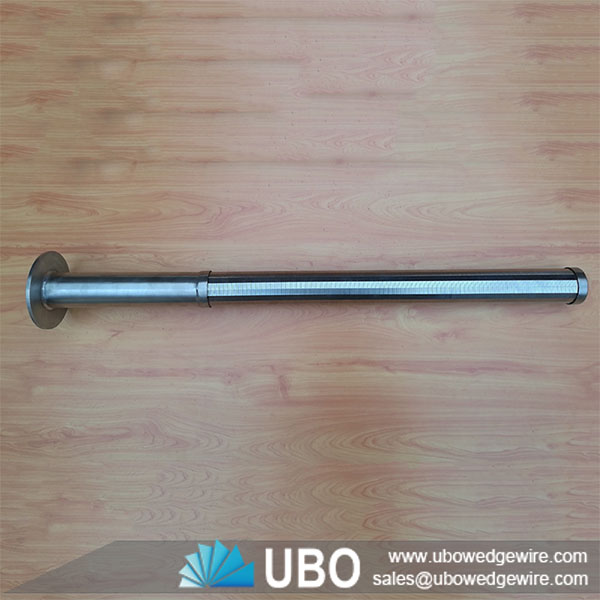

Stainless steel Wedge Wire wedge wire wrapped resin trap screen with flange are made of stainless steel wedge wire screen. Filter rating is from 30 to 80 microns. Wedge wire resin trap is welded onto rods with stainless steel wedge wire at every contact point. They are classified into filter sheet, filter basket and filter elements. They have such characteristics as good strength, high ridity, resistance to abrasion and corrosion, even gap, good in filtration and fluidity, easy to clean and back wash.
Application of Stainless Steel Wedge Wire Wedge Wire Wrapped Resin Trap
Wedge wire screen filter elements are used in sieving of petroleum, chemical industy, pharmaceutics, food and beverage, metallurgy and coal, also can be used in filtration of water treatment.
Features of Stainless Steel Wedge Wire Wedge Wire Wrapped Resin Trap
1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2) Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water levels down, thus to save energy consumption.
3) Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwaters entering into the screen much slower than any other filtration apparatus, which will avoid sands entering into.
Specifications of Stainless Steel Wedge Wire Wedge Wire Wrapped Resin Trap:
Specification (wedge wire):
|
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
|
Specification (support rod):
|
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
|
Note: other specifications available as per request
|
|
Slot size
|
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
|
Material:
|
galvanized low carton (LCG), stainless steel (304,316 etc.)
|
Length
|
up to 6 meters.
|
Diameter
|
from 25mm to 1200mm.
|
End connection
|
Plain beveled ends, flanged or threaded couplings
|
