Water filter hub lateral used for tank

More Views

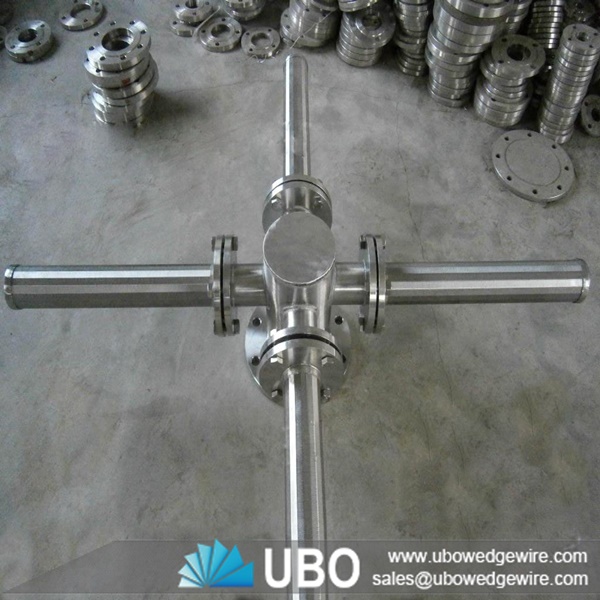

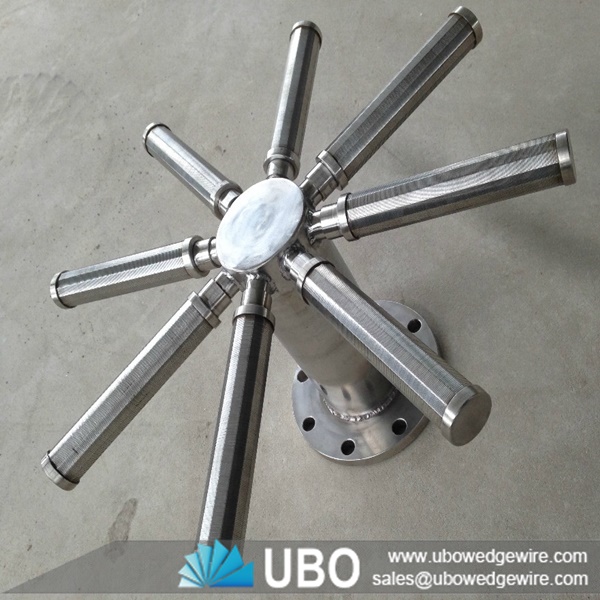

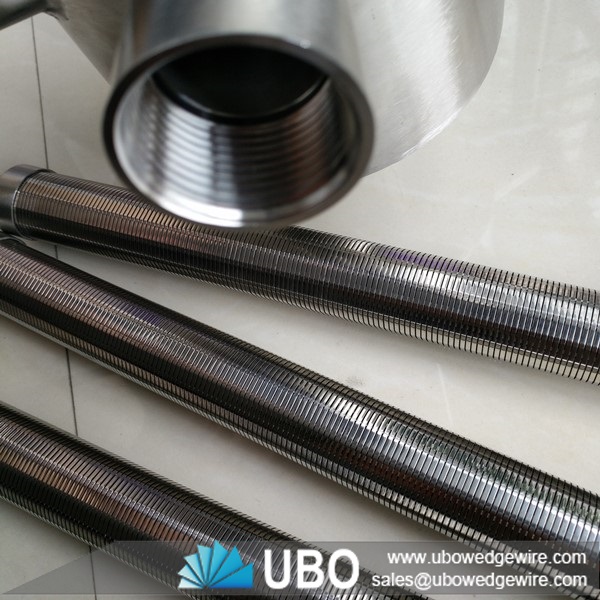

Water filter hub lateral used for tankWater filter hub lateral used for tankWater filter hub lateral used for tank

Water filter hub lateral used for tank

Category:Profile screen laterals
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:hub lateral
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Water filter hub lateral used for tank

Water filter hub lateral as an efficient collector, the screen lateral is available in several sizes, with various slots and end fittings. Most commonly, the screen lateral is provided with a solid cap on one end and a threaded pipe connection on the other end.

Water filter hub lateral can be designed for disc head vessels enabling the system to collect completely to the bottom of the vessel. Header laterals design is also available for flat bottom vessel distributor or collector applications All systems are designed for effective liquid or solid retention in a wide range of applications including ion exchangers, clay and sand filtration applications, carbon towers and power plants with water systems.

details of Water filter hub lateral used for tank

Features for Water filter hub lateral used for tank


(1)Water distributor used for water treatment,such as RO plant,Softener system or water filter;
(2) High chemical resistance and pressure operation;
(3) Made of ABS synthetic resin;
(4) Max diameter of the matched tank: 400mm;
(5) Tank working pressure : 100/150PSI;
(6) Working temperature : 45C

Water filter hub lateral used for tank

Water filter hub lateral used for tank

The specifications of the Water filter hub lateral used for tank:

Water filter hub lateral used for tank

Material

SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205,  2207, Duplex, Hastelloy, etc

Normal Lateral Tube QTY (PCS)

4, 6, 8, 12,16, etc. According to request, actual flow rating, and application.

Lateral OD Range (mm)

25 to 80mm, customized

Normal Hub (mm)

108, 133, 219, Customized

Hub and lateral connector types

Thread, Flange

Diameter Range(mm)

According to the tank diameter. (Usually 200mm shorter than tank diameter)

Slot Range(mm)

Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.

Slot according to request.

Wedge Wire(mm)

1x2

1.5x2

2x3

Support Rod (mm)

1.5x2.5

2x3

1.8x2.5

2x3

2x3

2x4



Note

Customized According To Requirement

The Packaging and Transportation of the Water filter hub lateral used for tank:

transportation of Water filter hub lateral used for tank
