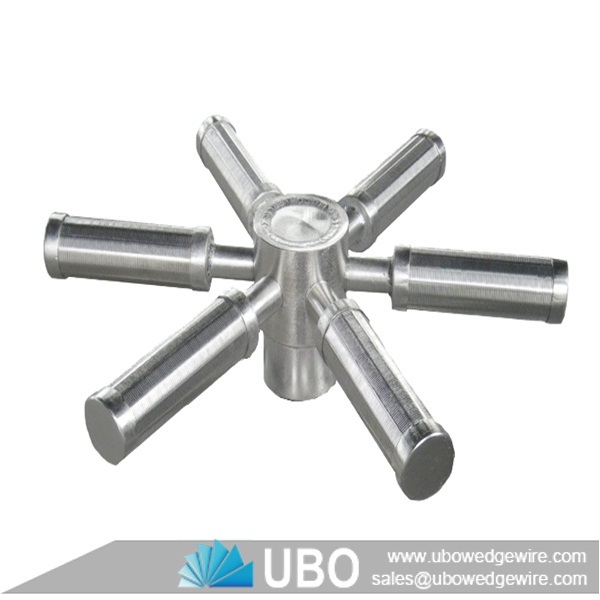

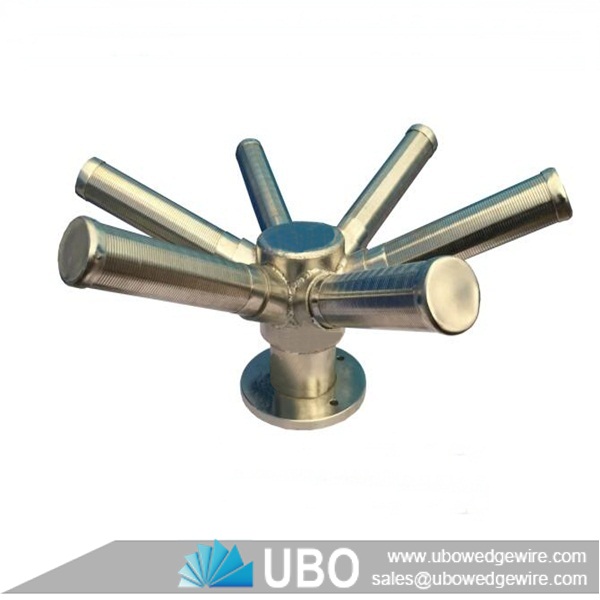

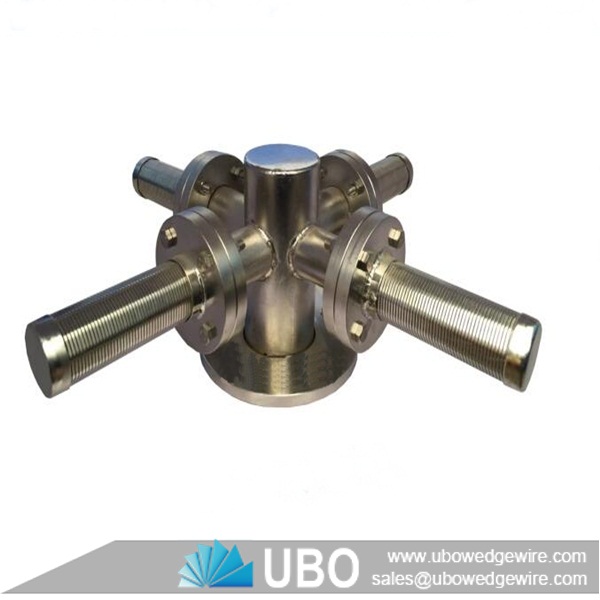

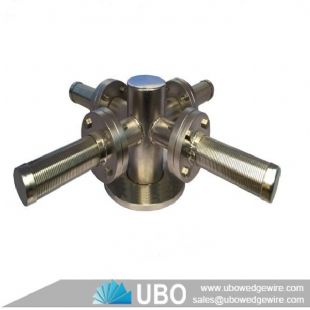

Wedge wire central hub laterals water distributor used for tank

More Views

Wedge wire central hub laterals water distributor used for tankWedge wire central hub laterals water distributor used for tankWedge wire central hub laterals water distributor used for tank

Wedge wire central hub laterals water distributor used for tank

Category:Profile screen laterals
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:hub lateral
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge wire central hub laterals water distributor used for tank

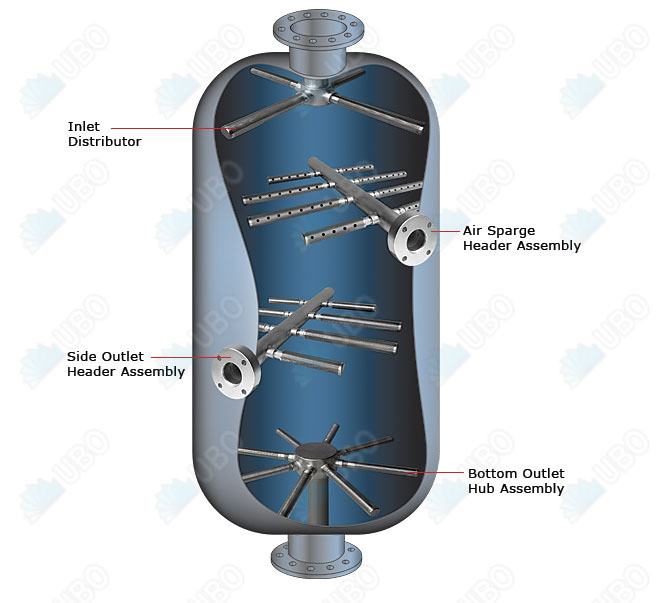

Wedge wire central hub laterals water distributor is mainly composed of mother pipe (center) of several wire pipe, via adjusting the number of size, type and distribution manifold, we can achieve excellent collection and distribution process. Water distribution device which can realize uniform and effective allocation and collection need to deal with liquid or gas.

The Wedge wire central hub laterals water distributor is designed for industrial or commercial water treatment and wastewater treatment systems. And it's suitable for diameters from 8 "to 96" pressure vessel. It is made of high quality ABS synthetic resin with sufficient strength. The unique design ensures the entire uniformity of the flow velocity distribution in presure vessel. What's more, the special design avoid the occurrence of short circuit. By the way, the rational design of opening the slit also ensures a minimum pressure requirements.

Wedge wire central hub laterals water distributor is mainly composed of mother pipe (center) of several wire pipe, via adjusting the number of size, type and distribution manifold, we can achieve excellent collection and distribution process. Water distribution device which can realize uniform and effective allocation and collection need to deal with liquid or gas.

Wedge wire central hub laterals water distributor used for tank

Application of Wedge wire central hub laterals water distributor used for tank

The water distributor are widely used in ion exchange equipment, medium filter and sand filter filter, the resin tank, silicate and chemical industry, water treatment industry.

Feature of Wedge wire central hub laterals water distributor used for tank

With the advantage of the wrap wire screens pipe,large flow area, uniform water distribution, high mechanical strength,temperature resistance, pressure resistance, aging resistance,corrosion resistance have been greatly improved. Even if the branch pipe bending occurs, the resin still can’t flow out.Stainless steel wire slot size can be designed according to the resin size.

Wedge wire central hub laterals water distributor used for tank

The specifications of the Wedge wire central hub laterals water distributor used for tank:

Material

SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205,  2207, Duplex, Hastelloy, etc

Normal Lateral Tube QTY (PCS)

4, 6, 8, 12,16, etc. According to request, actual flow rating, and application.

Lateral OD Range (mm)

25 to 80mm, customized

Normal Hub (mm)

108, 133, 219, Customized

Hub and lateral connector types

Thread, Flange

Diameter Range(mm)

According to the tank diameter. (Usually 200mm shorter than tank diameter)

Slot Range(mm)

Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.

Slot according to request.

Wedge Wire(mm)

1x2

1.5x2

2x3

Support Rod (mm)

1.5x2.5

2x3

1.8x2.5

2x3

2x3

2x4



Note

Customized According To Requirement

The Packaging and Transportation of the Wedge wire central hub laterals water distributor used for tank:

Wedge wire central hub laterals water distributor
