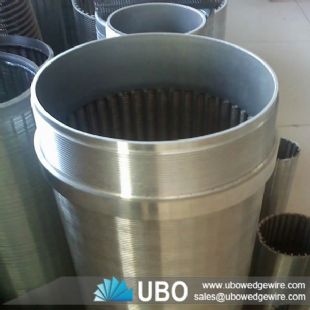

wedge wire water intake screen for filtration
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen |
Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of wedge wire water intake screen for filtration

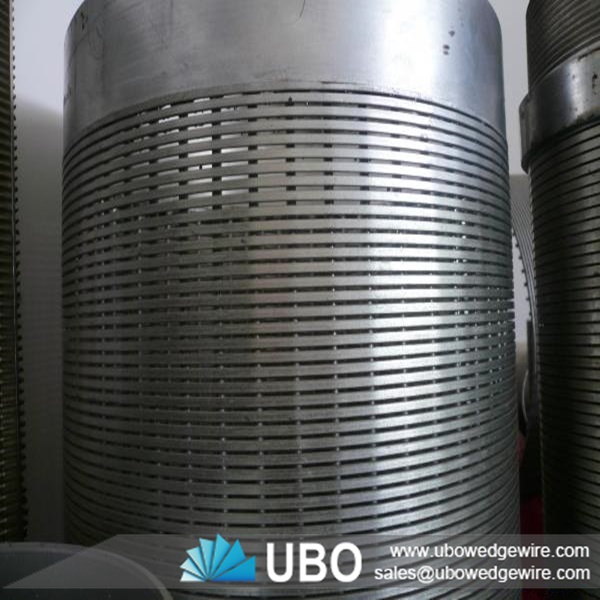

The wedge wire water intake screen can be designed with slot openings and wires running on the outside surface of the screen cylinder or they can be positioned axially on the inside of the cylinder.
The warp is triangular wire (V-shaped wire). The raw water intake screen have a robust structure and large open area, as well as accurate slot dimension. At the same time, wedge wire water intake screen have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.
Features of wedge wire water intake screen for filtration
1).adoption of the wedged wires made a V profile slot. This design ensures the fluent of water filteration and more effective.
2).wedged wires are spirally wound around a cage of longitudinal support rods in succession which formed high-density uniformed slots and avoid clogging. So that the high production efficiency and long life service of the well are gaurenteed.
3).arrangement of the longitudinal support rods and the successive slots provide higher compressive property
Advantages of wedge wire water intake screen for filtration
•Optimum quality (pre-filtered water)
•Low running cost
•Low maintenance
•Avoids biological activity (algae, plankton, etc)
•Easily cleanable
•Environmentaly friendly, avoiding negative impact
•Constant feed (not decreasing over time)
•Flexibility to adjust the water flow
We can also produce as per your request.
Application of wedge wire water intake screen for filtration
Thewedge wire water intake screens are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water,oil or gas filter and other filtration equipment.
Specifications of wedge wire water intake screen for filtration:
Specification (wedge wire): |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm |
Note: other specifications available as per request |
|
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length |
up to 6 meters. |
Width |
from 25mm to 1200mm. |
Radian |
15 |
End connection |
Plain beveled ends, flanged or threaded couplings |
