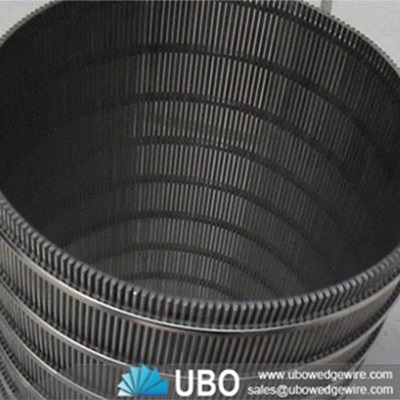

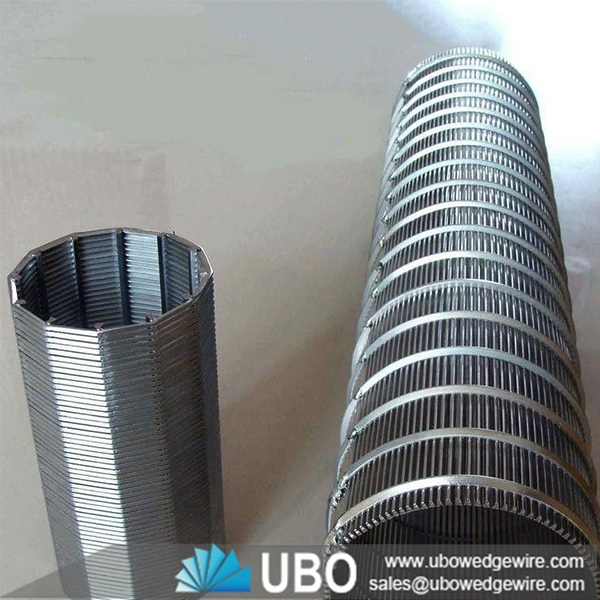

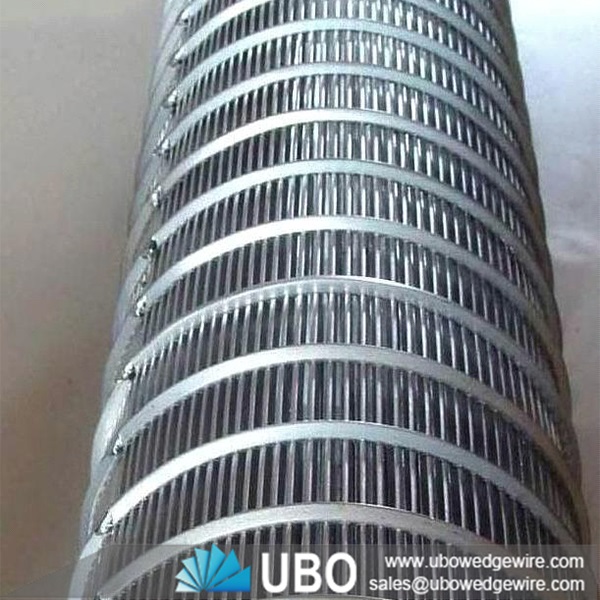

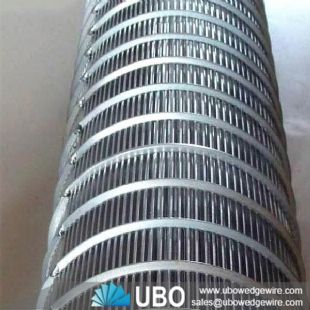

water well screen with liner tube for oil

More Views

water well screen with liner tube for oilwater well screen with liner tube for oilwater well screen with liner tube for oil

water well screen with liner tube for oil

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:stainless steel wire mesh
Application:the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of water well screen with liner tube for oil

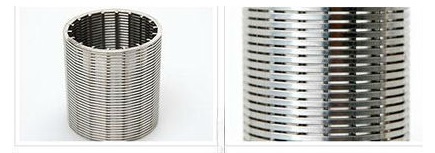

Wedge wire screen a rod-based wire wrapped screen features the largest open area compared with either slotted liner or pipe-based screen. Versatile wedge wire screens can be found in a great number of well applications, such as rude oil production, natural gas production, vessel internals and ground water exploration and so on.

water well screen with liner tube for oil

Application for water well screen with liner tube for oil:

The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Features for water well screen with liner tube for oil:

1) Screens with high open area are more suitable for the construction of high quality water wells, oil wells and gas wells.

2) Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.

3) Reduce the abrasion of the pump

Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.

4) Extend the life span of wells

Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

Features for water well screen with liner tube for oil:

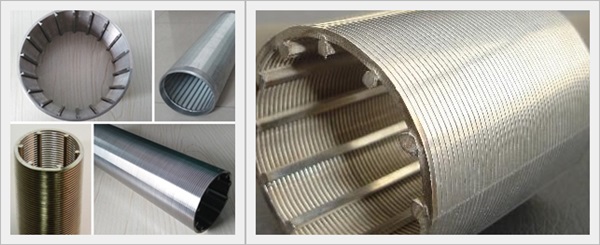

The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

water well screen with liner tube for oil

Specifications of water well screen with liner tube for oil:

water well screen with liner tube for oil


Screen Size
ID
OD
Female thread dismeter
in
mm
in
mm
in
mm
in
mm
2
51
2
51
25/8
67
23/4
70
3
76
3
76
35/8
92
33/4
95
4
102
4
102
45/8
117
43/4
121
5
127
5
127
55/8
143
53/4
146
6
152
6
152
65/8
168
7
178
8
203
8
203
85/8
219
91/4
235
10
254
10
254
103/4
273
113/8
289
12
305
12
305
123/4
324
133/8
340
14
356
13 1/8
333
14
356
-
-
16
406
15
381
16
406
-
-
20
508
18 3/5
476
20
508
-
-

Packaging and Transportation of water well screen with liner tube for oil:

Packing:

With a plastic film winding and then packed in wooden cases, boxes lined with waterproof material.
