Continuous Slot Wedge Wire Screen for Drilling Equipment

More Views

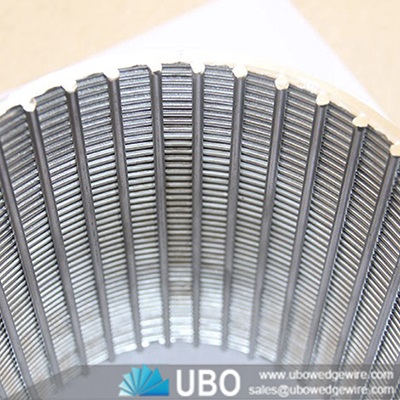

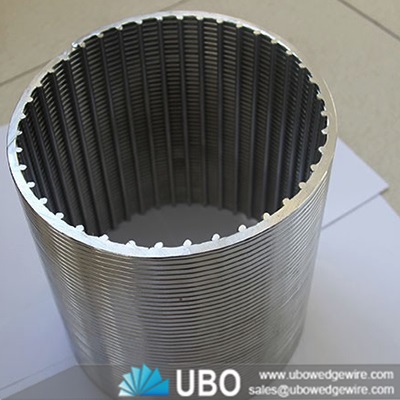

Continuous Slot Wedge Wire Screen for Drilling EquipmentContinuous Slot Wedge Wire Screen for Drilling EquipmentContinuous Slot Wedge Wire Screen for Drilling Equipment

Continuous Slot Wedge Wire Screen for Drilling Equipment

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Stainless Steel Pipe
Application:Water Well & Oil well;inside-out flow;water and oil reservation;Oil pipe;Sand and solide pipe

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Continuous Slot Wedge Wire Screen for Drilling Equipment

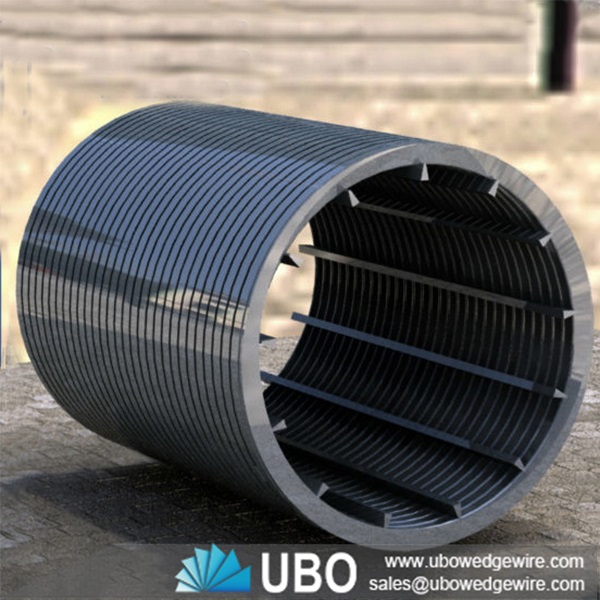

Johnson Screen are made from V shaped profile wire , which is spirally wound around a cage of longitudinal support rods. Each intersection point of these wires is fusion welded, with an unique welding process. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. The pitch of winding gives different spacing between two adjacent turns of wire.

Application for Continuous Slot Wedge Wire Screen Pipe for Drilling Equipment:

Deep Well;Water Well & Oil well;inside-out flow;water and oil reservation;Oil pipe;Sand and solide pipe;Oil and gas filtration

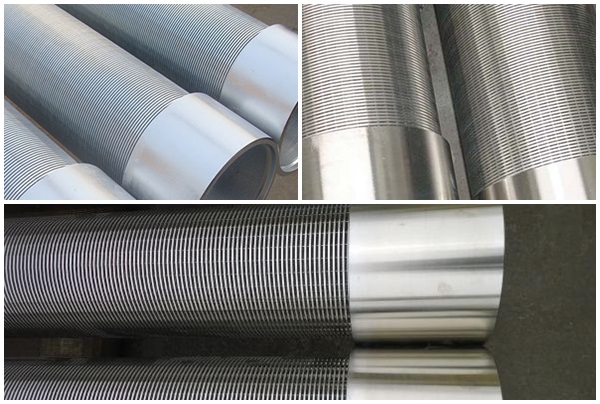

Continuous Slot Wedge Wire screen for drilling equipment

Advantages for Continuous Slot Wedge Wire Screen Pipe for Drilling Equipment:

Johnson screen has a continuous slot opening which significantly increases the available open area , thus providing greater access to the water bearing zone(the aquifer)

Features for Continuous Slot Wedge Wire Screen Pipe for Drilling Equipment:

1) Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2) Low cost operation

Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water levels down, thus to save energy consumption.

3) Reduce the abrasion of the pump

Under the same condition, high open area can make the speed of groundwaters entering into the screen much slower than any other filtration apparatus, which will avoid sands entering into screen because of high pressure, thus reduce the abrasion of the pump.

4) Extend the life span of wells

Comparatively, groundwaters entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

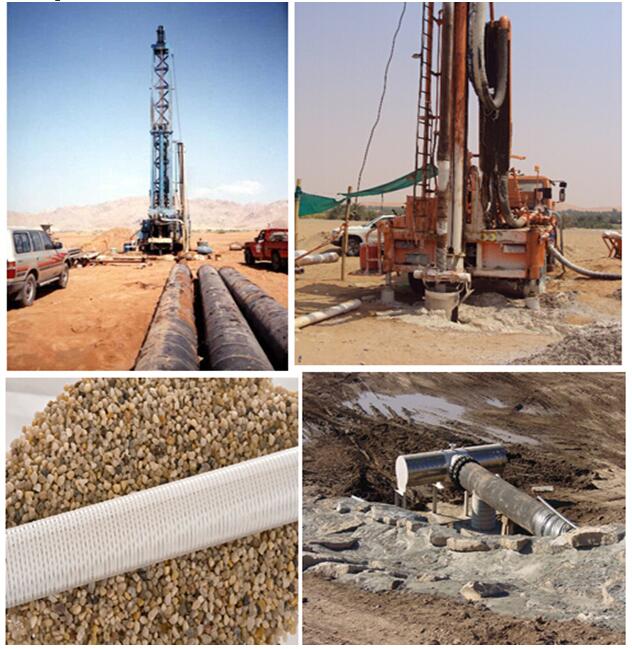

Continuous Slot Wedge Wire screen for drilling equipment

Specifications of Continuous Slot Wedge Wire Screen for Drilling Equipment:

Continuous Slot Wedge Wire screen for drilling equipment

Slot
mm
Opening
%
Weight
Kg/㎡
Slot
mm
Opening
%
Weight
Kg/㎡
Slot
mm
Opening
%
Weight
Kg/㎡
0.25
14.3
22.0
0.25
10.2
25.9
0.25
8.2
30.8
0.30
16.7
21.5
0.30
12.0
25.4
0.30
9.7
30.3
0.35
18.9
21.0
0.35
13.7
24.9
0.35
11.1
29.8
0.40
21.1
20.5
0.40
15.4
24.4
0.40
12.5
29.3
0.50
25.0
19.5
0.50
18.5
23.9
0.50
15.2
28.8
0.75
33.3
18.1
0.75
25.4
22.0
0.75
21.1
26.9
1.00
40.0
16.1
1.00
31.3
20.5
1.00
26.3
25.4
1.25
45.5
15.1
1.25
30.2
19.5
1.25
30.9
23.9
1.50
50.0
14.2
1.50
40.5
18.1
1.50
34.9
23.0
2.00
57.1
12.2
2.00
47.6
16.6
2.00
41.7
21.0
6.00
-
-
6.00
73.2
10.3
6.00
68.2
13.2
8.00
-
-
8.00
-
-
8.00
74.1
11.2

Packaging and Transportation of Continuous Slot Wedge Wire Screen for Drilling Equipment:

Continuous Slot Wedge Wire screen for drilling equipment
