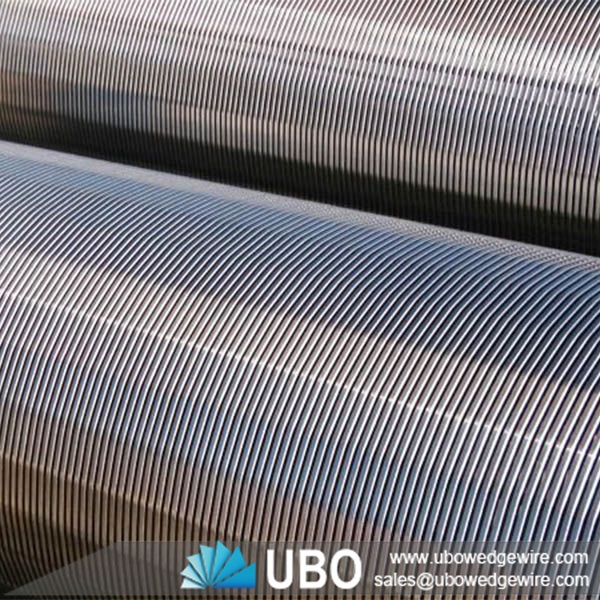

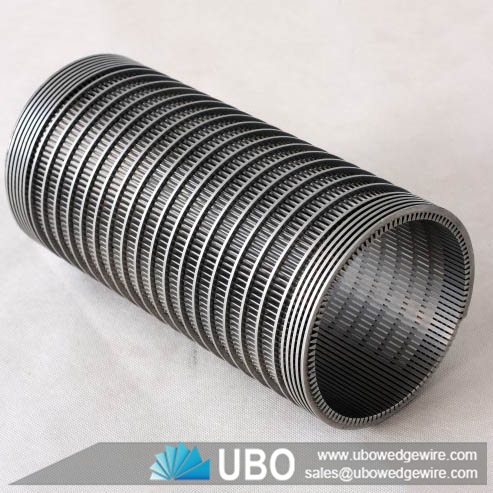

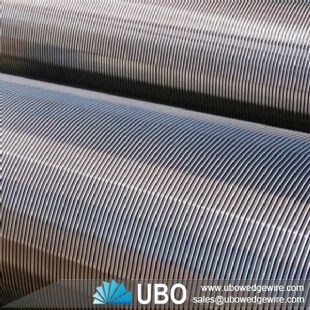

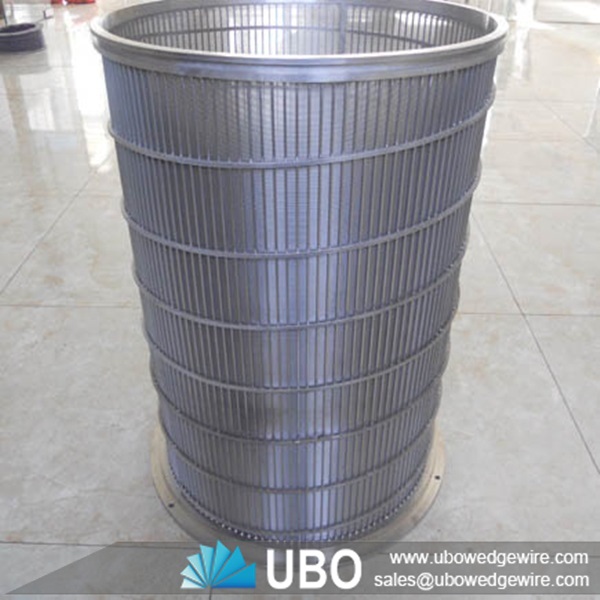

Stainless Steel Wire Cylindrical Strainers

More Views

Stainless Steel Wire Cylindrical StrainersStainless Steel Wire Cylindrical StrainersStainless Steel Wire Cylindrical Strainers

Stainless Steel Wire Cylindrical Strainers

Category:Wedge Wire Pipe&Cylinder
Material:304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel wire
Properties:Wedge Wire Cylinder
Application:sugar juice filtration, waste water treatment, crude oil and natural gas production

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless Steel Wire Cylindrical Strainers

    Cylinder wedge wire screens are available for both externally-fed (flow from outside to inside) and internally feed applications. Externally-fed cylinders can be manufactured without requiring a weld seam up to about 36” OD, larger diameters must be fabricated. Internally-fed cylinders are fabricated to customer’s requirements.

Application for Stainless Steel Wire Cylindrical Strainers:

Widely used in engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.

Feature for Stainless Steel Wire Cylindrical Strainers:

•Non-clogging surface .
•Large open area .
•Low pressure drop .
•Hydraulic efficiency .
•High flow rates .
•Mechanical strength .
•Abrasion-resistant .
•Easy cleaning .

Characteristics for Stainless Steel Wire Cylindrical Strainers:

1)continuous gaps provide larger aperture ratio
2)Precision gaps dimensions
3)difficult to clog,wear-resistance

Flow direction of Stainless Steel Wire Cylindrical Strainers :

Stainless Steel Wire Cylindrical Strainers

Stainless Steel Wire Cylindrical Strainers

Specifications of Stainless Steel Wire Cylindrical Strainers:

Materials: 304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel wire .
O.D: 1 inch, 3inch, 4inch, 6inch, 8inch, 10inch, 12inch, 14inch,
16inch,18inch, 20inch
the slot:0.1mm-45mm
the wire :2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm
the rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50
The rod can be round wire, triangular wire or trapezoid wire.
The warp is triangular wire (V-shaped wire).
Styles of connection: by welding or by threaded male/female coupling.
Standard length: 1m-5.85m

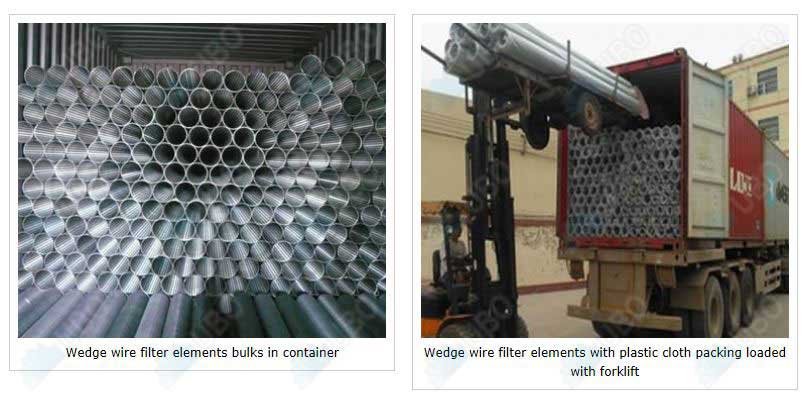

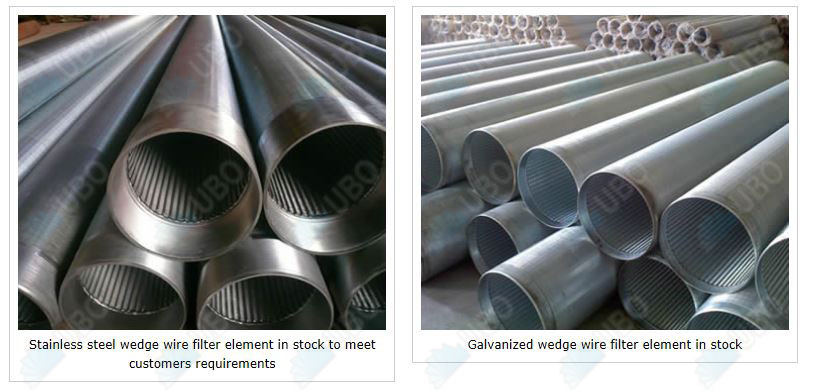

Packaging and Transportation of Stainless Steel Wire Cylindrical Strainers:

Based on the quantity of wedge wire screen resin traps, we will found the most available delivery way for client , Guarantee client receive goods in time .
About the package material : normally we use lignified wood wooden case with water-proof bag, make sure that client see their goods in good quality and complete quantity !

Stainless Steel Wire Cylindrical Strainers

Stainless Steel Wire Cylindrical Strainers

Stainless Steel Wire Cylindrical Strainers
