What is a wedge wire screen

Welcome to Hebei YUBO Filtration Equipment Co.,Ltd.

It is a screen made of an annular wire forming a deep wedge-shaped portion.

A separate wedge line is built into the "panel" by passing a crossbar of the appropriate diameter through the ring. The whole is then clamped and fixed, usually by riveting or by placing the ring nut on the end of the crossbar or by welding.

The wedge wire screen can be provided in a variety of shapes and forms, such as flat, curved screen elbows, tapered baskets, cylinders, discs, and can be one-piece or segmented. For curved, cylindrical and conical screens, in most cases, the crossbar is placed along a circumferential line and the contour extends parallel to the axis.

Sometimes this arrangement is the opposite.


The wedge wire screen provides a unique combination of the most important functions required for maximum screening efficiency.

A. Free customs clearance

The tapered portions of the wire form holes that gradually widen in a downward direction to ensure that material passes quickly through them. The clogging and blinding apertures are reduced to an absolute minimum.

B. Lateral strength

We believe that any form of the mesh can not be thinner than the diameter of the wedge wire, and can be compared with the mechanical strength and working efficiency of the wedge wire.

C. Percentage of a business area

For a given aperture, the percentage of an open area of ​​the wedge mesh is much larger than for conventional screens.

D. Long life

The wedge-shaped wire mesh retains a longer duration than the circular wire mesh because the flat top surface provides a larger area of ​​wear.

Ubo is the wedge wire screen supplier, we can provide all kinds of customed wedge wire products.,welcome contact us if you need.

Who We Are?

YUBO Company is the professional supplier in China. It is always committed to study, design and produce wedge wire screen products for industry filter.Now its products include wedge wire screen panel, filter nozzle, cylinder,basket,pipe, Sieve Bend Screen,Profile Screen Laterals,etc.

What Is wedge wire screen

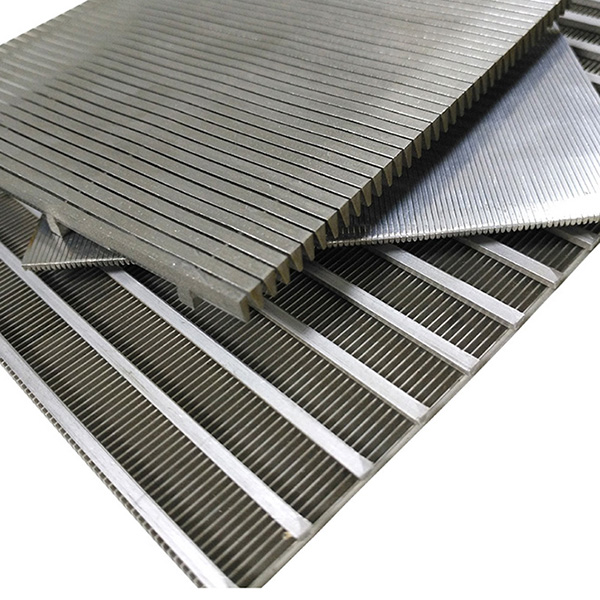

Wedge Wire Screens is a sieve made from looped wires formed into a deep wedge-shaped section. The wedge wire screens can be supplied in various shapes and forms as FLAT PANELS, CURVED SIEVE BENDS, CONICAL BASKETS, CYLINDERS, TROUGHS DISKS either in one one piece or in segments.

our advantages

  • Professtional, we have our Engineering designers
  • We are the factory
  • Quality is our cluture and soul
  • Customized. We produce and design according to your need
  • Low cost and high efficient
