Wedge Wire Filter Nozzle Role in Media Filtration Systems

Welcome to Hebei YUBO Filtration Equipment Co.,Ltd.

In industrial media filtration systems, the filter nozzle is a small but critical component that directly affects filtration efficiency, flow distribution, and media retention. Although filter media such as sand, activated carbon, resin, or anthracite performs the primary filtration function, improper underdrain or collection design can significantly reduce overall system performance.

Wedge Wire Filter Nozzles have become widely used in multimedia filters, ion exchange systems, pressure sand filters, and water treatment vessels because of their high open area, precise slot control, and excellent resistance to clogging.

Their unique V-shaped wire structure helps maintain uniform flow, prevent media loss, and improve backwashing efficiency, making them an essential part of modern filtration system design.

1. The Importance of Filter Nozzles in Media Filtration Systems

A media filtration system relies on several components working together:

• Filter media layer

• Support gravel or underbed structure

• Collection and distribution system

• Filter nozzles

While the media captures suspended particles and impurities, the filter nozzle controls how water enters and exits the media bed.

A poorly designed nozzle system can lead to:

• Uneven flow distribution

• Media migration

• Channeling inside the filter bed

• Reduced filtration efficiency

• Higher pressure loss

Therefore, the performance of the filter nozzle directly influences the stability and operating life of the entire filtration system.

2. How Wedge Wire Filter Nozzles Work

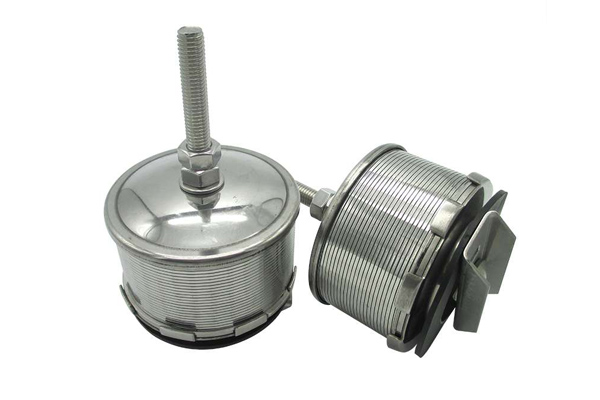

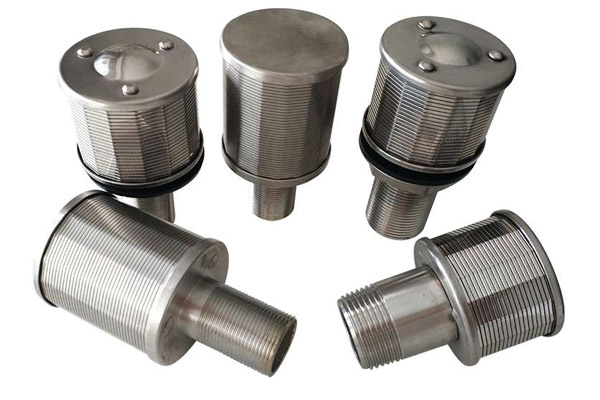

Wedge wire filter nozzles are manufactured by welding V-shaped profile wires around support rods to create continuous slot openings.

The slot design provides two important functions:

Media Retention

The precise slot opening prevents filter media particles from escaping while allowing filtered water to pass through efficiently.

This is particularly important for:

• Sand filters

• Activated carbon filters

• Ion exchange resin systems

Fluid Distribution

During filtration, water flows evenly through the media bed and exits through the nozzles.

During backwashing, the nozzles help distribute the reverse flow uniformly, allowing the media bed to expand and release trapped contaminants.

This balanced flow prevents uneven cleaning and improves filter performance.

3. Slot Size Selection and Filtration Efficiency

Slot size is one of the most important design factors for wedge wire filter nozzles.

A properly selected slot opening must balance:

• Media retention

• Flow capacity

• Pressure drop

• Backwash performance

If the slot opening is too large:

• Media particles may escape

• Filtration performance decreases

• Downstream equipment may be affected

If the slot opening is too small:

• Flow resistance increases

• Pressure drop rises

• Backwashing becomes less effective

The ideal slot size depends on the type and size of filtration media.

For example:

• Sand filtration systems require different slot designs compared with

• Ion exchange resin systems or activated carbon filters

Therefore, nozzle selection should always consider the complete filtration process rather than only the nozzle itself.

4. Open Area and Hydraulic Performance

One major advantage of wedge wire filter nozzles is their high effective open area.

Compared with traditional perforated designs, continuous wedge wire slots provide smoother flow paths and reduce hydraulic resistance.

Higher open area contributes to:

• Increased filtration capacity

• Lower pressure drop

• More uniform flow distribution

• Improved energy efficiency

In large filtration vessels, even small improvements in hydraulic performance can significantly reduce operating costs over the equipment lifecycle.

5. Self-Cleaning Design and Backwash Efficiency

A key feature of wedge wire technology is its anti-clogging structure.

The V-shaped slot becomes wider internally, reducing the possibility of particles becoming trapped inside the opening.

This provides:

• Easier debris release

• Reduced fouling

• More stable flow performance

During backwashing, the nozzle design helps distribute water evenly throughout the media bed.

Effective backwashing removes accumulated contaminants and restores filtration performance without excessive media disturbance.

6. Material Selection for Different Applications

Filter nozzles operate in environments where corrosion resistance and mechanical strength are essential.

Common materials include:

Stainless Steel 304

Suitable for general water treatment applications with moderate corrosion requirements.

Stainless Steel 316L

Preferred for:

• Chemical filtration

• Marine environments

• Industrial wastewater treatment

because of its improved corrosion resistance.

Duplex Stainless Steel and Special Alloys

Used for demanding applications involving:

• High chloride exposure

• Aggressive chemicals

• Higher mechanical stress

Choosing the correct material helps extend nozzle service life and reduces replacement frequency.

7. Applications of Wedge Wire Filter Nozzles

Due to their reliability and flexibility, wedge wire filter nozzles are widely used in:

Water Treatment Systems

Including:

• Multimedia filters

• Sand filtration systems

• Drinking water treatment

Ion Exchange Systems

Used for:

• Resin retention

• Uniform regeneration flow

• Improved operating stability

Industrial Process Filtration

Applications include:

• Chemical processing

• Food and beverage filtration

• Power plant water treatment

• Wastewater treatment

Carbon and Media Filters

Providing reliable support for:

• Activated carbon

• Anthracite

• Other granular filtration media

8. Key Factors When Selecting a Wedge Wire Filter Nozzle

Before selecting a nozzle design, engineers should evaluate:

1. Media Type and Size

Different media require different slot openings.

2. Operating Flow Rate

Higher flow applications require sufficient open area to prevent excessive pressure drop.

3. Vessel Design

Nozzle quantity, installation pattern, and distribution arrangement affect overall performance.

4. Chemical Compatibility

The material must withstand the process fluid and cleaning chemicals.

5. Maintenance Requirements

Applications requiring frequent backwashing should prioritize clog resistance and durability.

FAQ

What is the main function of a wedge wire filter nozzle?

A wedge wire filter nozzle supports filtration media, controls flow distribution, and prevents media loss during filtration and backwashing.

Why are wedge wire nozzles better than traditional perforated nozzles?

Their continuous V-shaped slots provide higher open area, better anti-clogging performance, and more stable hydraulic performance.

How is the slot size selected?

Slot size depends on the filtration media particle size, required retention level, flow rate, and backwash requirements.

Which materials are commonly used for filter nozzles?

Stainless steel 304 and 316L are widely used, while duplex stainless steel and special alloys are selected for more aggressive environments.

Wedge Wire Filter Nozzles play a crucial role in the efficiency and reliability of media filtration systems. Although they represent a small part of the overall equipment, their design directly affects flow distribution, media retention, pressure drop, and backwashing performance.

By optimizing slot size, open area, material selection, and installation design, wedge wire filter nozzles help filtration systems achieve higher efficiency, longer service life, and lower maintenance requirements.

For modern industrial filtration applications, selecting the right wedge wire filter nozzle is not only a component decision but also an important factor in improving the overall performance of the entire filtration system.
