Stainless Steel Water Hub Lateral for Filtration
Welcome to Hebei YUBO Filtration Equipment Co.,Ltd.

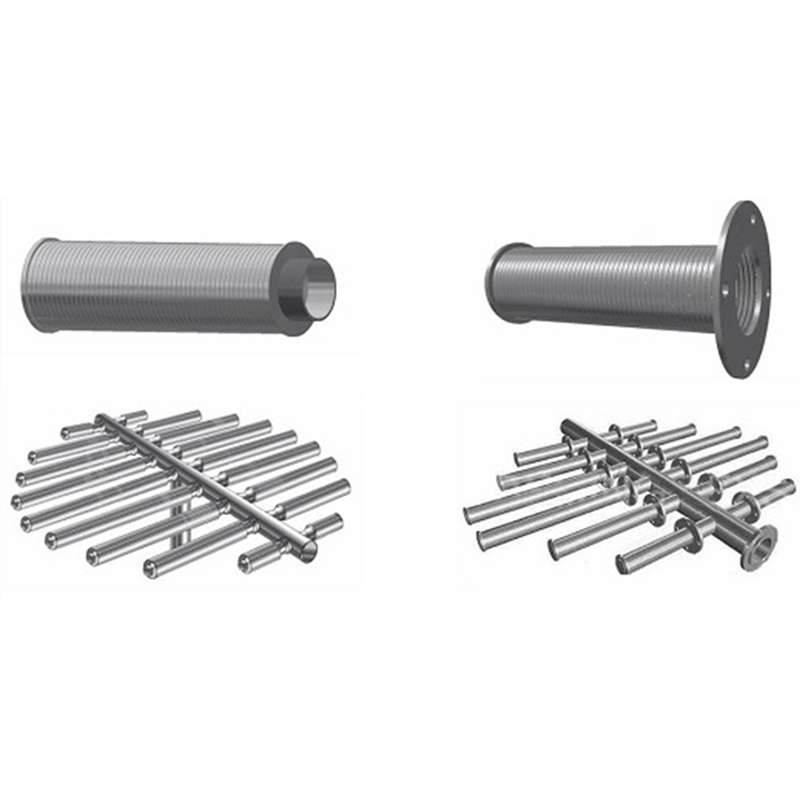

The stainless steel water hub lateral has an inherent uniform pattern and is usually made of stainless steel, Hastelloy steel, and other alloy steel.
The role of the stainless steel water hub lateral is to promote uniform distribution while avoiding flow/pressure concentration. Each side header consists of a series of hub lateral connected to the central header to provide uniform flow in the container containing the processing medium.
The stainless steel water hub lateral for filtration has a variety of models, slot sizes, number of branch pipes, and branch pipe diameters to suit various applications. The stainless steel water hub lateral can be custom. The specification of the YUBO stainless steel water hub lateral is as follow:
|
No.
|
Model
|
DN
(mm) |
O.D. of Branch Pipe(mm)
|
Number of Branch Pipe
|
Dimension of Main Pipe
|
|
1
|
HR-125
|
1250
|
25-57
|
6-8
|
DN80
|
|
2
|
HR-160
|
1600
|
28-57
|
6-8
|
DN80
|
|
3
|
HR-180
|
1800
|
32-65
|
8-12
|
DN80-DN100
|
|
4
|
HR-200
|
2000
|
42-89
|
8-12
|
DN80-DN125
|
|
5
|
HR-220
|
2200
|
42-89
|
8-12
|
DN100-DN125
|
|
6
|
HR-250
|
2500
|
57-89
|
8-16
|
DN100-DN125
|
|
7
|
HR-280
|
2800
|
57-89
|
8-20
|
DN100-DN150
|
|
8
|
HR-300
|
3000
|
57-89
|
8-20
|
DN125-DN200
|
|
9
|
HR-320
|
3200
|
57-89
|
8-22
|
DN125-DN250
|
Hebei YUBO Filtration Equipment Co., Ltd. can produce stainless steel water hub lateral for filtration which can be used for ion exchange equipment, medium filter, and sand filter, the resin tank, silicate, and chemical industry, water treatment industry, etc. If you need, welcome to contact us to know more.
E-mail: sales@ubowedgewire.com
WhatsApp/skype/WeChat: +86 135 2283 8175
Who We Are?
YUBO Company is the professional supplier in China. It is always committed to study, design and produce wedge wire screen products for industry filter.Now its products include wedge wire screen panel, filter nozzle, cylinder,basket,pipe, Sieve Bend Screen,Profile Screen Laterals,etc.
What Is wedge wire screen
Wedge Wire Screens is a sieve made from looped wires formed into a deep wedge-shaped section. The wedge wire screens can be supplied in various shapes and forms as FLAT PANELS, CURVED SIEVE BENDS, CONICAL BASKETS, CYLINDERS, TROUGHS DISKS either in one one piece or in segments.
our advantages
- Professtional, we have our Engineering designers
- We are the factory
- Quality is our cluture and soul
- Customized. We produce and design according to your need
- Low cost and high efficient
