Lauter tun false bottom screen for brewery

More Views

Lauter tun false bottom screen for breweryLauter tun false bottom screen for breweryLauter tun false bottom screen for brewery

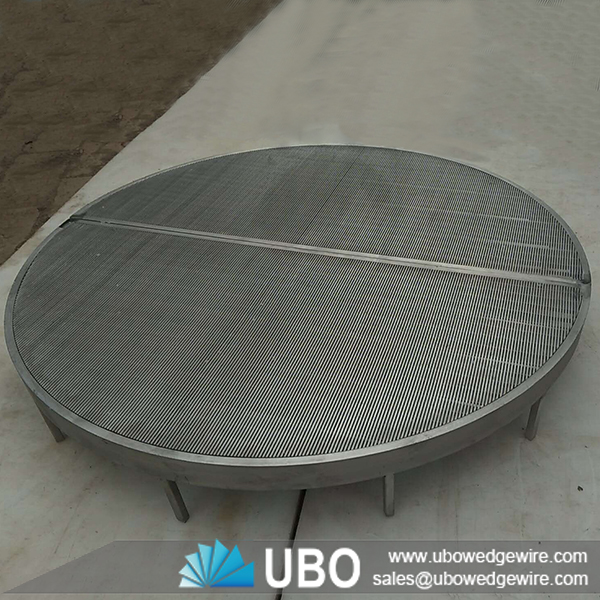

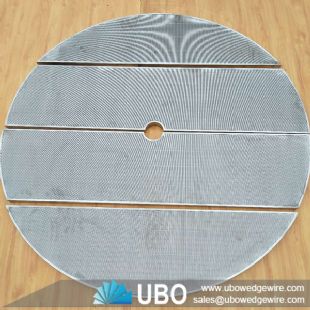

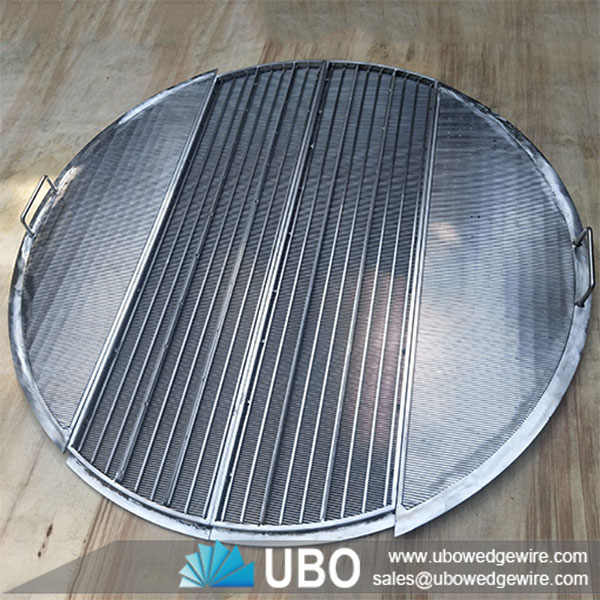

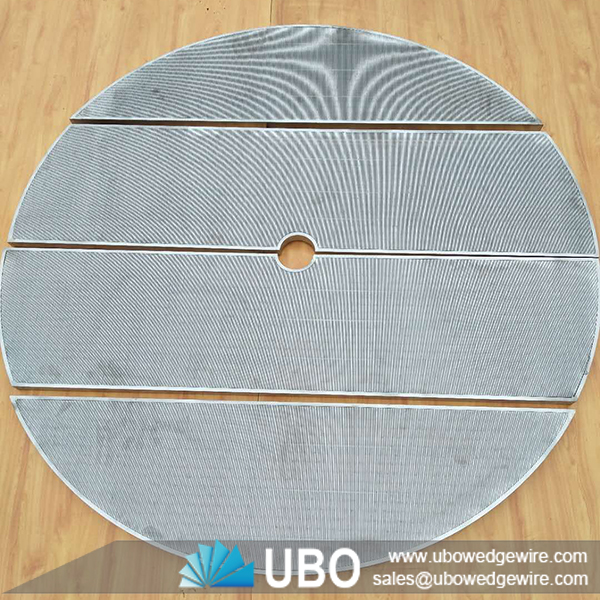

Lauter tun false bottom screen for brewery

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:lauter tun screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Lauter tun false bottom screen for brewery

UBO Screens manufactures Lauter tun false bottom screen for the brewery industry. Stainless steel wedge wire screens provide a false bottom in a lauter tun in many craft beer breweries. The lauter tun screen is necessary for a proper separation process. All UBO lauter tun screens are custom built to your specifications. These  false bottom screens can be built as one piece/screen or in sections to fit through any size manway and are designed to sit on a ledge within the tank/kettle.

Call me to learn more about mash tun, lauter tun or custom screens for accurate liquid/solid separation in all industries.

Lauter tun false bottom screen for brewery

Application of Lauter tun false bottom screen for brewery

Mash filtration bottom, used in the lauter tuns in breweries. On the mash hot water is applied to create the wort. The false bottom consists out of segments, which can pas through the manhole. The V-shaped (wedge wire) solution has a larger open area then the conventional milled plate false bottom.

Characteristic of Lauter tun false bottom screen for brewery

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles.

Lauter tun false bottom screen for brewery

Lauter tun false bottom screen for breweryLauter tun false bottom screen for brewery

Lauter tun false bottom screen for brewery

The specifications of the Lauter tun false bottom screen for brewery:

Lauter tun false bottom screen for brewery

Normal Name

Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc.

Diameter Range

(MM)

200mm To 2500mm. Diameter Customized

Normal Diameter

(MM)

29”, 30”, 35”, 37”, 40”, 45”, 47”, 59”, 63”, 74”, Etc

Normal Slot

(MM)

0.7mm, 0.75mm, 0.8mm, 1.0mm, customized

Normal Thickness (MM)

8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized.



Sections & shape

1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized

Wedge wire

(MM)

2x4MM Wedge Wire, 3x5MM Wedge Wire

Support Rod

 (MM)

3x5MM V shaped Support Rod, 3x5mm Square Support Rod

Strengthen Rod

(MM)

Thickness and Height according to the diameter and screen thickness

Note

Usually customized.

The Packaging and Transportation of the Lauter tun false bottom screen for brewery:

Transportation of Lauter tun false bottom screen for brewery
