wedge wire screen,wedge wire screens,wedge wire screen manufacturers

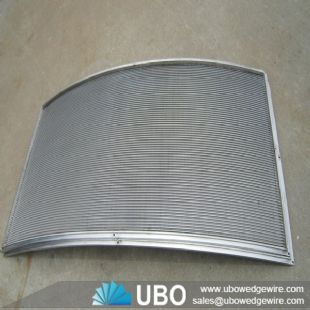

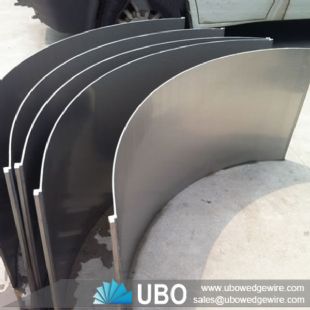

Wedge wire sieve bend screen parabolic type screen panel filter for waste water treatment

More Views

Wedge wire sieve bend screen parabolic type screen panel filter for waste water treatmentWedge wire sieve bend screen parabolic type screen panel filter for waste water treatmentWedge wire sieve bend screen parabolic type screen panel filter for waste water treatment

Wedge wire sieve bend screen parabolic type screen panel filter for waste water treatment

Category:Wedge Wire Application
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge wire sieve bend screen parabolic type screen panel filter for waste water treatment

Wedge wire sieve bend screen parabolic type screen panel filter for waste water treatment is primarily influenced by the screen width, the slot opening, and the wire size (width). The chart below shows typical dewatering capacities in US gallons per minute (GPM) per foot of screen width. Actual capacity varies depending on the feed content and desired efficiency.

Wedge wire sieve bend screen parabolic type screen panel filter for waste water treatment

Wedge wire sieve bend screen parabolic type screen panel filter for waste water treatment

Application of Wedge wire sieve bend screen parabolic type screen panel filter for waste water treatment


The Sieve Bend Screen is commonly used in food processing and corn wet milling plants. In the corn wet milling process, CP Screens precisely manufactures the 120 Degree DSM Screen which is simple in shape, just like the common Sieve Bend Screen, however its very fine slot openings commonly 75 and 100 µm, are very critical.

Feature of Wedge wire sieve bend screen parabolic type screen panel filter for waste water treatment

Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.
Flexible Design - we can supply units with any features you may require.

Wedge wire sieve bend screen parabolic type screen panel filter for waste water treatment

Wedge wire sieve bend screen parabolic type screen panel filter for waste water treatment

The specifications of the Wedge wire sieve bend screen parabolic type screen panel filter for waste water treatment:

Wedge wire sieve bend screen parabolic type screen panel filter for waste water treatment



Material:

Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

Wedge Wire (mm):

Width : 1.50 1.80 2.30 3.00 3.30 3.70

Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Support Rod (mm):

Width : 2.30 3.00 3.30 3.70

Height : 2.70 3.60 4.70 5.60 6.30

Width:

from 1 inch -----45 inch.

Length:

Max 6 meters.

Slot size

Slot size

Radian:

120º,60º,45º as your request

The Packaging and Transportation of the Wedge wire sieve bend screen parabolic type screen panel filter for waste water treatment:

Wedge wire sieve bend screen parabolic type screen panel filter for waste water treatment
