SS316 Stainless Steel Water Treatment Sand Filter Nozzle
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | Filter Nozzle |
Application: | water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration. |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of SS316 Stainless Steel Water Treatment Sand Filter Nozzle
SS316 Stainless Steel Water Treatment Sand Filter Nozzle is a kind of water filter nozzle. It is made of wedge wire screen. The filtering slot is V shape. The special structure makes the filter nozzle a high filtering efficiancy.
The SS316 Stainless Steel Water Treatment Sand Filter Nozzle is the typical filter element made of wedge wire screen. Wedge wire screen is the widely using screen for filtration and separation in liquid/gas, mining, food, water wasting, and so on. Wedge wire screen have flat type, cylinder type, slope type and basket type. So Wedge wire screen is called as flat welded screen panel, cylinder wedge screen and sieve bend screen. According to the weaving type, they are also called woven wedge wire and welded wedge wire such as crimped wedge wire, welded wedge screen panels.
Applications for SS316 Stainless Steel Water Treatment Sand Filter Nozzle:
Wedge wire screen nozzle has many important roles to play and is useful for filtration in various industries. UBO Wedge Wire filter nozzles are primarily used as add-ons to filtering equipment in the water petrol resin industry. That said, nozzles are also used in various industries including: water treatment, sea water conversion to fresh water plants and food chemistry filtration. This new type of filtration component is made from stainless steel material ensuring durability, and filtration precision starts from 20 microns. Nozzles are welded to the profile(s) on several connection areas to ensure stability.
Features for SS316 Stainless Steel Water Treatment Sand Filter Nozzle:
Type 316L stainless steel construction.
Continuous slot design provides increased open area for better collection.
Standard slot opening is 0.007" (0.18 mm), suitable for 40 to 50 mesh size media. Other slot sizes are also available.
Wedge wire screen is highly resistant to plugging.
Choice of either ¾" NPT or 1" NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
Specifications of SS316 Stainless Steel Water Treatment Sand Filter Nozzle:

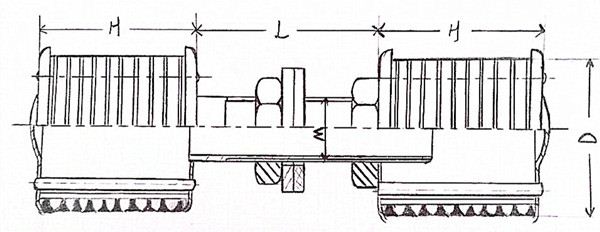

D | L | L1 | L2 | Slot Size | d | Flow Area mm2 |
45 | 110-170 | 34 | 34 | 0.2-0.25 | M24 | 390-493 |
45 | 110-170 | 44 | 44 | 0.2-0.25 | M24 | 551-690 |
53 | 120-180 | 34 | 34 | 0.2-0.25 | M27 | 453-597 |
53 | 120-180 | 44 | 44 | 0.2-0.25 | M30 | 680-710 |
57 | 120-180 | 50 | 50 | 0.2-0.25 | M32 | 800-1000 |
60 | 120-180 | 50 | 50 | 0.2-0.25 | G1" | 950-1188 |
