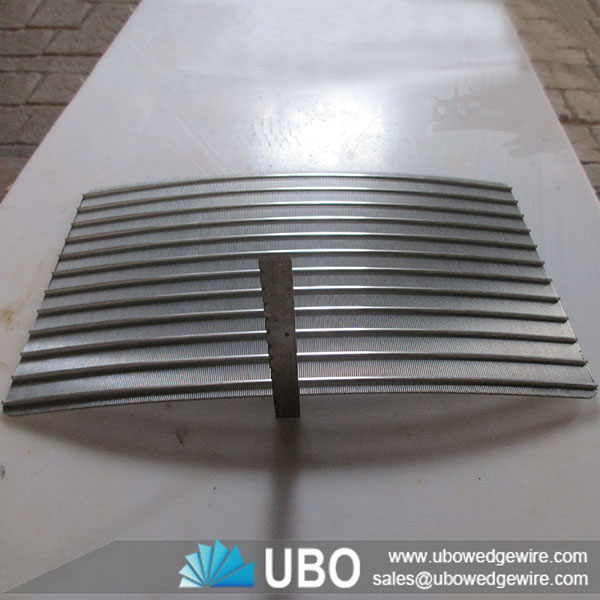

Wedge wire wrapped sieve bend screen plate for waste water filtration

More Views

Wedge wire wrapped sieve bend screen plate for waste water filtrationWedge wire wrapped sieve bend screen plate for waste water filtrationWedge wire wrapped sieve bend screen plate for waste water filtration

Wedge wire wrapped sieve bend screen plate for waste water filtration

Category:Sieve Bend Screen
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge wire wrapped sieve bend screen plate for waste water filtration

UBO Screens Wedge wire wrapped sieve bend screen plate can be used in a variety of applications ranging from classifying to recovering usable products that would end up in sewer lines to capturing solids from effluents. A continuous slot screen sieve bend gives you a great amount of open area, is significantly more affordable and requires less maintenance than vibrating or rotary drum options.

UBO Screens can manufacture sieve bends to your specifications, including construction materials and sizes. We can also design to your flow-rate requirement.

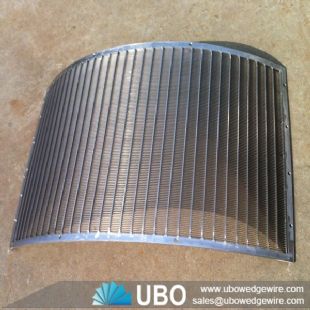

Wedge wire wrapped sieve bend screen plate for wast water filtration

Advantages of Wedge wire wrapped sieve bend screen plate for waste water filtration

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

Usages of Wedge wire wrapped sieve bend screen plate for waste water filtration

1.) Widely used in vairous kinds of medium filtering
2.) As the fitting using in the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3.) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4.) The organic solution recycling filter

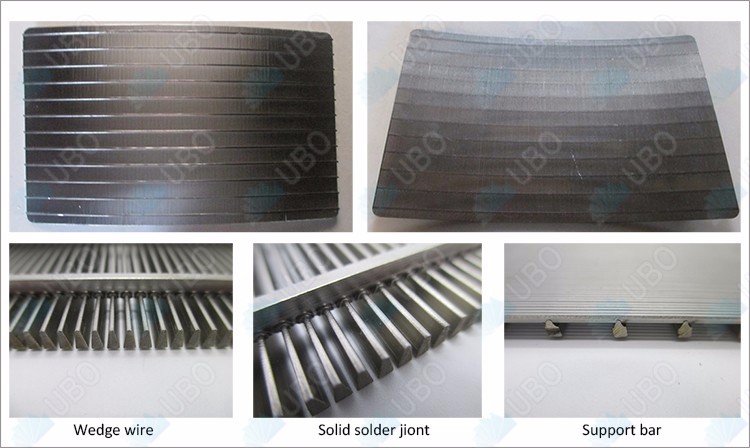

Wedge wire wrapped sieve bend screen plate for wast water filtration

Wedge wire wrapped sieve bend screen plate for wast water filtration

Wedge wire wrapped sieve bend screen plate for wast water filtration

The specifications of the Wedge wire wrapped sieve bend screen plate for waste water filtration:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

60º  120º or according to your special requirement

The Packaging and Transportation of the Wedge wire wrapped sieve bend screen plate for waste water filtration:

Wedge wire wrapped sieve bend screen plate for wast water filtration
