SS 316 wedge wire screen water lateral filter pipe for water treatment equipment

More Views

SS 316 wedge wire screen water lateral filter pipe for water treatment equipmentSS 316 wedge wire screen water lateral filter pipe for water treatment equipmentSS 316 wedge wire screen water lateral filter pipe for water treatment equipment

SS 316 wedge wire screen water lateral filter pipe for water treatment equipment

Category:Profile screen laterals
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:profile screen lateral
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant, refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the SS 316 wedge wire screen water lateral filter pipe for water treatment equipment

SS 316 wedge wire screen water lateral filter pipe has long been considered the most effective media for use in under draining. Wedge wire has an inherent even pattern if open area that allows for accurate flow distribution. Its internal support rod structure gives it a higher collapse strength allowing it to handle the most demanding load applications. Constructed of stainless steel wedge wire is easily worked to meet both typical and unique under drain designs. Although UBO screen supplies arrange of standard wire shapes, an in house wire forming facility allows for custom shaping if required by design.

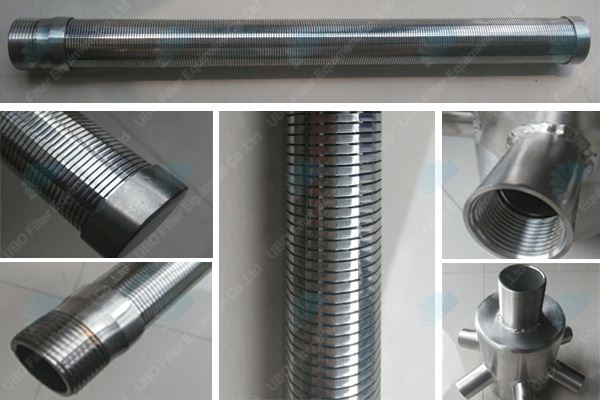

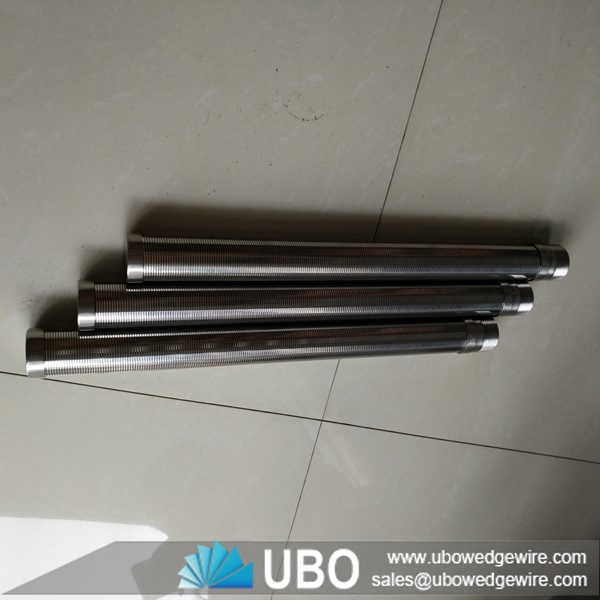

water treatment equipment screen pipe as an efficient collector, the screen lateral is available in several sizes, with various slots and end fittings. Most commonly, the screen lateral is provided with a solid cap on one end and a threaded pipe connection on the other end.

SS 316 <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> water lateral filter pipe for water treatment equipment

SS 316 <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> water lateral filter pipe for water treatment equipment



Application of SS 316 wedge wire screen water lateral filter pipe for water treatment equipment

The header assembly are the key parts of the treatment equipment and water distribution, they are widely used in the power plant, petroleum, chemical, pharmaceutical, food, sewage treatment, water plant and other industries of water treatment equipment and so on.

Feature of SS 316 wedge wire screen water lateral filter pipe for water treatment equipment

With the advantage of the wrap wire screens pipe,large flow area, uniform water distribution, high mechanical strength,temperature resistance, pressure resistance, aging resistance,corrosion resistance have been greatly improved. Even if the branch pipe bending occurs, the resin still can’t flow out.Stainless steel wire slot size can be designed according to the resin size.

SS 316 <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> water lateral filter pipe for water treatment equipment

SS 316 <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> water lateral filter pipe for water treatment equipment



The specifications of the SS 316 wedge wire screen water lateral filter pipe for water treatment equipment:

SS 316 <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> water lateral filter pipe for water treatment equipment

SS 316 <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> water lateral filter pipe for water treatment equipment



Material

SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205,  2207, Duplex, Hastelloy, etc

Normal Lateral Tube QTY (PCS)

4, 6, 8, 12,16, etc. According to request, actual flow rating, and application.

Lateral OD Range (mm)

25 to 80mm, customized

Normal Hub (mm)

108, 133, 219, Customized

Main Hub and lateral connector types

Thread, Flange

Diameter Range(mm)

According to the tank diameter. (Usually 200mm shorter than tank diameter)

Slot Range(mm)

Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.

Slot according to request.

Wedge Wire(mm)

1x2

1.2x2 /1.5x2

Support Rod (mm)

2x3

1.8x2.5

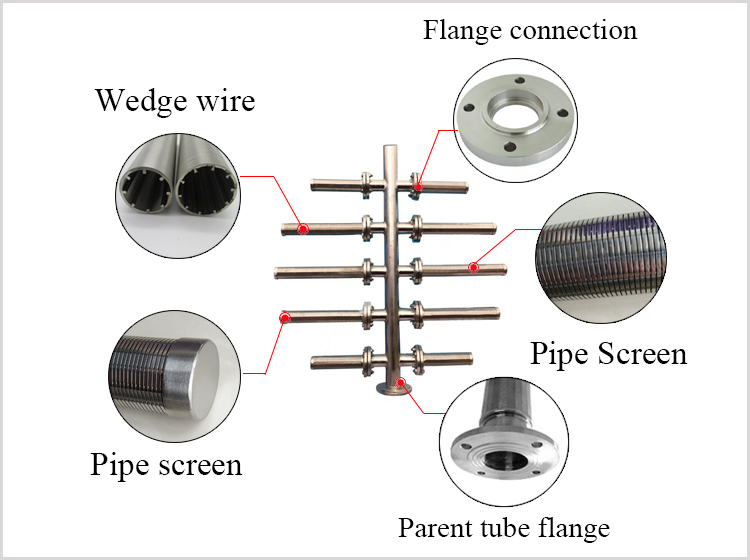

Structure of Distributor

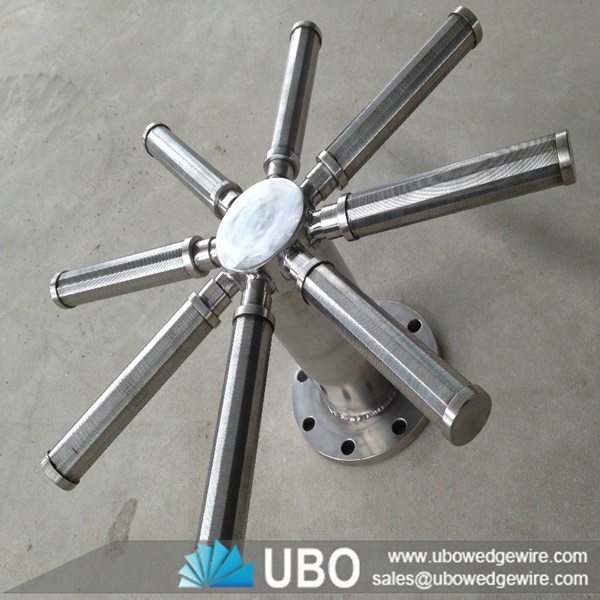

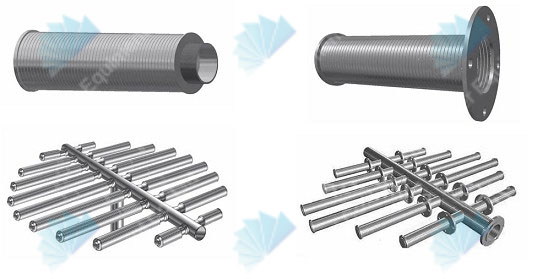

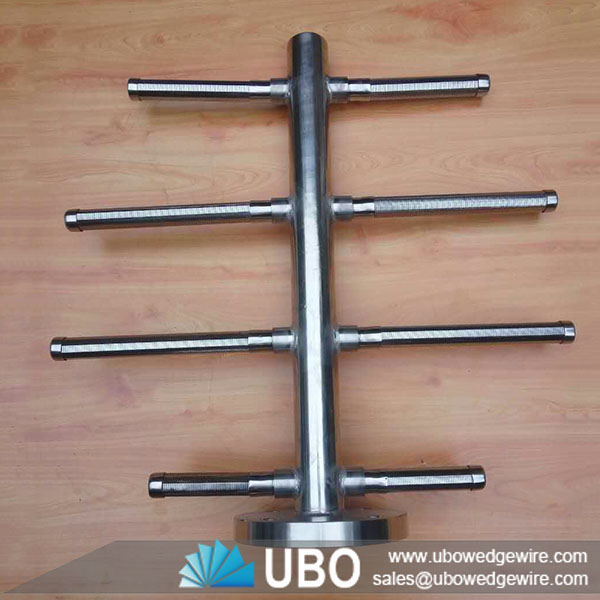

Header lateral(Fish bone type distribution), hub lateral(Decentralized)

Note

Customized According To Requirement

The Packaging and Transportation of the SS 316 wedge wire screen water lateral filter pipe for water treatment equipment:

SS 316 <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> water lateral filter pipe for water treatment equipment
