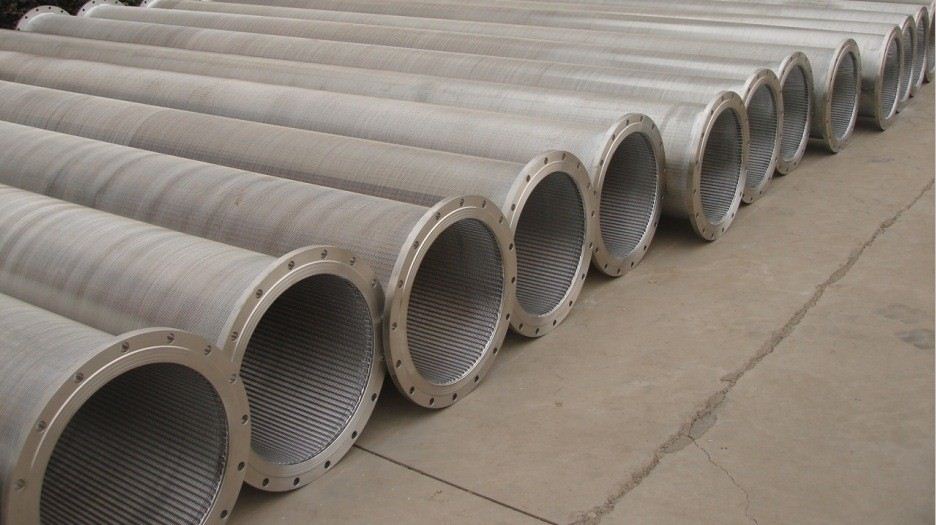

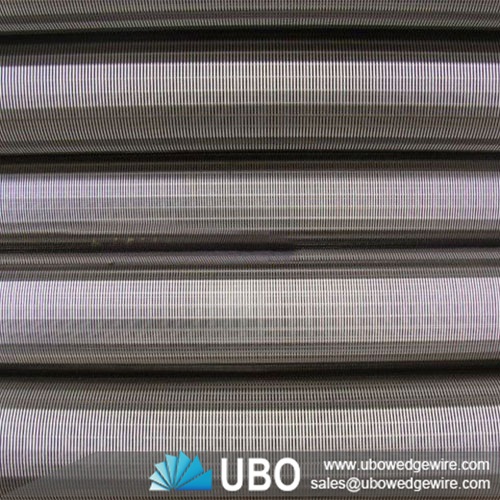

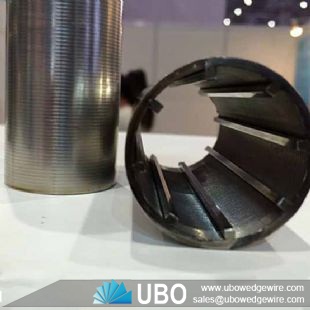

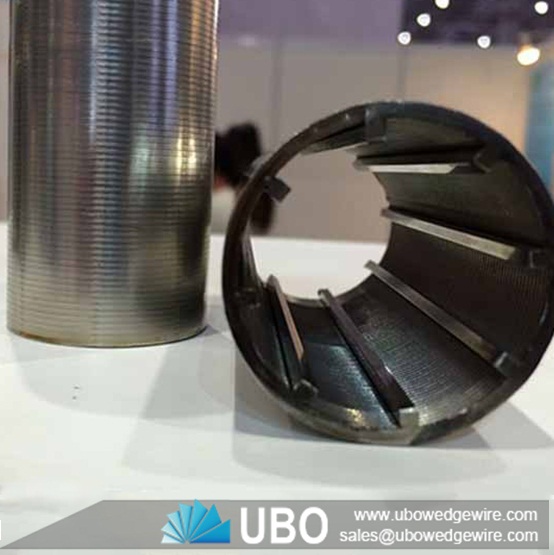

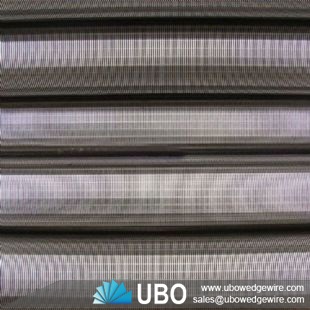

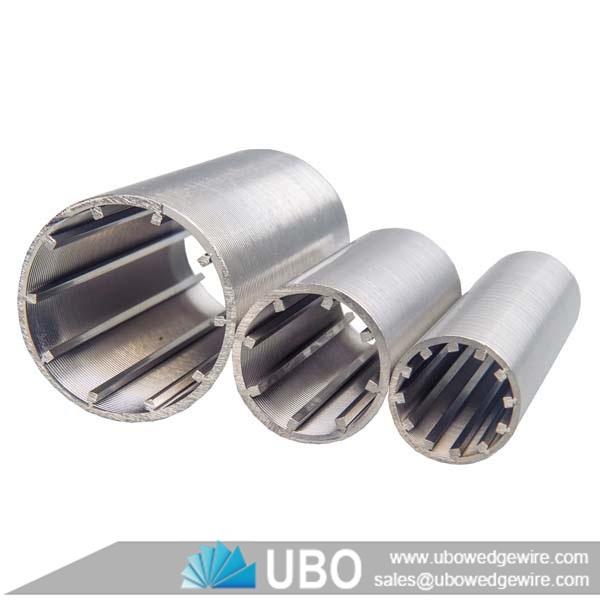

The welded continuous slot wedge wire screens are made up of rods and wire.The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire).Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long,safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Application for Wedge Wire Stainless Steel Johnson Screen Filter Pipe For Water Pump:

It can be used with the deep well pump,dive the water pump,also may be used in the water treating equipment,the environmental protection,the sea water transforms into the industrial water and life use water desalination treatment,running water treatment,water softening treatment,the petroleum industry,The petroleum product terminal filters and the chemical acid,the alkali liquid filters,the ethyl alcohol and so on the organic solution recycling filters.

Feature for Wedge Wire Stainless Steel Johnson Screen Filter Pipe For Water Pump:

1. Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.
2. Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.
3. Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.
4. Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)
5. Long live: Welded at each intersection creating a strong and durable screen.
6. Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.
7. Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface. The V-shaped opeings, designed to be nonclogging, are narrowest at the outer face and widen inwardly.Continuous-slot screens provide more intake area per unit area of screen surface than any other type. For any given slot size, this type of screen has maximum open area.

1)Material: Raw material: Low carton, low carton galvanized steel (LCG), stainless steel(302,304,304L,304HC,316,316Letc.)
2)Slot Size: 0.05,0.025,0.03,0.04,0.05...0.2 0.3 0.5 1.0.....60mm,
3)Wire diameter: 1.5x2mm, 2x3mm, 2x23.5, 3x7mm, 4x6mm.
4)Support rod: 2x3mm, 3x3.8mm, 3x5mm......5x6mm,
5)Length: 0.05m-6m,
6)Surface treatment: polishing , chroming,
