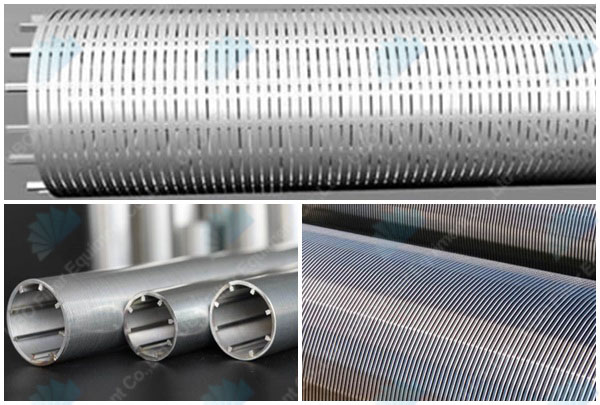

Stainless Steel Wire-Wrapped Johnson Screen V Wire Wrap Slot Cylinder

More Views

Stainless Steel Wire-Wrapped Johnson Screen V Wire Wrap Slot CylinderStainless Steel Wire-Wrapped Johnson Screen V Wire Wrap Slot CylinderStainless Steel Wire-Wrapped Johnson Screen V Wire Wrap Slot Cylinder

Stainless Steel Wire-Wrapped Johnson Screen V Wire Wrap Slot Cylinder

Category:Wedge Wire Pipe&Cylinder
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Cylinder
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless Steel Wire-Wrapped Johnson Screen V Wire Wrap Slot Cylinder

    The welded continuous slot wedge wire screens are made up of rods and wire.The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire).Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long,safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Application for Stainless Steel Wire-Wrapped Johnson Screen V Wire Wrap Slot Cylinder:

Applications for wedge wire screen panels include cross flow sieves, vibrating screen decking,mineral processing, surface water intake screens, fish diversion screen panels, hatchery screens, food processing, and flooring for malt kiln, germination, and grain drying.

Feature for Stainless Steel Wire-Wrapped Johnson Screen V Wire Wrap Slot Cylinder:

1. Production process continuity: V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.
2. Low maintenance costs: Separation at the screen surface which can easily cleaned by scraping or back washing.
3. Maximum process output: Precise and continuous slot openings resulting in accurate separation without loss off media.
4. Low operational costs: Large open area with an effective flow, high yield and a low pressure drop (dP)
5. Long live: Welded at each intersection creating a strong and durable screen.
6. Reduced installation costs: supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.
7. Chemical and thermal resistant: A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface. The V-shaped opeings, designed to be nonclogging, are narrowest at the outer face and widen inwardly.Continuous-slot screens provide more intake area per unit area of screen surface than any other type. For any given slot size, this type of screen has maximum open area.

Working Principle for Stainless Steel Wire-Wrapped Johnson Screen V Wire Wrap Slot Cylinder:

Inside the well, the all-welded wedge wire water screen is placed into the sand stratum. Then the gravel slurry together with the oil will be pumped into the space between the screen pipe and well. Through the multistage filtering, sand and gravel will be removed. Simultaneously, oil will get into the pipe from the holes, and then it will be continuously lifted to the ground. The sand will be controlled to turn back to the sand stratum, thus ensuring the normal production of the well. Moreover, the screen has no damage to the oil layer.

Stainless Steel Wire-Wrapped Johnson Screen V Wire Wrap Slot Cylinder

Stainless Steel Wire-Wrapped Johnson Screen V Wire Wrap Slot Cylinder

The specifications of the Stainless Steel Wire-Wrapped Johnson Screen V Wire Wrap Slot Cylinder:

Stainless Steel Wire-Wrapped Johnson Screen V Wire Wrap Slot Cylinder

Stainless Steel Wire-Wrapped Johnson Screen V Wire Wrap Slot Cylinder



Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

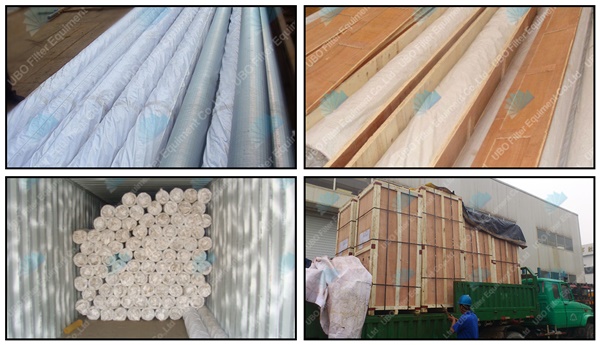

The Packaging and Transportation of the Stainless Steel Wire-Wrapped Johnson Screen V Wire Wrap Slot Cylinder:
