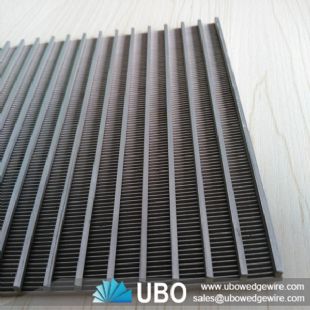

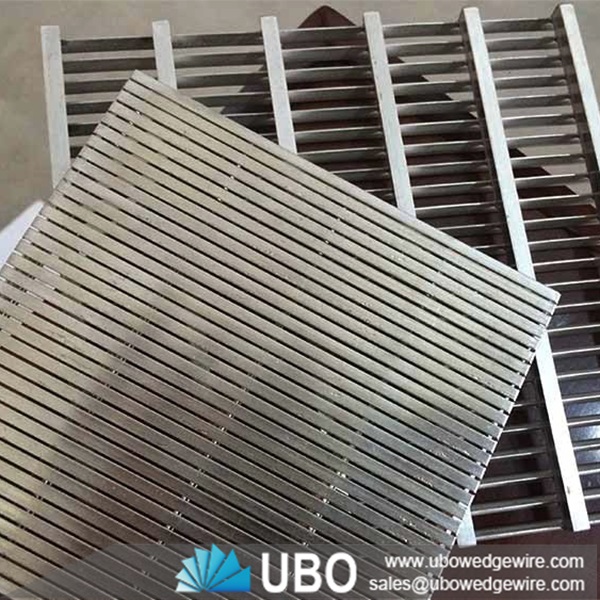

Welded Wedge Wire Screen Plate
| Category: | Wedge Wire Screen Panel |
|---|---|
| Material: | stainless steel 302,304,304L,316,316L |
| Properties: | wedge wire screen |
| Application: | water filtration,liquid filtration,industry filtration |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Welded Wedge Wire Screen Plate
Welded wedge wire screen plate can be constructed using rectangular support rods or round support rods. They are the most widely used type of wedge wire screens mainly in the mineral processing both for stationery as well as vibratory decks.
The panels are either continuously or intermittently welded on the lower side of loop to provide complete rigidity to the panels thus becoming very effective in transmitting the vibrations without mechanical failures.
Advantages of Welded Wedge Wire Screen Plate
Welded wedge wire screen plate can be designed to maximize the open area, strength and wear life to suit any application. Welded Wedge Wire Screens are made from V shaped profile wire, with an unique welding process, offering great strength, precision.
Application of Welded Wedge Wire Screen Plate
Use in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.
Specifications of Welded Wedge Wire Screen Plate:
Material:stainless steel
Type:stainless steel screen plate
Slot:0.2mm
|
LONG WEDGE SUPPORT WIRE |
|
Convex Shape Wire |
|
|
B(mm) |
1MM-3MM |
B (mm) |
3mm-5 mm |
|
H(mm) |
4MM-6MM |
H (mm) |
3mm-5mm |
|
WEDGE PROFILE WIRE |
|
|||||||
|
B (mm) |
1.50 |
1.50 |
2.30 |
2.30 |
1.80 |
3.00 |
3.70 |
3.30 |
|
H (mm) |
2.20 |
2.50 |
2.70 |
3.60 |
4.30 |
4.70 |
5.60 |
6.30 |
|
α (°) |
6° ,10° , 12° |
|||||||
|
GAP SLOT WIDTH(mm) |
0.3mm-10mm |
|||||||
|
SUPPORT WEDGE WIRE |
|
||||
|
WIDTH(mm) |
2.30 |
2.30 |
3.00 |
3.70 |
3.30 |
|
HEIGHT(mm) |
2.70 |
3.60 |
4.70 |
5.60 |
6.30 |
Packaging and Transportation of Welded Wedge Wire Screen Plate:
