wedge wire screen for Filter Support Cores

More Views

wedge wire screen for Filter Support Coreswedge wire screen for Filter Support Coreswedge wire screen for Filter Support Cores

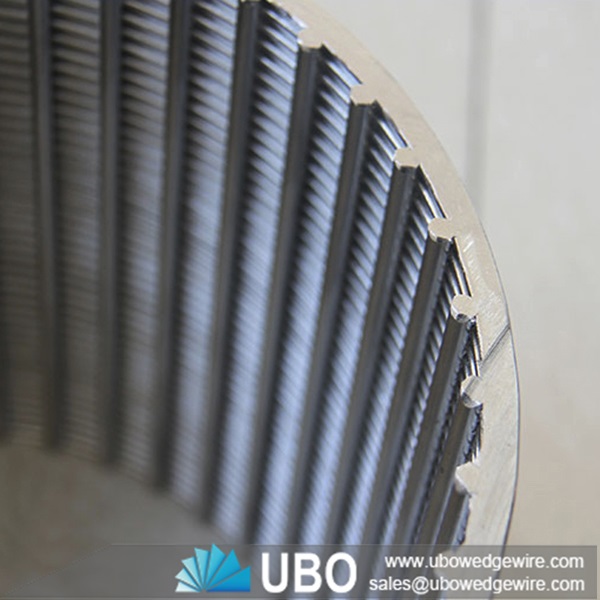

wedge wire screen for Filter Support Cores

Category:Wedge Wire Pipe&Cylinder
Material:SS 304,316,316L, Stainless steel and carbon steel.
Properties:Wedge Wire Pipe
Application:mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire screen for Filter Support Cores

    wedge wire screen for filter support cores is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding.

wedge wire screen for Filter Support Cores

Application for wedge wire screen for Filter Support Cores:

widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.

Features for wedge wire screen for Filter Support Cores:

1.Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.
2. V-type profile of the structure to avoid clogging and ensure smooth flow.
3. Continuous long-term effective use of the pore.
4. Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.
5. Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.

Advantages for wedge wire screen for Filter Support Cores:

1.Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.
2.Low cost operation.
3.Reduce the abrasion of the pump.
4. Extend the life span of wells, low-carbon, Galvanized or stainless steel construction

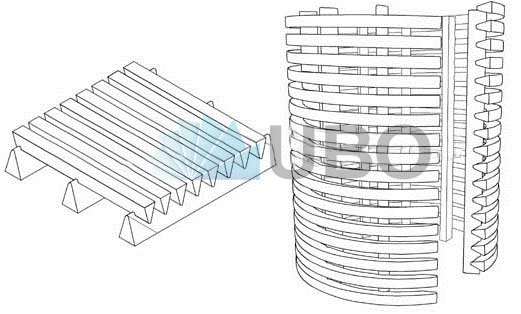

Construction for wedge wire screen for Filter Support Cores:

1.We use wedge-shaped profile wire in order to make the slot v-shaped. It can stop the impurities very well.
2.The wedge wire was welded on the support wire well-proportioned and have perfect roundness. Ensure the screen have bigger filter area and non obstructive, avoid the high concentration of impurities.
3.After work for a period of time, the filter can be back flush.It can use for many times.

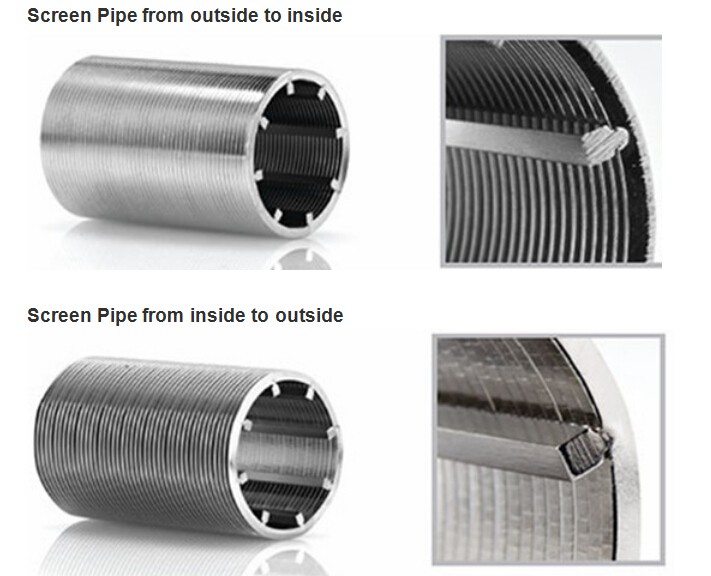

wedge wire screen for Filter Support Cores

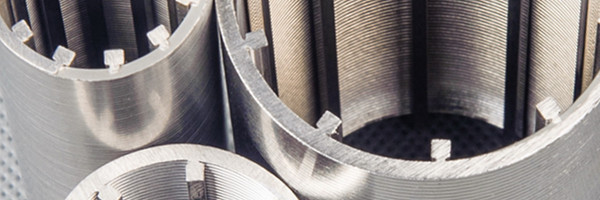

wedge wire screen for Filter Support Cores

Specifications of wedge wire screen for Filter Support Cores:

wedge wire screen for Filter Support Cores

size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

Packaging and Transportation of wedge wire screen for Filter Support Cores:

wedge wire screen for Filter Support Cores



wedge wire screen for Filter Support Cores
