Wedge Wire Water Treatment Sand Filter Nozzle

More Views

Wedge Wire Water Treatment Sand Filter NozzleWedge Wire Water Treatment Sand Filter NozzleWedge Wire Water Treatment Sand Filter Nozzle

Wedge Wire Water Treatment Sand Filter Nozzle

Category:Filter Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge Wire Water Treatment Sand Filter Nozzle

Wedge wire water treatment sand filter nozzles are made from V shaped profile wire, which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded, with an unique welding process. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines. The pitch of winding gives different spacing between two adjacent turns of wire.

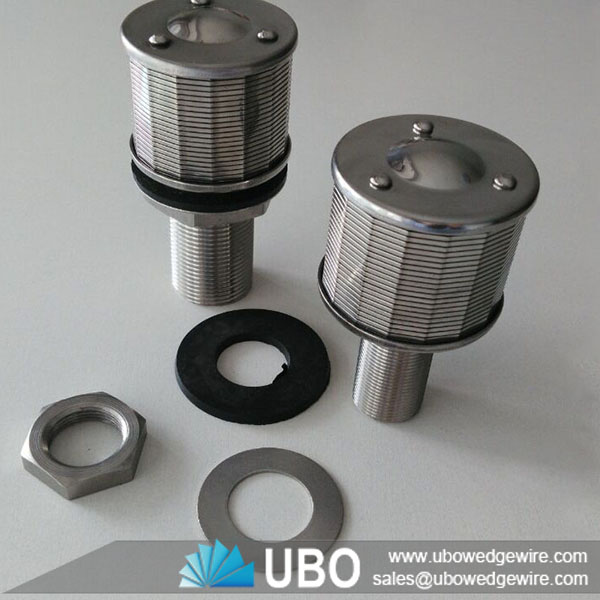

Wedge wire water treatment sand filter nozzle

Application of Wedge Wire Screen Filter Nozzle

Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

Advantages of Wedge Wire Screen Filter Nozzle

1) Type 316L stainless steel construction.

2) Continuous slot design provide large circulation area

3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.

4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

5) Wedge wire screen is highly resistant to plugging.

6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

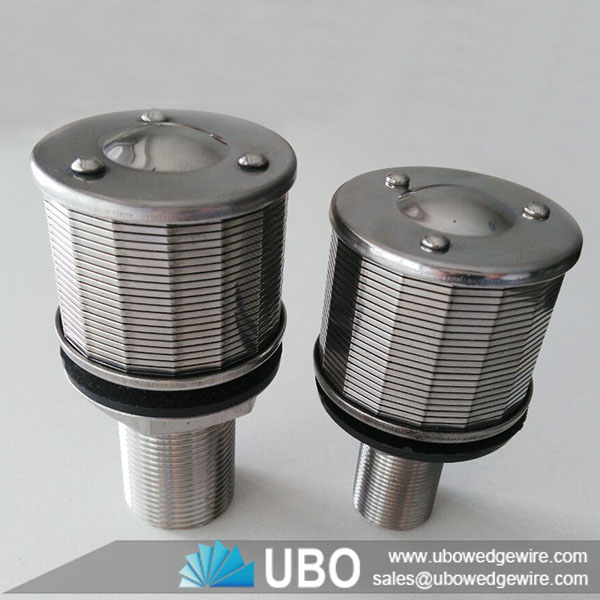

Wedge wire water treatment sand filter nozzle

Specifications of Wedge Wire Water Treatment Sand Filter Nozzle:

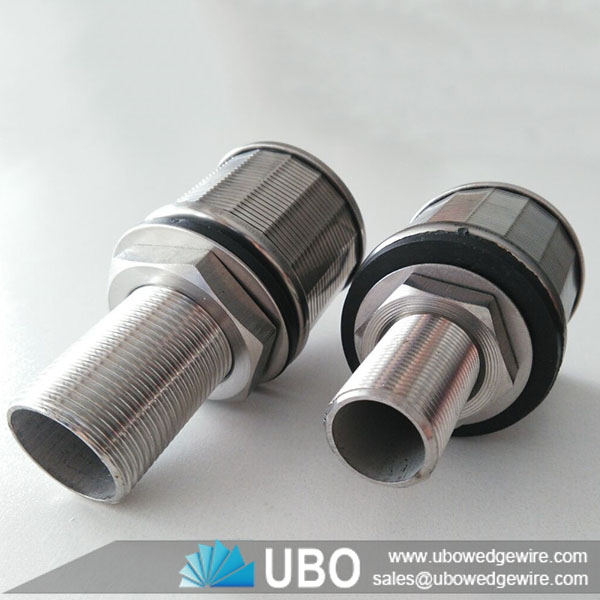

Wedge wire water treatment sand filter nozzle



Type

Slot

Dimension

Flow area

D

H

L

M

A

0.25

Φ45

40

90

M20

450m3

A1

0.25

Φ45

40

90

M24

500m3

(flow 0.5T/H)

B

0.25

Φ53

45

100

M24

570m3

(flow  1T/H)

B1

0.25

Φ53

45

100

M32

600m3

(flow  1.5T/H)

B3

0.25

Φ57

55

110

M32

800m3

(flow 2T/H)

C

0.2-0.5

Φ70

45

110

M32

800m3

C1

0.2-0.5

Φ70

55

120

M32

1000m3

Packaging and Transportation of Wedge Wire Water Treatment Sand Filter Nozzle:

Package: in wood case

Delivery Time: 5-25 days
