wedge wire screen tun sieve panel, wedge wire screen panel, v wire screen pane;, wedge wire screen supplier-lauter tun screen-Wedge Wire Screen Panel Manufacturers,Suppliers and Exporters on UBO Filter Equiment Co.,Ltd

wedge wire screen,wedge wire screens,wedge wire screen manufacturers

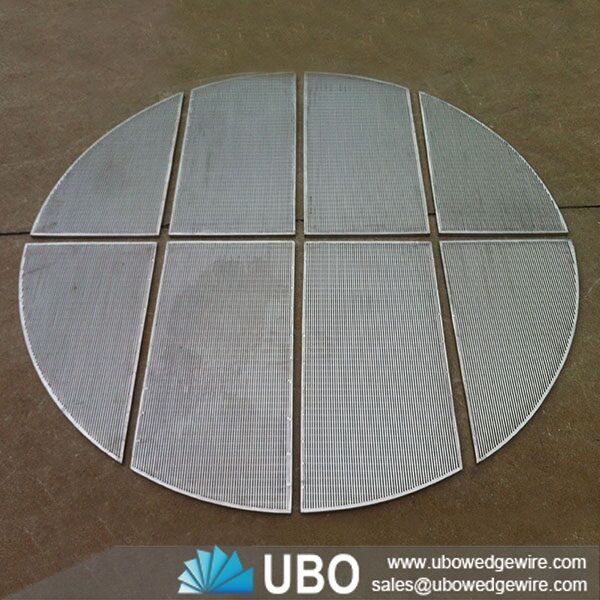

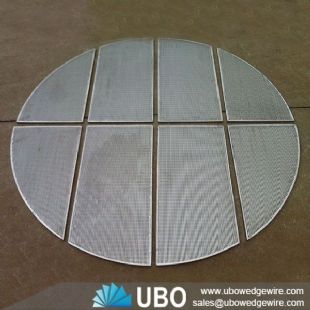

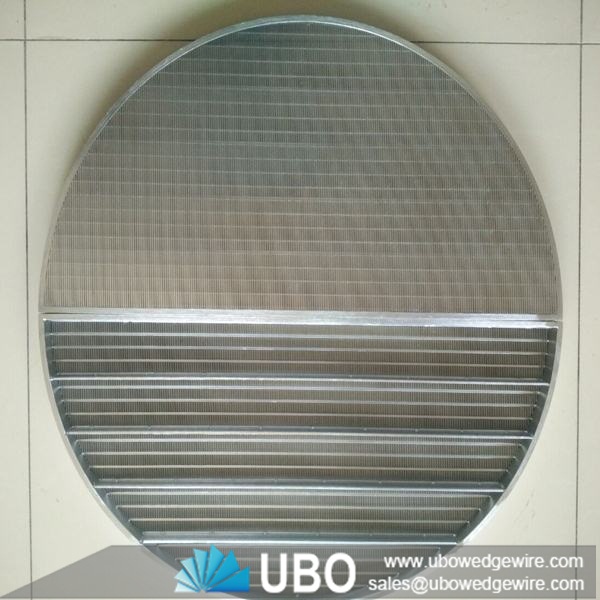

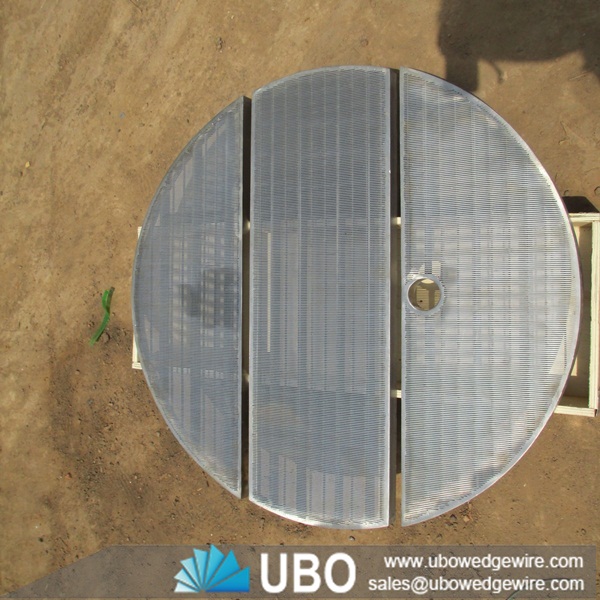

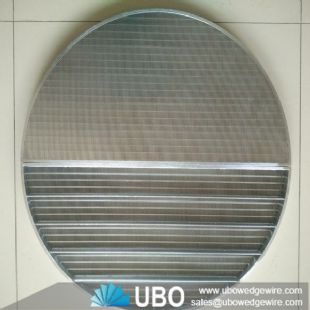

wedge wire screen tun sieve panel

More Views

wedge wire screen tun sieve panelwedge wire screen tun sieve panelwedge wire screen tun sieve panel

wedge wire screen tun sieve panel

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the wedge wire screen tun sieve panel

UBO introduce advanced technology , the construction method used is the latest, ultra clean TiG and plasma welding system. This method of construction guarantees cartridge integrity, eliminating the risk of bypass and the presence of extractables derived from any bonding agents.

<a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tun sieve panel

Application of wedge wire screen tun sieve panel

The stainless steel wedge wire lauter tun screen can be parts of deep well pumps or submersible pumps; can be used for water treatment equipment, environment protection, the sea water desalination, water softening treatment, oil and chemical processing; terminal filtration for petroleum products, filtration for chemical acid and soda liquid, for alcohol and other organic solvents recycle filtration.

Characteristic of wedge wire screen tun sieve panel

1.)wedge wire screen style isn't easy to be locked
2.)due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.)we are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) we have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles.

<a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tun sieve panel

The specifications of the wedge wire screen tun sieve panel:



<a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tun sieve panel

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings



<a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tun sieve panel

The Packaging and Transportation of the wedge wire screen tun sieve panel:

<a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> tun sieve panel
