stainless steel wire wrap screen
Category: | Wedge Wire Screen Panel |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | wedge wire screen |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

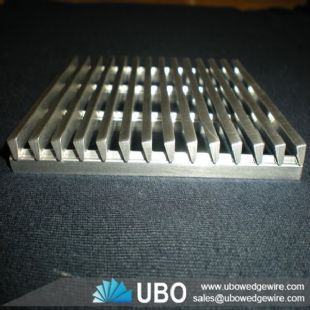

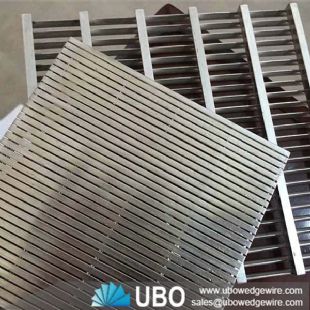

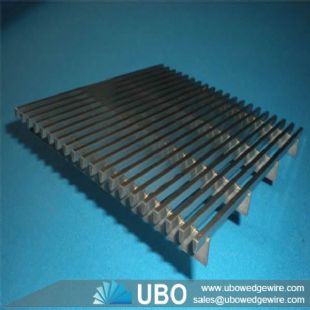

Detailed description of the stainless steel wire wrap screen
The stainless steel wire wrap screen can be manufactured with a variety of rectangular or round support rods. The wire width and relief angle is determined by weight per square foot and efficiency requirements. This screen decking magnifies vibration with drum-tight tension and withstands the violent vibrating action. These industrial profile screens are also used in fluid bed dryers, coolers and much more.
Application of stainless steel wire wrap screen
Vee wire screens are used for wide range of applications such as sizing, classification and de-watering in mining and other industries. These are used for coal & iron ore beneficiations when fitted on the vibratory machine.
Advantages of stainless steel wire wrap screen
A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.
The specifications of the stainless steel wire wrap screen:
Type 1 |
surface profile:triangle wire,support profile:triangle wire |
|
A1XH1 |
1.5X2.0,1.5X2.5,
2.0X3.5,3.0X4.5,
3.0X5.5,3.5X5.0mm |
|
S |
0.5-4.0mm |
|
A2XH2 |
2.0X3.5,3.0X4.5,
3.0X5.5,3.5X5.0,
5.0X10.0mm |
|
Type 2 |
surface profile:triangle wire, support profile:wedge wire |
|
A1XH1 |
1.5X2.0,1.5X2.5,
2.0X3.5,3.0X4.5,
3.0X5.5,3.5X5.0mm |
|
S |
0.5-4.0mm |
|
A2XH2 |
A2=2.2-3.0,H2=4.5-5.5mm |
|
P |
10-300mm |
