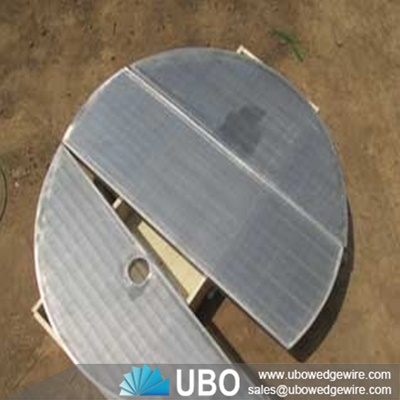

Wedge wire screen support grids

More Views

Wedge wire screen support grids

Category:Wedge Wire Screen Panel
Material:stainless steel
Properties:wedge wire screen
Application:Filtration

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire screen support grids

Wedge wire screen support grids can be designed for total load and operating temperature. The all-welded stainless steel construction produces high strength and extended service life suitable for many screening applications in numerous industries. Support grids are used in carbon filters, desulfurizers, molecular sieves, sand filters, gas sweeteners and lauter tanks.

Wedge wire screen support grids offer a relatively flat and smooth surface to reduce degradation of the media in down-flow processes. The high open area of the Wedge Wire screen provides excellent capacity.

Feature of Wedge wire screen support grids

They feature durable construction, precise open area, and are virtually non-clogging. For larger vessel diameters Longjia screen support grids are fabricated in segments to allow installation through a vessel man-way.

Arrangement & Installation of Wedge wire screen support grids

A support grid could be made out of parallel or pie shaped segments, each segment just resting on the beams or bolted to or welded to the next one. The joining bars could be flush or project above the screening surface. Support structure can be included for additional strength.
The support grids can be attached to the supporting structure by bolts fixed to the grid or part of the vessel itself.

Applications of Wedge wire screen support grids

Molecular sieve; Catalyst bed support; Ion exchange; Sand filters; False bottoms

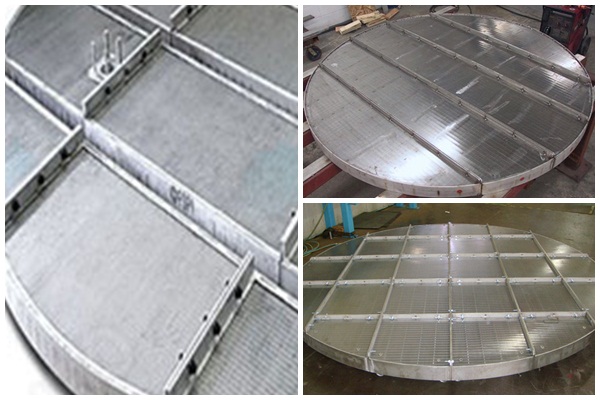

Wedge wire screen support grids

Specifications of Wedge wire screen support grids:

Wedge wire screen support grids

Matreial:stainless steel304,316,316L or as your requirement

Slot:0.2-1mm

OD:2500mm(profiled wire direction) as your requirment

Parts:5 fans wedge wire screen or as your request

Packaging and Transportation of Wedge wire screen support grids:

transportation
