wedge wire screen,wedge wire screens,wedge wire screen manufacturers

Water filter flat wedge wire screen plate

More Views

Water filter flat wedge wire screen plateWater filter flat wedge wire screen plateWater filter flat wedge wire screen plate

Water filter flat wedge wire screen plate

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Water filter flat wedge wire screen plate

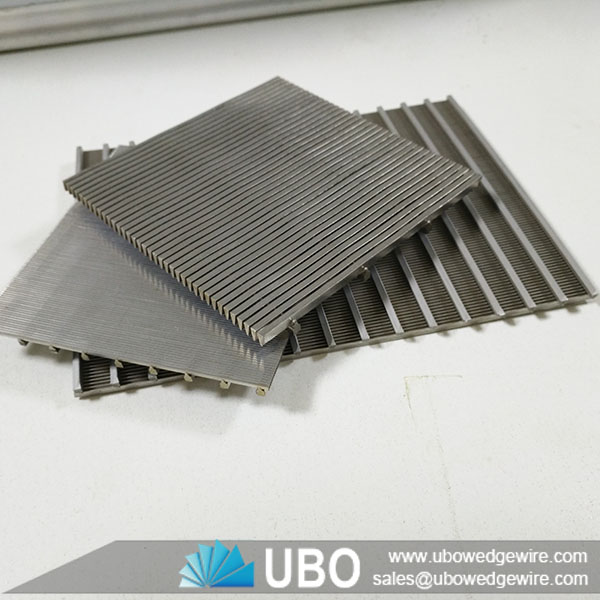

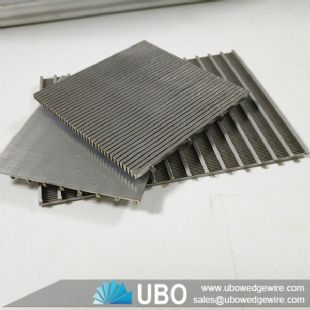

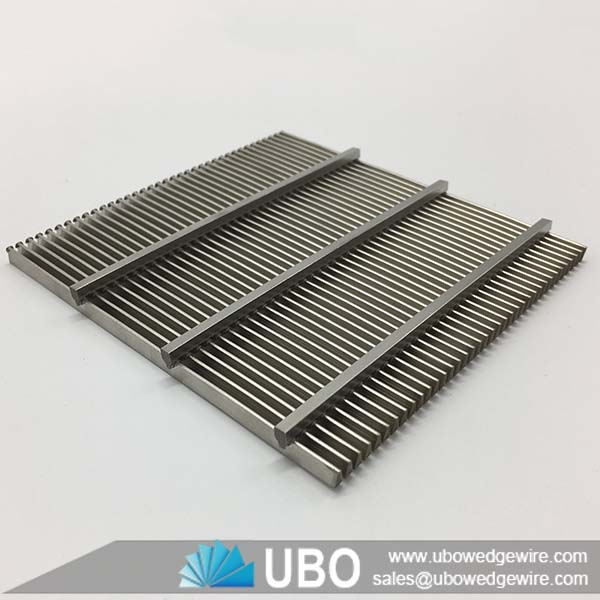

Water filter flat wedge wire screen plates are made in panel type from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.

Water filter flat wedge wire screen plate offer a perfectly flat and smooth surface with rectangular openings.This kind of wedge wire can replace traditional media like wire mesh cloth, perforated plate and other metal sifting materials as components for rotary screen, well screen, quarry screen.

Water filter flat <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> plate

Water filter flat <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> plate

Characteristics of Water filter flat wedge wire screen plate

1) continuous slot screens, stronger and more durable
2) more open area, very precise openings
3) virtually non-clogging and reduce media abrasion
4) easier installation and long-term operating and cost benefits

Application of Water filter flat wedge wire screen plate

Weled johnson wedge wire flat screen plate is used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centres or malls. They can be constructed to carry pedestrian traffic or much heavier traffic such as fork lifts or standard vehicular traffic.

Water filter flat <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> plate

Water filter flat <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> plate

The specifications of the Water filter flat wedge wire screen plate:

Water filter flat <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> plate

Wedge wire screen panel
Material: AISI304/316/316L,Galvanized low carton.
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot /opening Size 0.10 -- 6.00mm ,also can be customized as your request.
Lengt Can be customized as your request
Width 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement.

The Packaging and Transportation of the Water filter flat wedge wire screen plate:

Water filter flat <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> plate
