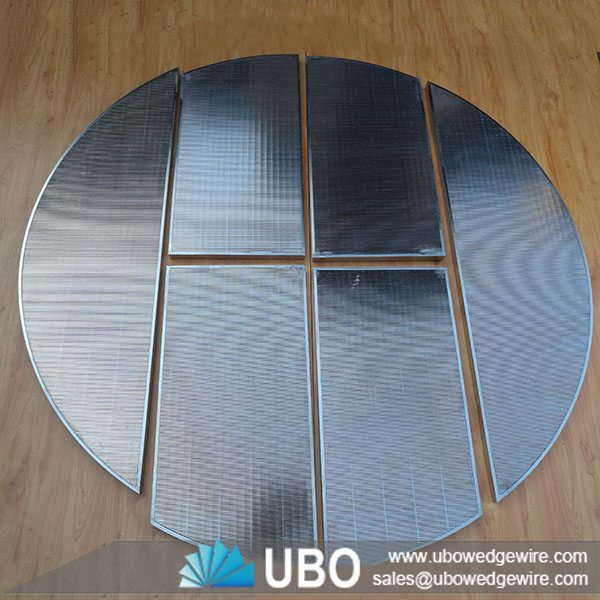

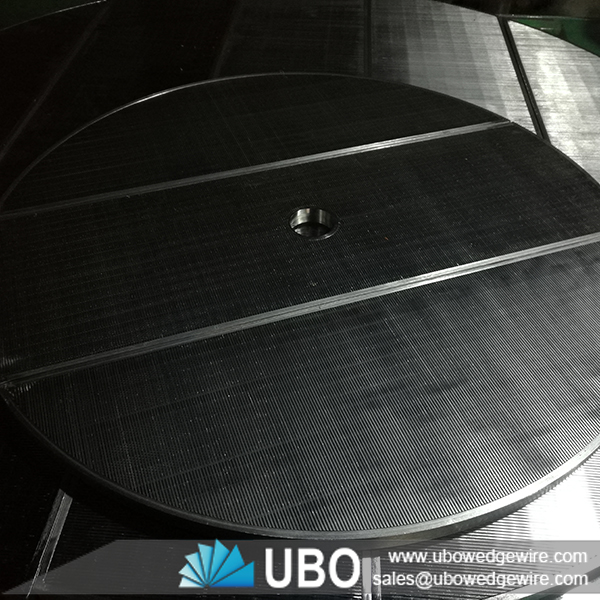

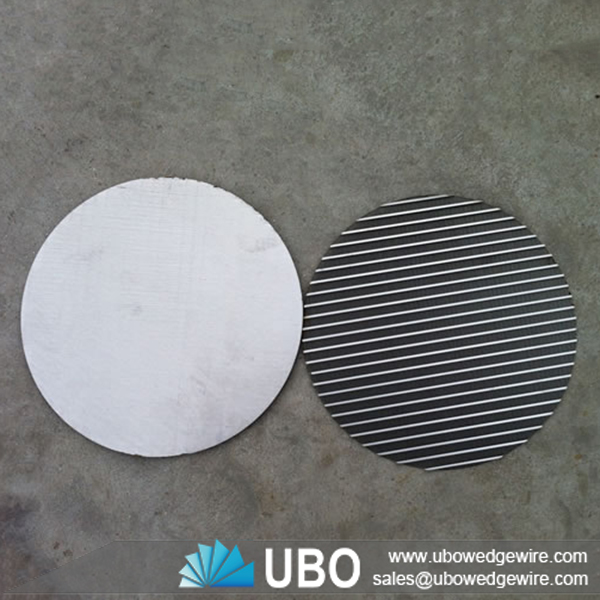

Stainless steel wedge wire round type lauter tun sieve screen panel

More Views

Stainless steel wedge wire round type lauter tun sieve screen panelStainless steel wedge wire round type lauter tun sieve screen panelStainless steel wedge wire round type lauter tun sieve screen panel

Stainless steel wedge wire round type lauter tun sieve screen panel

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:lauter tun screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Stainless steel wedge wire round type lauter tun sieve screen panel

Stainless steel wedge wire round type lauter tun sieve screen panels are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a stainless steel circle screen plate on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each wedge wire flat panel screen can be manufactured at a tilt to better serve your needs.

Stainless steel wedge wire round type lauter tun sieve screen panel

Stainless steel wedge wire round type lauter tun sieve screen panel

Application of Stainless steel wedge wire round type lauter tun sieve screen panel

• Lauter tun screen
• Mash tun screen
• False bottom screens
• Custom made screens for retro-fit or new installations

Advantages of Stainless steel wedge wire round type lauter tun sieve screen panel

A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A ’V’ shaped profile wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening

Stainless steel wedge wire round type lauter tun sieve screen panel

Stainless steel wedge wire round type lauter tun sieve screen panel

Specifications of Stainless steel wedge wire round type lauter tun sieve screen panel:

Stainless steel wedge wire round type lauter tun sieve screen panel

Normal Name

Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc.

Diameter Range

(MM)

200mm To 2500mm. Diameter Customized

Normal Diameter

(MM)

29”, 30”, 35”, 37”, 40”, 45”, 47”, 59”, 63”, 74”, Etc

Normal Slot

(MM)

0.7mm, 0.75mm, 0.8mm, 1.0mm, customized

Normal Thickness (MM)

8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized.



Sections & shape

1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized

Wedge wire

(MM)

2x4MM Wedge Wire, 3x5MM Wedge Wire

Support Rod

 (MM)

3x5MM V shaped Support Rod, 3x5mm Square Support Rod

Strengthen Rod

(MM)

Thickness and Height according to the diameter and screen thickness

Note

Usually customized.

Packaging and Transportation of Stainless steel wedge wire round type lauter tun sieve screen panel:

Stainless steel wedge wire round type lauter tun sieve screen panel
