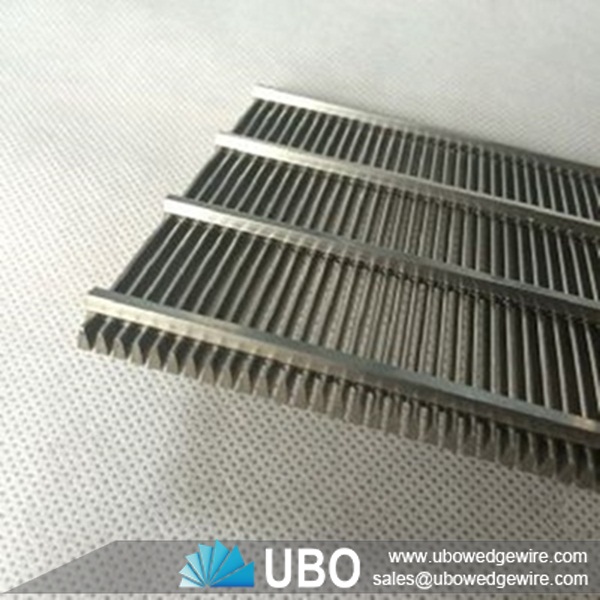

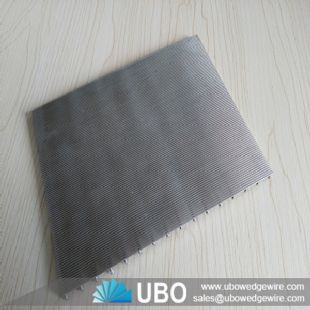

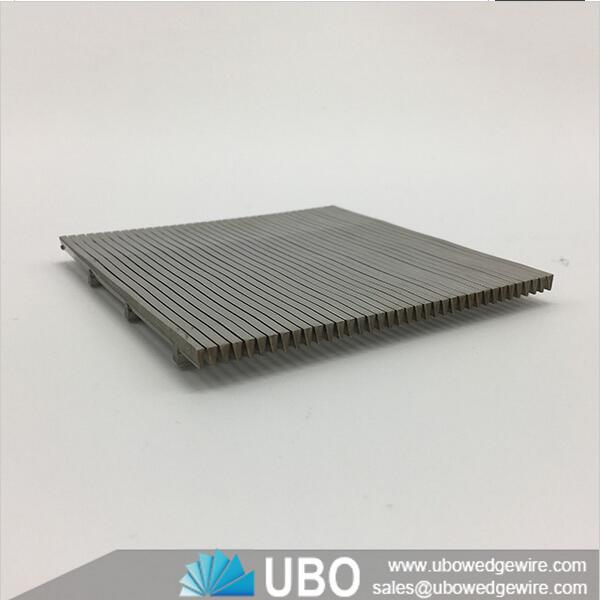

Slotted wedge wire screen panel

More Views

Slotted wedge wire screen panelSlotted wedge wire screen panelSlotted wedge wire screen panel

Slotted wedge wire screen panel

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Slotted wedge wire screen panel

Slotted wedge wire screen panel consist of Vshape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.
Meanwhile, the slot can change according to the real condition of the earth.If you are interested in our product ,please contact us, and for more information.

Slotted <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> panel

Application of Slotted wedge wire screen panel

Vibrating screen decking,cross flow sieves, surface water intake screen, mineral processing, fish diversion screen panel, hatchery screens, food processing, and flooring for malt kiln,germination, and grain drying.

Characteristic of Slotted wedge wire screen panel

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles.

Slotted <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> panel

The specifications of the Slotted wedge wire screen panel:

Slotted <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> panel

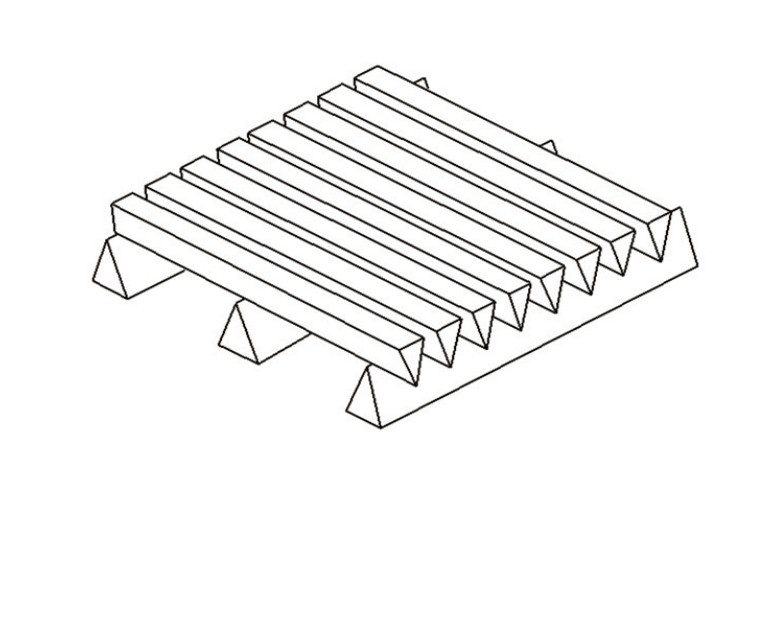

Type 1

surface profile:triangle wire,support profile:triangle wire

A1XH1

1.5X2.0,1.5X2.5,

2.0X3.5,3.0X4.5,

3.0X5.5,3.5X5.0mm

 Slotted <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> panel

S

0.5-4.0mm

A2XH2

2.0X3.5,3.0X4.5,

3.0X5.5,3.5X5.0,

5.0X10.0mm

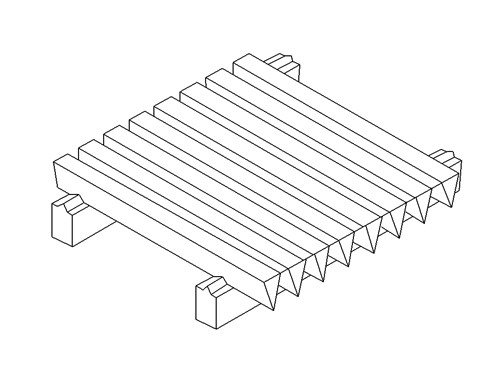

Type 2

surface profile:triangle wire, support profile:wedge wire

A1XH1

1.5X2.0,1.5X2.5,

2.0X3.5,3.0X4.5,

3.0X5.5,3.5X5.0mm

 Slotted <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> panel

S

0.5-4.0mm

A2XH2

A2=2.2-3.0,H2=4.5-5.5mm

P

10-300mm

The Packaging and Transportation of the Slotted wedge wire screen panel:

Slotted <a href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> panel

Orders and Returns

If you are interested in receiving more information or have a question regarding any of our products. Please fill out the form below and we will contact you within 24-48 hours.
