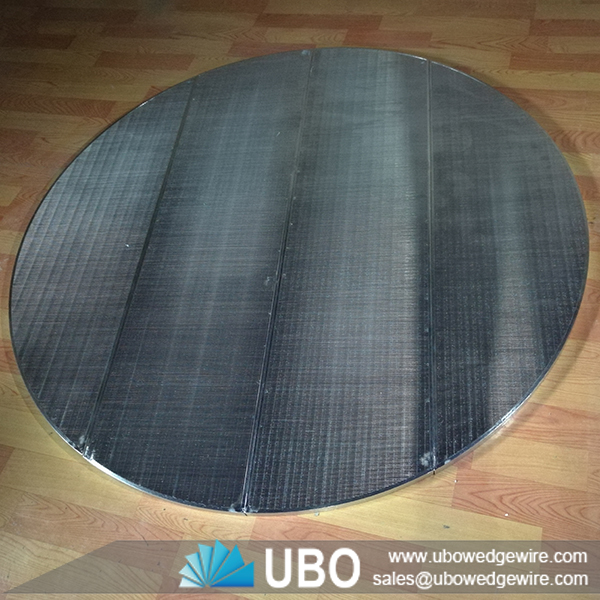

Lauter tun screen plate

More Views

Lauter tun screen plateLauter tun screen plateLauter tun screen plate

Lauter tun screen plate

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:lauter tun screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Lauter tun screen plate

Lauter tun screen plate for beer brewing are the most commonly using screen for filtration and separation in liquid/gas, water wasting, mining, food and so on. We have flat type, cylinder type, basket type and slope type according to the screen type. These products also can be called flat welded screen panel, cylinder wedge screen and sieve bend screen.

Lauter tun screen plate consist of profile wire and support rods with the materials of galvanized steel, low carbon steel and stainless steel 304, 316. Wedge wire screen can apply in chemical, oil, gas, food or beverage, waste water management, mining or coal separation. Whatever your application is, we can provide you with OEM wedge wire screen products as your own requirement, including the material, the width, the length, the shape and other special rquire.

Lauter tun screen plate

Application of Lauter tun screen plate

1. Mineral processing;
2. Hatchery screens ;
3. Food processing ;
4. Surface water intake screens ;
5. Fish diversion screen panels ;
6. Vibrating or static screen decking ;
7. Flooring for malt kiln, germination, and grain drying.

Characteristic of Lauter tun screen plate

1. A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
2. A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
3. A uniform and efficient well development due to the continuous slot opening.
4. Offering great strength. precision, long service life

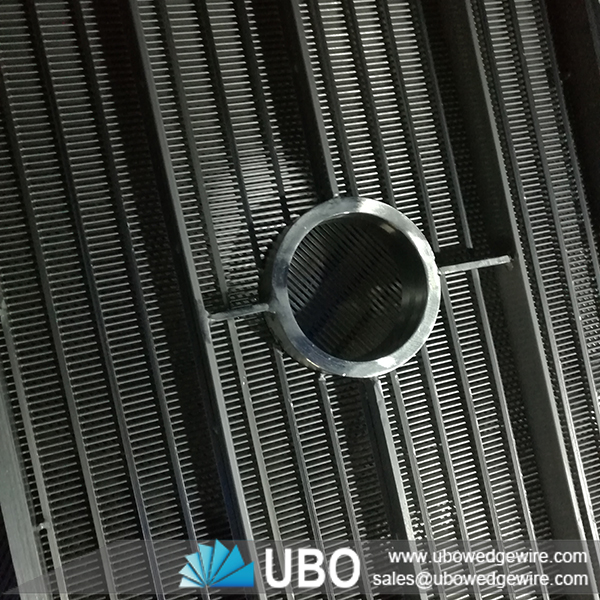

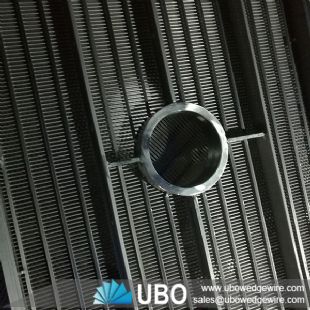

Lauter tun screen plate

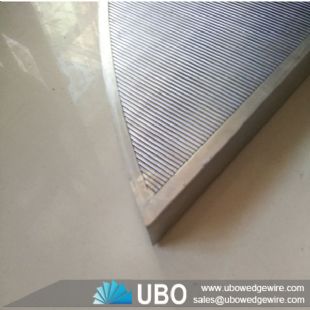

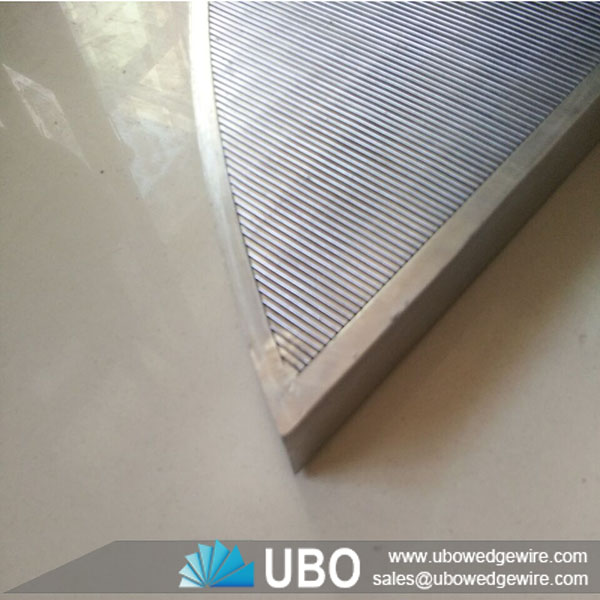

Lauter tun screen plate

The specifications of the Lauter tun screen plate:

Lauter tun screen plate

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

The Packaging and Transportation of the Lauter tun screen plate:

Lauter tun screen plate
