Quality Wedge Wire Screen Manufacturer in China

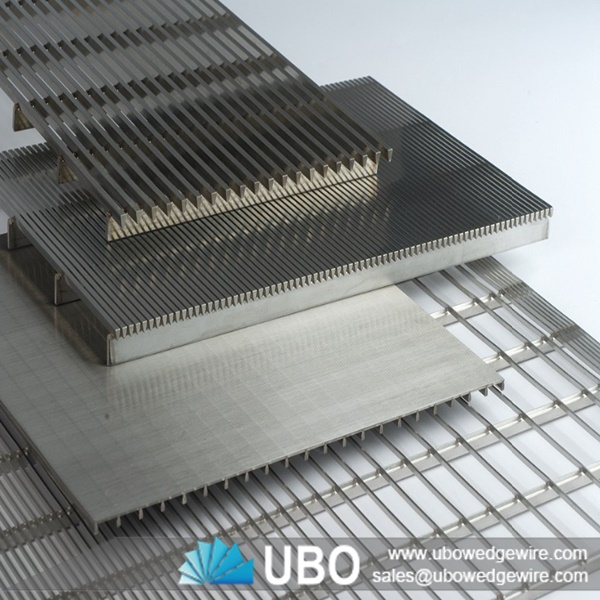

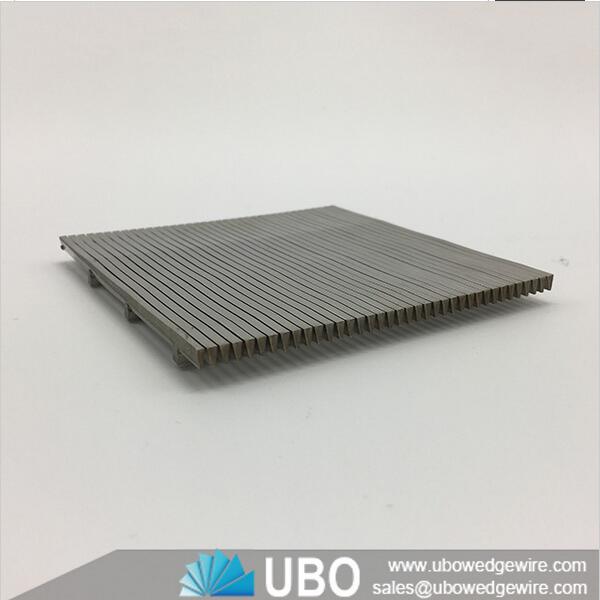

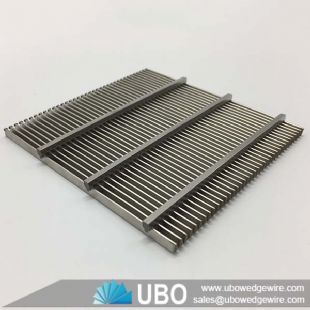

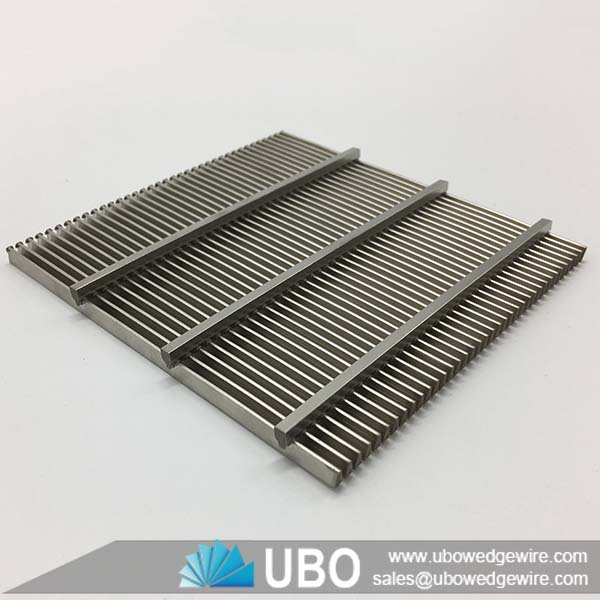

Flat stainless steel profile wire wedge screen panels

More Views

Flat stainless steel profile wire wedge screen panelsFlat stainless steel profile wire wedge screen panelsFlat stainless steel profile wire wedge screen panels

Flat stainless steel profile wire wedge screen panels

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen panel
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Flat stainless steel profile wire wedge screen panels

Flat stainless steel profile wire wedge screen panels are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a Wedge Wire wedge wire water well filter screen on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each wedge wire flat panel screen can be manufactured at a tilt to better serve your needs.

Flat stainless steel profile wire wedge screen panels

Advantages of Flat stainless steel profile wire wedge screen panels

A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone (the aquifer)

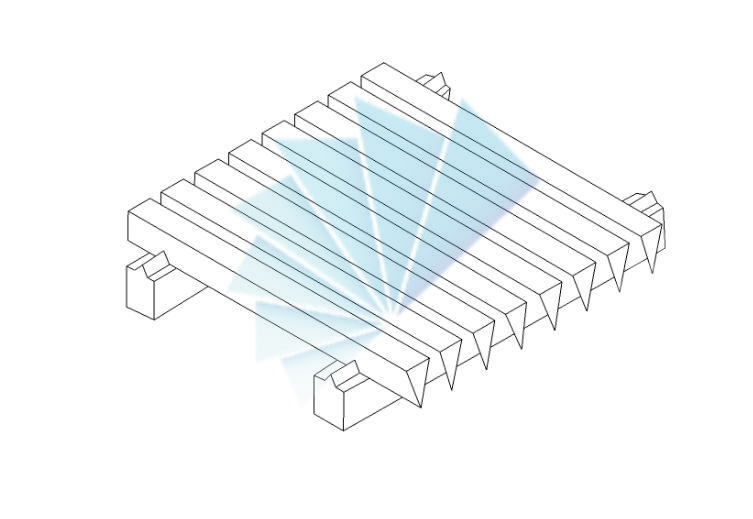

A "V" shaped profile wire which avoids clogging and ensures an uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.

Application of Flat stainless steel profile wire wedge screen panels

1.) Widely used in vairous kinds of medium filtering
2.) As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water treatment; softening treatment;
3.) The petroleum industry: the petroleum product terminal filters and the chemical acid; the alkali liquid filters, the ethyl alcohol;
4.) The organic solution recycling filter

Flat stainless steel profile wire wedge screen panels

Specifications of Flat stainless steel profile wire wedge screen panels:

Flat stainless steel profile wire wedge screen panels
Material: AISI304/316/316L,Galvanized low carton.
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot /opening Size 0.02 -- 6.00mm ,also can be customized as your request.
Lengt Can be customized as your request
Width 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement.



Flat stainless steel profile wire wedge screen panels

Packaging and Transportation of Flat stainless steel profile wire wedge screen panels:

Flat stainless steel profile wire wedge screen panels
