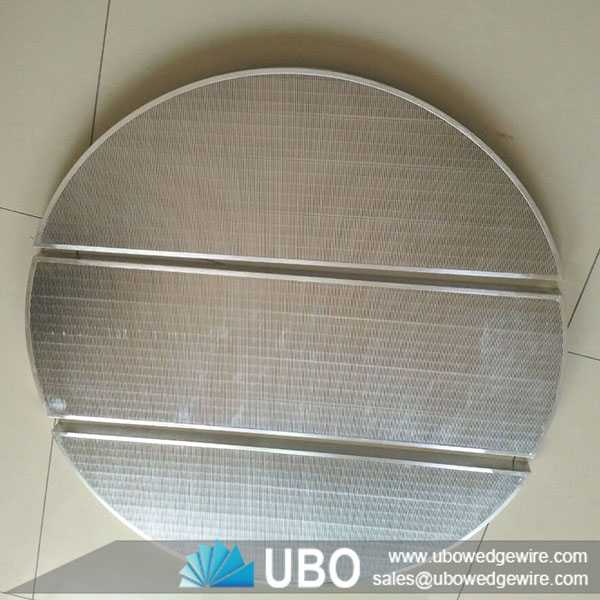

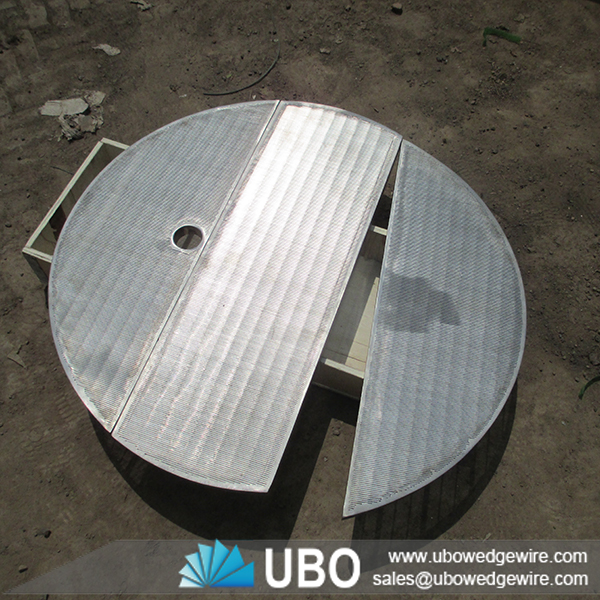

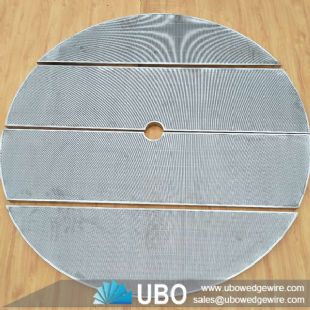

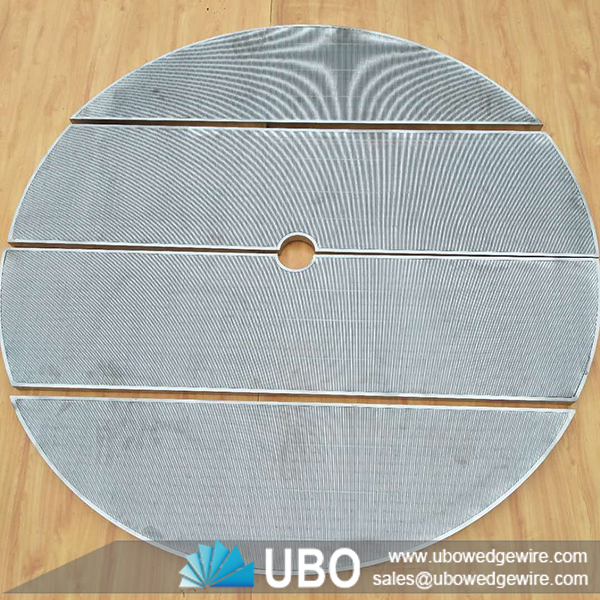

AISI 304Lauter tun screen used for beer equipment false bottom

More Views

AISI 304Lauter tun screen used for beer equipment false bottomAISI 304Lauter tun screen used for beer equipment false bottomAISI 304Lauter tun screen used for beer equipment false bottom

AISI 304Lauter tun screen used for beer equipment false bottom

Category:Wedge Wire Screen Panel
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:lauter tun screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the AISI 304Lauter tun screen used for beer equipment false bottom

AISI 304Lauter tun screen used for beer equipment false bottom in a lauter tun in many breweries. The lauter tun screen sits on a ledge that is positioned on the inside diameter of the tank. It may also be necessary to have support beams depending on loading and tank diameter.

AISI 304Lauter tun screen
used in making of water well screen. AISI 304Lauter tun screen is made up of supporting rods and wire screening strips. The supporting rod can be round wire, triangular wire or trapezoid wire. The screening filter is made of triangular wire (V-shaped wire).

AISI 304Lauter tun screen used for beer equipment false bottom

AISI 304Lauter tun screen used for beer equipment false bottom

Advantage of AISI 304Lauter tun screen used for beer equipment false bottom

1. Continuous slot screens, stronger and more durable
2. More open area, very precise openings
3. Virtually non-clogging and reduce media abrasion
4. Easier installation and long-term operating and cost benefits


Application of AISI 304Lauter tun screen used for beer equipment false bottom

1. Mineral processing;
2. Hatchery screens ;
3. Food processing ;
4. Surface water intake screens ;
5. Beer brewery
6. Vibrating or static screen decking ;
7. Flooring for malt kiln, germination, and grain drying.

AISI 304Lauter tun screen used for beer equipment false bottom

AISI 304Lauter tun screen used for beer equipment false bottom

The specifications of the AISI 304Lauter tun screen used for beer equipment false bottom:

AISI 304Lauter tun screen used for beer equipment false bottom



Material:

stainless steel (304,316,316Letc.)

Wedge Wire (mm):

Width : 2

Height:4

Support Rod (mm):

Width : 3

Height : 5

Diameter:

37'',45'',47'',54'',59'',74'',900mm,1.2m,1.6m,1.899m etc

Bearing rod:

3*15,3*20,3*25

Frame

8*25,8*30

Slot size:

0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.

Note:

Other specifications can be customized according to your requirement.

The Packaging and Transportation of the AISI 304Lauter tun screen used for beer equipment false bottom:

AISI 304Lauter tun screen used for beer equipment false bottom
