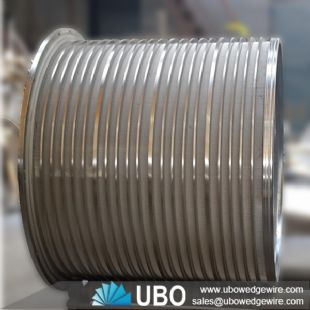

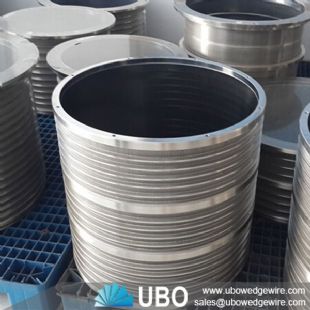

wedge wire basket cylinder and tube

More Views

wedge wire basket cylinder and tubewedge wire basket cylinder and tubewedge wire basket cylinder and tube

wedge wire basket cylinder and tube

Category:Wedge Wire Screen Basket
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of wedge wire basket cylinder and tube

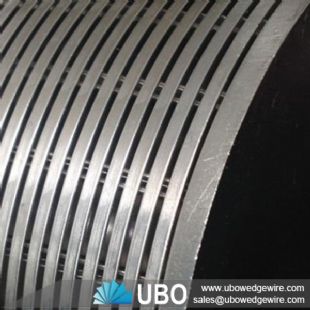

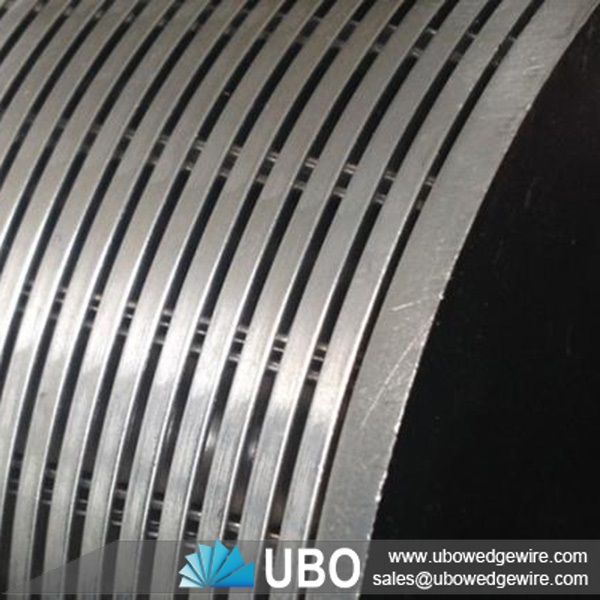

The wedge wire basket cylinder and tube for pulp and paper consist of V-shape profile wire and the longitudinal support rods.The V wire is welded to the rods and produces a rigid unit that has high strength and minimum weight.So Water Well Screens has sturdy constriction and good mechanical property.

Feature of wedge wire basket cylinder and tube

It is suitable to be as fine screen for waste paper.the screen cylinder gains long life and high throughput with the bar structure.it is convenient to clean the screen slot with high pulsing frequency in the structure of multifoil or drum rotor. The multifoil rotor promotes the axial mixture for the stock to avoid stock thickening in the screening process.

Good adaptability with high production capability.
High production efficiency with high flow speed.
High removal of the adhesive materials.
Lower power consumption.simple structure and easy maintenance.
The capability may be different according to different pulp variety and concentration,so the capability in the below chart is only used for choosing the model.

Characteristics of wedge wire basket cylinder and tube

High weld strength
Higher accuracy and consistency of wire gap
Lower surface roughness
Single piece cylinder construction (As opposed to welded patched cylinders)
Axially-seamless cylinder construction

Application of wedge wire basket cylinder and tube

wedge wire screen is widely used in filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens, lauter tun screens,many other liquids, solids separation applications.

wedge wire basket cylinder and tube

Specifications of wedge wire basket cylinder and tube:

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

wedge wire basket cylinder and tube

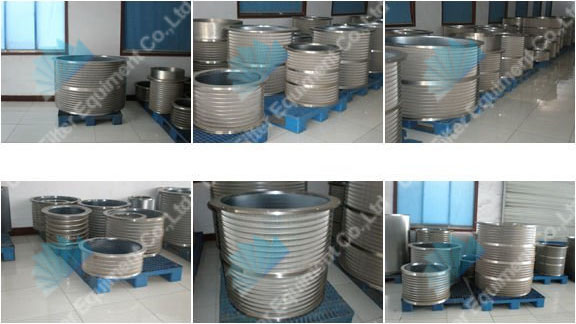

Packaging and Transportation of wedge wire basket cylinder and tube:
