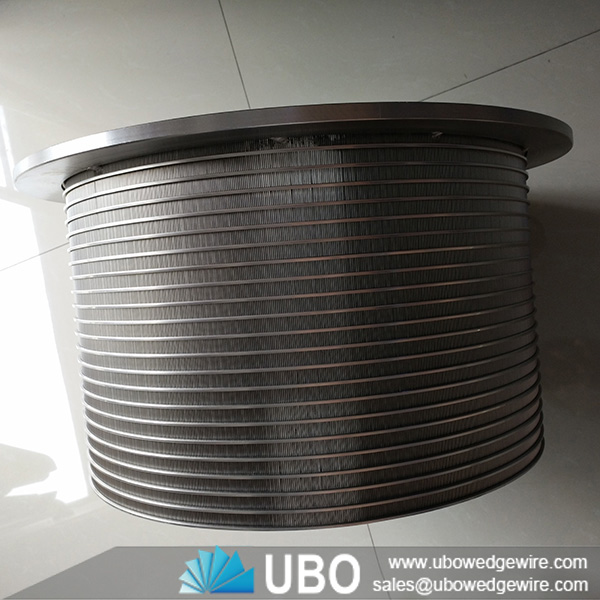

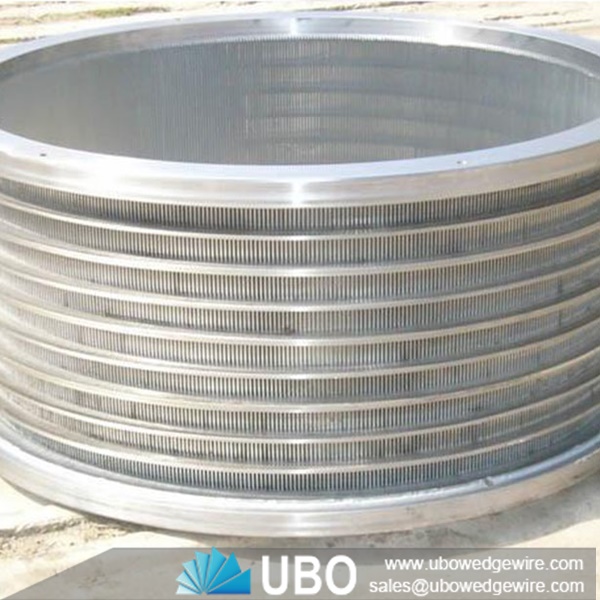

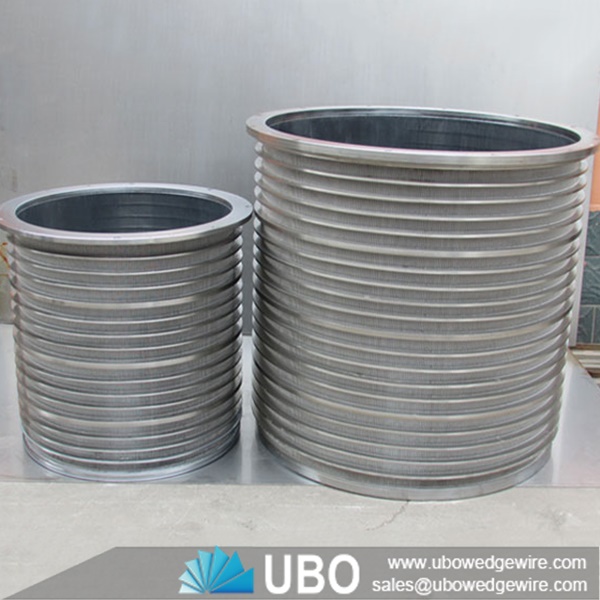

V-wire pressure screen slotted basket
Category: | Wedge Wire Screen Basket |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | Wedge Wire Screen Basket |
Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of V-wire pressure screen slotted basket
Wedge wire screen strainer baskets have flat type, cylinder type, slope type and basket type. So Wedge wire screen is called as flat welded screen panel, cylinder wedge screen and sieve bend screen basket.
Wedge wire screen baskets are producing by profile wire and support rods with the materials of galvanized steel, stainless steel and low carbon steel.
Application for V-wire pressure screen slotted basket:
widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.
Advantages for V-wire pressure screen slotted basket :
1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2.A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.
Working Principle for V-wire pressure screen slotted basket:
Wedge wire screen strainer baskets under the rotating function of drum sieve and rotating cylinder and centrifugation effect. The machine will separate the qualified pulp and non-qualified pulp.It consist of cylinder, cylinder cover, sieve drum, rotary cylinder,base and transmission parts, etc.
Specifications of V-wire pressure screen slotted basket:
size |
inner diameter |
outer diameter |
|||
in
|
mm
|
in
|
mm
|
in
|
mm
|
2
|
51
|
2
|
51
|
25/8 |
67 |
3
|
76
|
3
|
76
|
35/8 |
92
|
4
|
102
|
4
|
102
|
45/8 |
117
|
5
|
127
|
5
|
127
|
55/8 |
143
|
6
|
152
|
6
|
152
|
65/8 |
168
|
8
|
203
|
8
|
203
|
85/8 |
219
|
10
|
254
|
10
|
254
|
103/4 |
273
|
12
|
305
|
10
|
305
|
123/4 |
324
|
