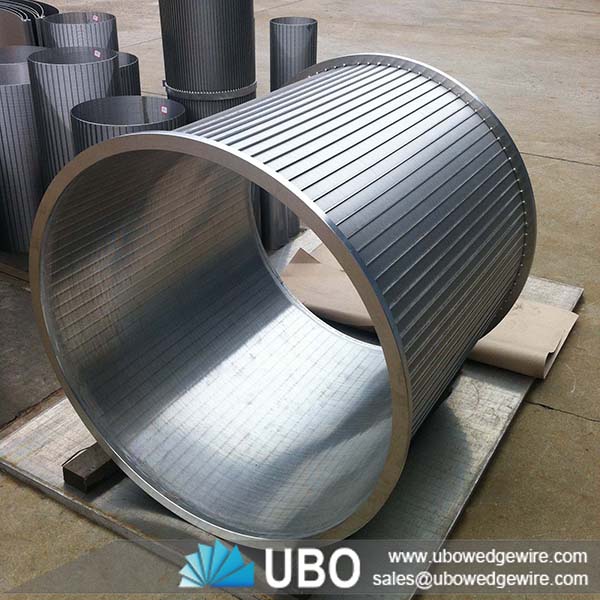

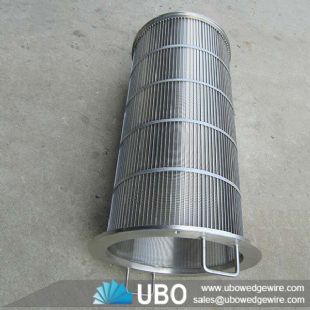

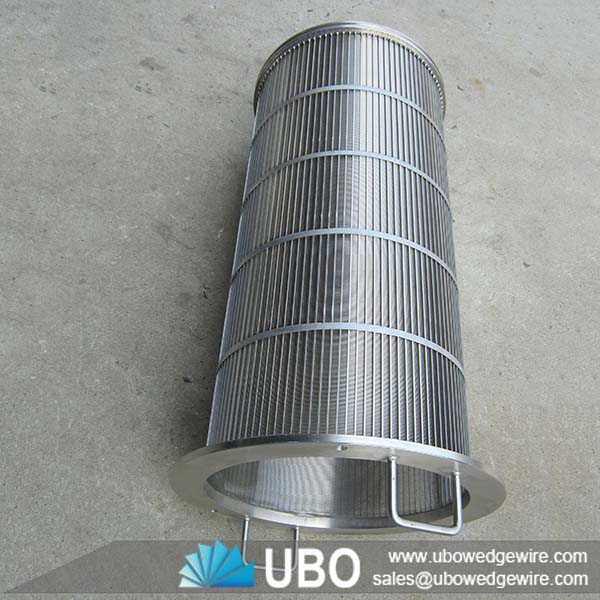

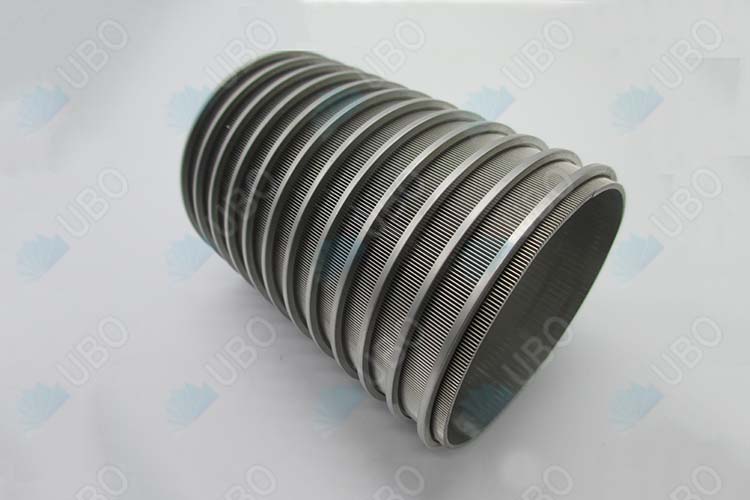

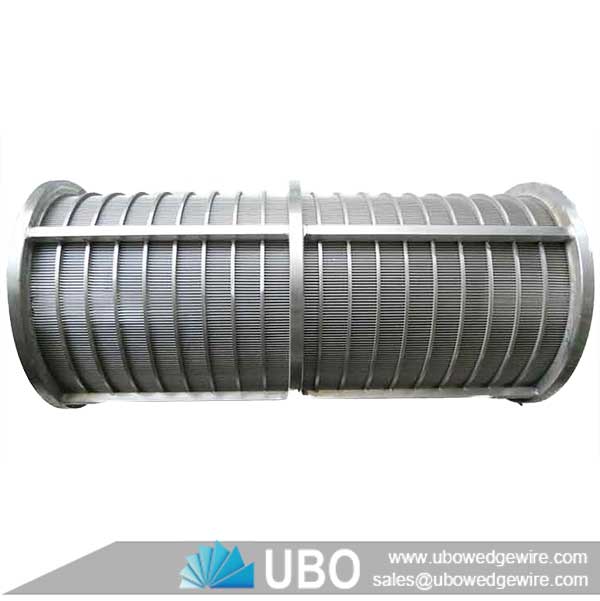

Stainless steel wedge wire drum screen wedge wire basket cylinder

More Views

Stainless steel wedge wire drum screen wedge wire basket cylinderStainless steel wedge wire drum screen wedge wire basket cylinderStainless steel wedge wire drum screen wedge wire basket cylinder

Stainless steel wedge wire drum screen wedge wire basket cylinder

Category:Wedge Wire Screen Basket
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:wedge wire screen basket
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless steel wedge wire drum screen wedge wire basket cylinder

UBO Filter Company manufactures Stainless steel wedge wire drum screen wedge wire basket cylinder for Pulp, paper and recycling industries. Customers in these industries use our screens for water clarification, cleaning, dewatering, pulp screening and fractionation, fiber retention, drying and other liquid/solid separation processes.

Stainless steel wedge wire drum screen wedge wire basket cylinder

Stainless steel wedge wire drum screen wedge wire basket cylinder

Application of Stainless steel wedge wire drum screen wedge wire basket cylinder


The wedge wire screen cylinders can be used as rotary screens.
Wedge wire screen cylinders are widely used in the mine, coal, mineral and other applications for heavy duty and high load filtering, sizing and screening.

Feature of Stainless steel wedge wire drum screen wedge wire basket cylinder

It is a common screen basket. Its main feature is that high mechanical strength, smoothness and tolerance sccuracy. It is suitable for the high consistency pulp screen and before the head box.

Stainless steel wedge wire drum screen wedge wire basket cylinder after mechanical polishing. Good processing technology ensures fit precision of wedge bar and reinforce ring and make sure the evenness of screen cut.

Stainless steel wedge wire drum screen wedge wire basket cylinder

Stainless steel wedge wire drum screen wedge wire basket cylinder

The specifications of the Stainless steel wedge wire drum screen wedge wire basket cylinder:



Stainless steel wedge wire drum screen wedge wire basket cylinder

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

The Packaging and Transportation of the Stainless steel wedge wire drum screen wedge wire basket cylinder:

Stainless steel wedge wire drum screen wedge wire basket cylinder
