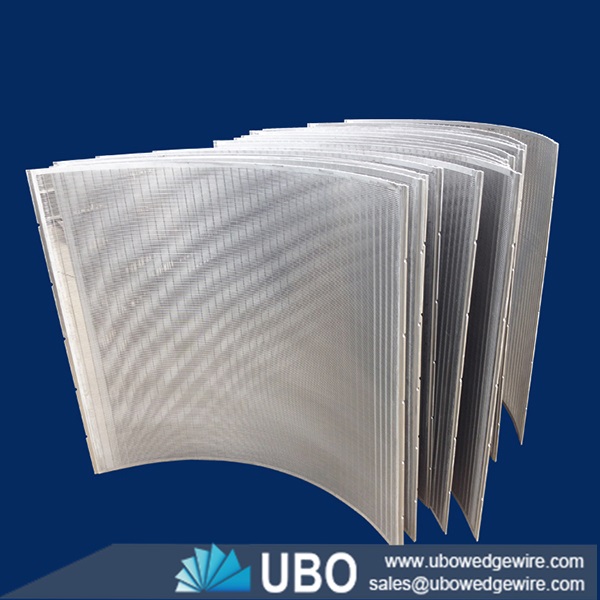

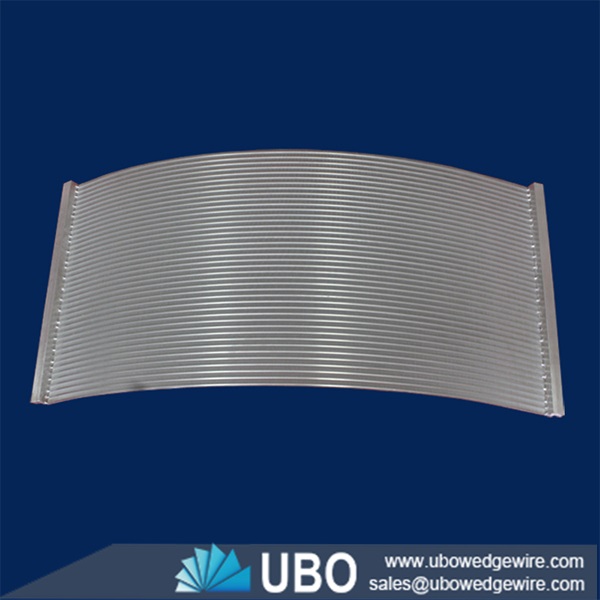

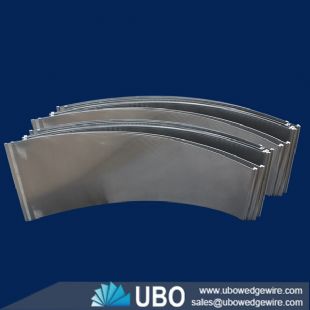

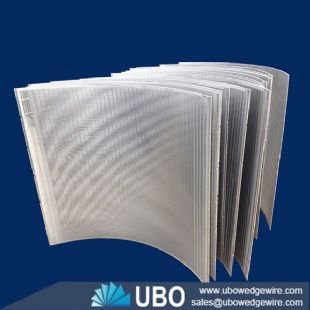

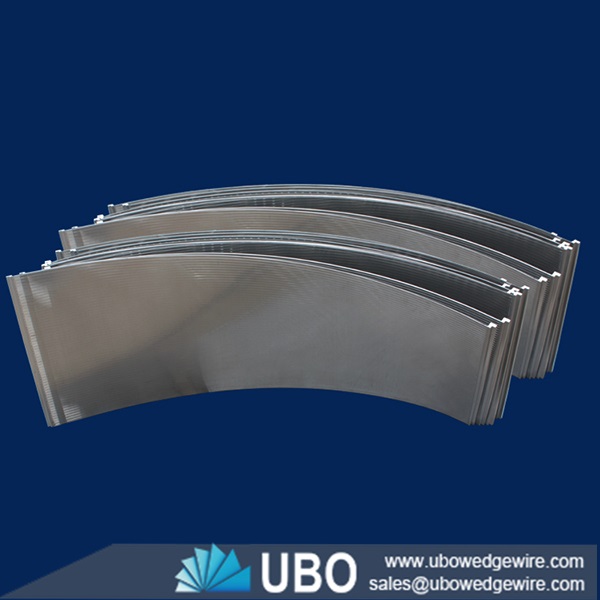

stainless steel wire wrap cross flow sieve bend screen

More Views

stainless steel wire wrap cross flow sieve bend screenstainless steel wire wrap cross flow sieve bend screenstainless steel wire wrap cross flow sieve bend screen

stainless steel wire wrap cross flow sieve bend screen

Category:Wedge Wire Application
Material:stainless steel 302,304,316, 316L
Properties:Sieve Bend Screen
Application:food processing, malting, floor grating, wall covers and ventilating systems.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of stainless steel wire wrap cross flow sieve bend screen

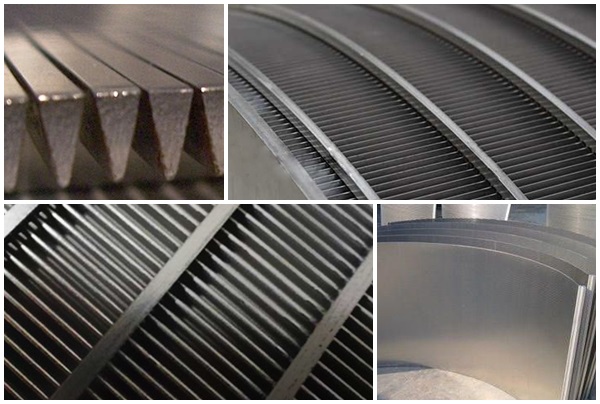

    stainless steel wire wrap cross flow sieve bend screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).

stainless steel wire wrap cross flow sieve bend screen

Application for stainless steel wire wrap cross flow sieve bend screen:

Wedge Wire screens can be used for wide range of applications such as food processing, malting, floor grating, wall covers and ventilating systems.

Features for stainless steel wire wrap cross flow sieve bend screen:

Low Headroom - only 1.1 metres (44") tall for the 900 mm arc length unit.
Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.

productive process for stainless steel wire wrap cross flow sieve bend screen:

stainless steel wire wrap cross flow sieve bend screen
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Advantage for stainless steel wire wrap cross flow sieve bend screen:

1 Excellent roundness
2 Very good slot width precision
3 High mechanical load capacity
4 No form closure connection that would allow vibration of the profiled bars
5 Automated welding process for high-precision manufacturing
6 Perfectly adjusted screen basket profiles
7 Available for all screens
8 Surface finishing as required

stainless steel wire wrap cross flow sieve bend screen

Specifications of stainless steel wire wrap cross flow sieve bend screen:

stainless steel wire wrap cross flow sieve bend screen

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Packaging and Transportation of stainless steel wire wrap cross flow sieve bend screen:

stainless steel wire wrap cross flow sieve bend screen
