Wedge wire welding curve screen panel

More Views

Wedge wire welding curve screen panelWedge wire welding curve screen panelWedge wire welding curve screen panel

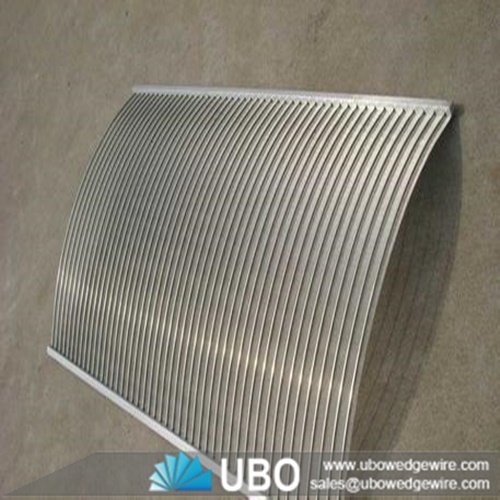

Wedge wire welding curve screen panel

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen
Application:water treatment, oilfield, mining, food industry, chemical industry, papermaking industry, decoration.

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Wedge wire welding curve screen panel

Wedge wire welding curve screen panel  are made of stainless steel wedge wires. They are consist of a concave curved profile wire screen, which are inserted into a stainless steel frame.

The V-shaped wire can be made in different height and width to address various strength application, meanwhile, the spacing of individual slots can be varied during fabrication if geologic conditions require these variations in a screen's construction.

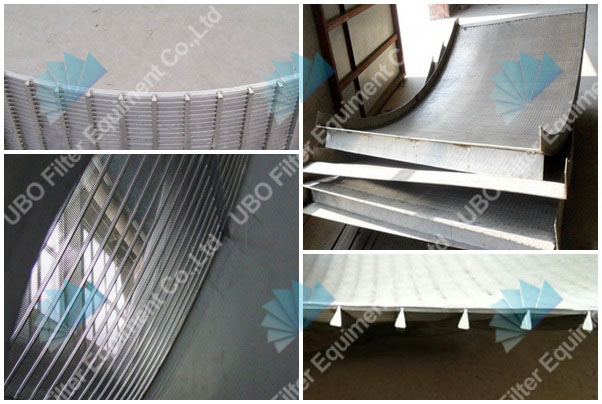

Wedge wire welding curve screen panel

Advantages of Wedge wire welding curve screen panel

-- High strength

-- Good resistance to abrasion and corrosion;

-- High rigidity;

-- Good in filtration and fluidity;

-- Flat panel surface;

-- Fairly well precision and roundness;

-- Long work time.

-- Easy to clean and back wash;

-- Uniform gap.

Advantages of Wedge wire welding curve screen panel

1) A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.

2) A Vshaped profile wire which avoids clogging and ensures an uninterrupted flow.

3) A uniform and efficient well development due to the continuous slot opening.

4) Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.

5) Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Applications of Wedge wire welding curve screen panel

The wedge wire welding curve screen panelare mainly used for dewatering, sizing and waste water cleanup applications. They can be used in various fields, such as:

-- Sewage treatment.

-- Laundry wash water cleanup.

-- Poultry, fish, fruit and vegetable waste water processing.

-- Minerals processing.

-- Paper production.

-- Textile plants.

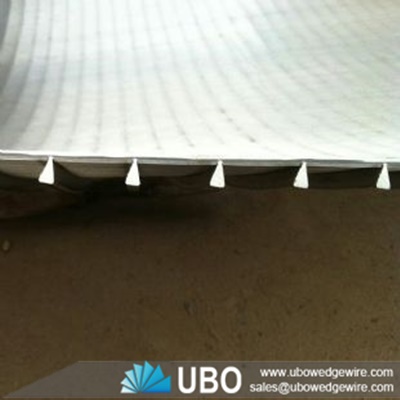

Wedge wire welding curve screen panel

Specifications of Wedge wire welding curve screen panel:

Material:stainless steel

Type:stainless steel sieve bend screen

specification
sieve plate model sieve plate size(mm) size parameter(mm)
legth width height slot width
PHTS9 1310 430 40 16 0.5 2.2
PHTS7.5 1330 470 40 12 1 2.2
PHTS9 650 890 54 16 0.50-0.42 2.2
PHTS12 470 1500 40 16 0.5 2.2
PHTS30 958 626 40 48 0.5 1.6
2.2
we can according to your need to produce

Wedge wire welding curve screen panel

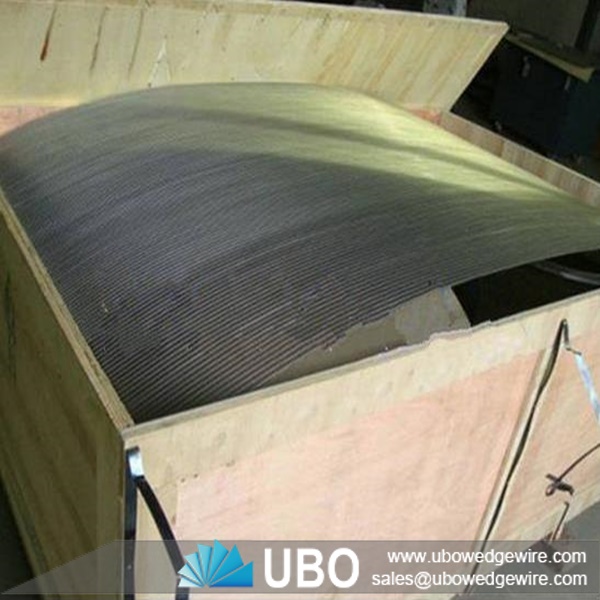

Packaging and Transportation of Wedge wire welding curve screen panel:

transportation
