Wedge wire water well screen cylinder strainer

More Views

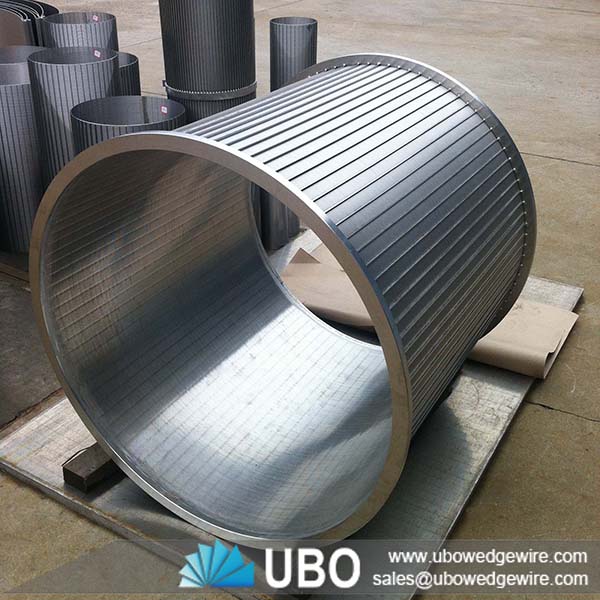

Wedge wire water well screen cylinder strainerWedge wire water well screen cylinder strainerWedge wire water well screen cylinder strainer

Wedge wire water well screen cylinder strainer

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen cylinder
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge wire water well screen cylinder strainer

Wedge wire water well screen cylinder strainer is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).

We offer a reliable and efficient range of Wedge wire water well screen cylinder strainer. Our offered products are extensively demanded by various industries and are manufactured in accordance with the industry set norms and guidelines. Post-production, we test each product on various stages to give our clients.

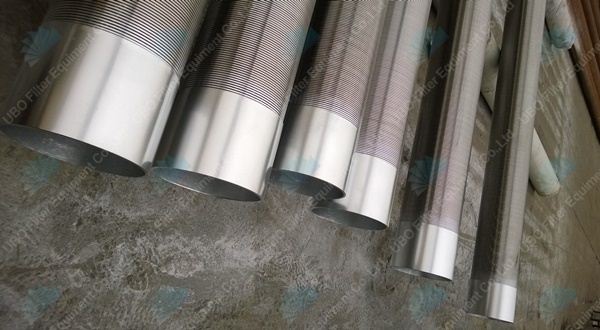

Wedge wire water well screen cylinder strainer

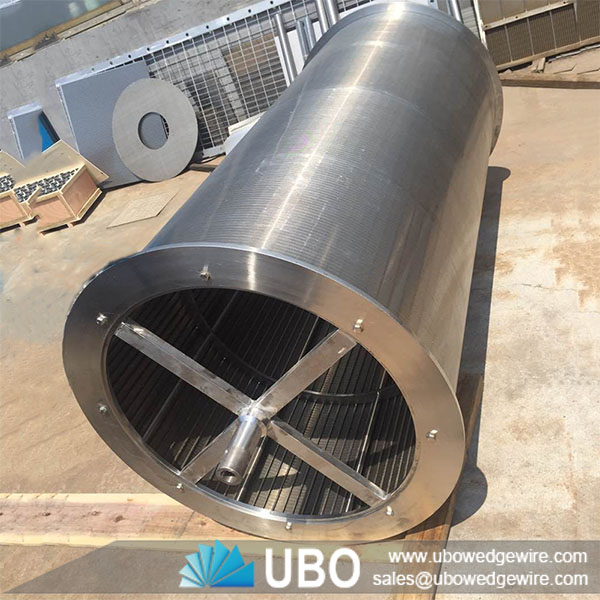

Wedge wire water well screen cylinder strainer

Chracteristics  of Wedge wire water well screen cylinder strainer

Wedge wire water well screen cylinder strainer is made up of Vee-shaped wire and round rod in each intersection welded together.
Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface.
The V-shaped openings, designed to be non-clogging, are narrowest at the outer face and widen inwardly.It has the firm structure, high temperature resistant, corrosion resistance, good mechanical performance, long service life, safe and reliable, etc.
It also can be used for a variety of medium.

Application of Wedge wire water well screen cylinder strainer

Wedge wire water well screen cylinder strainers are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water, oil or gas filter and other filtration equipment.

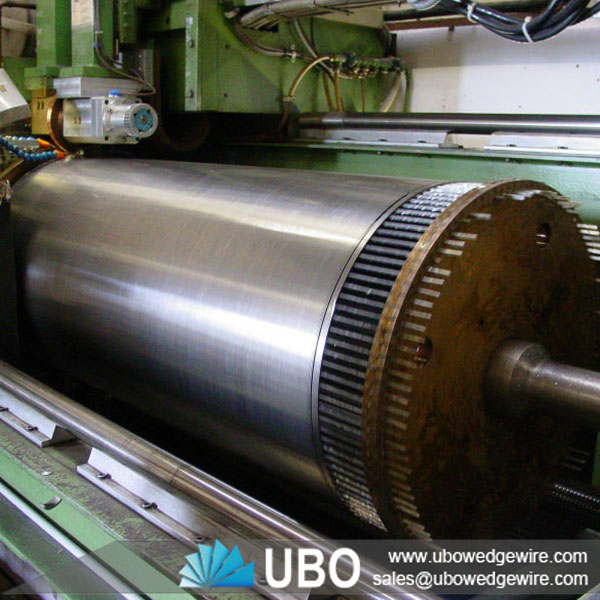

Wedge wire water well screen cylinder strainer

The specifications of the Wedge wire water well screen cylinder strainer:

Wedge wire water well screen cylinder strainer

Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

The Packaging and Transportation of the Wedge wire water well screen cylinder strainer:

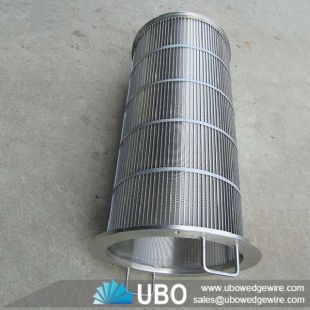

Wedge wire water well screen cylinder strainer
