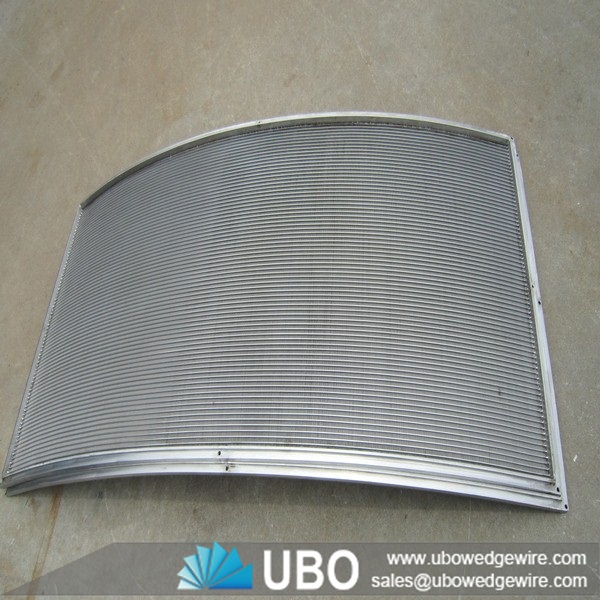

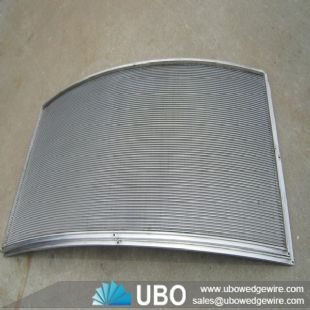

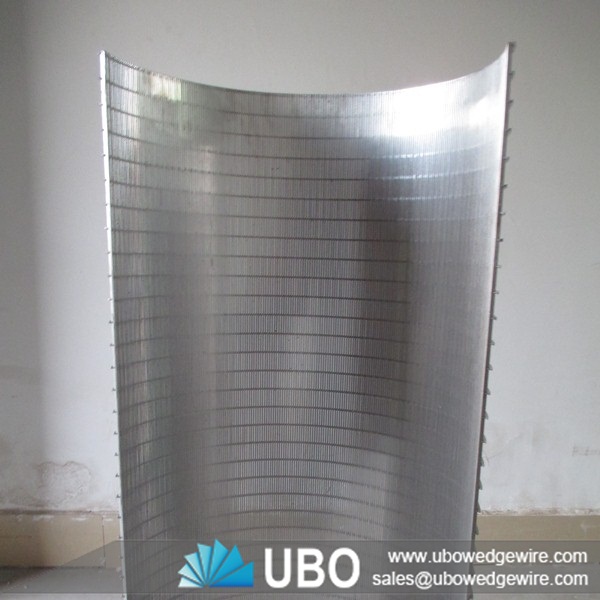

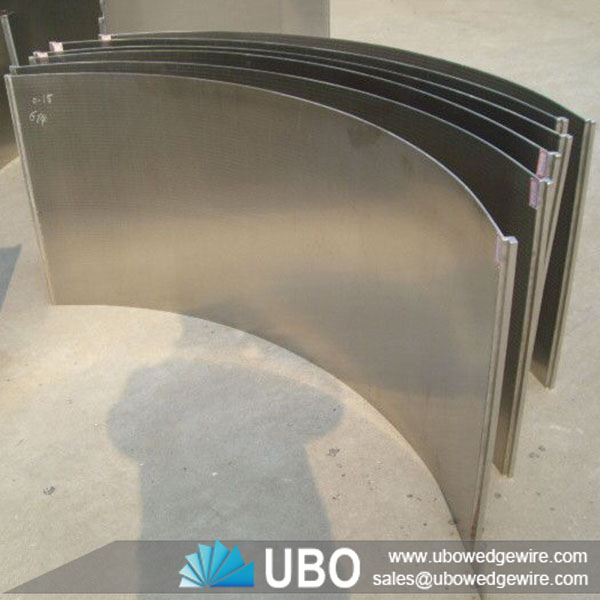

Wedge wire parabolic sieve bend screen curved panel

More Views

Wedge wire parabolic sieve bend screen curved panelWedge wire parabolic sieve bend screen curved panelWedge wire parabolic sieve bend screen curved panel

Wedge wire parabolic sieve bend screen curved panel

Category:Wedge Wire Application
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:sieve bend screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Wedge wire parabolic sieve bend screen curved panel

Wedge wire parabolic sieve bend screen curved panel is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long life time, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot and frame structure can be customized.

Wedge wire parabolic sieve bend screen curved panel

Wedge wire parabolic sieve bend screen curved panel



Application of Wedge wire parabolic sieve bend screen curved panel


They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by dramatically reducing the load. Widely used for fiber removal in Starch industry.

Advantage of Wedge wire parabolic sieve bend screen curved panel

Flat surface.
Excellent filtering performance.
Accurate distance between supporting profile.
Welded production process for solid and strong structure.
Good mechanical properties.
High strength.
High load capacity.
Corrosion and rust resistance.
Temperature resistance.
Chemical stability.

Wedge wire parabolic sieve bend screen curved panel

Wedge wire parabolic sieve bend screen curved panel

Wedge wire parabolic sieve bend screen curved panel

The specifications of the Wedge wire parabolic sieve bend screen curved panel:



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

120º

End connection

Plain beveled ends, flanged or threaded couplings

Wedge wire parabolic sieve bend screen curved panel



The Packaging and Transportation of the Wedge wire parabolic sieve bend screen curved panel:

Wedge wire parabolic sieve bend screen curved panel
