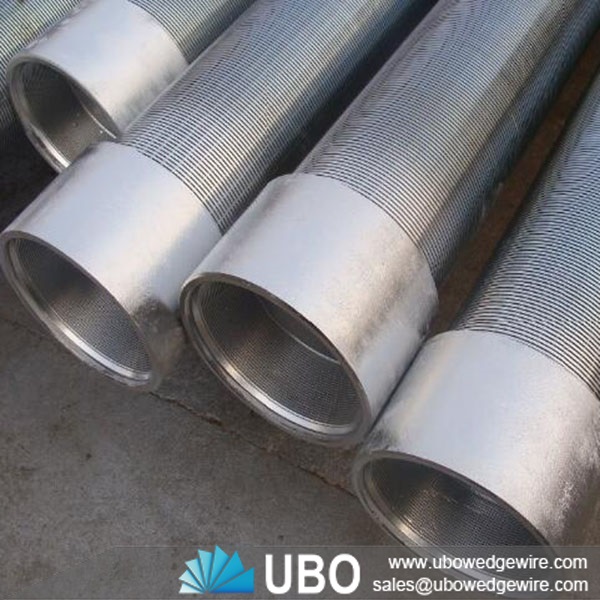

V wire wrapped strainer screen tubes

More Views

V wire wrapped strainer screen tubesV wire wrapped strainer screen tubesV wire wrapped strainer screen tubes

V wire wrapped strainer screen tubes

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Cylinder
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

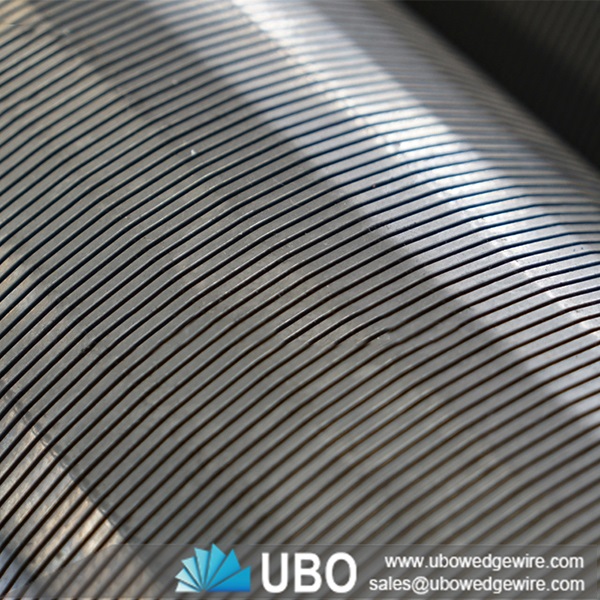

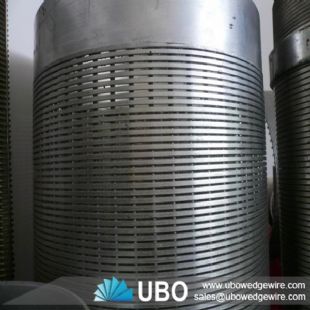

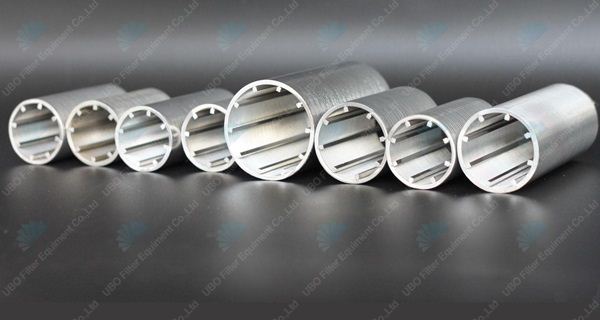

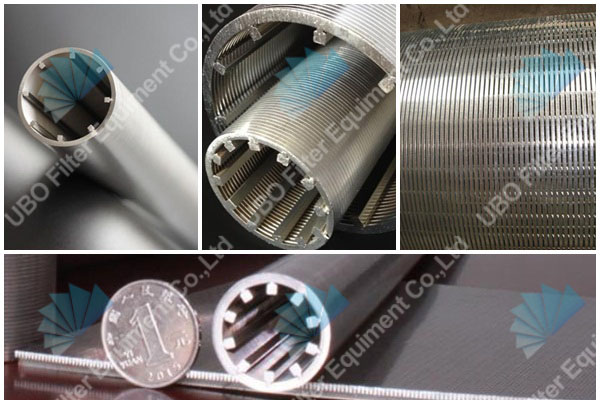

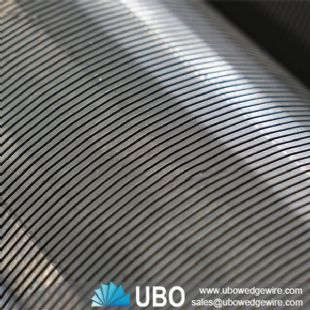

Detailed description of the V wire wrapped strainer screen tubes

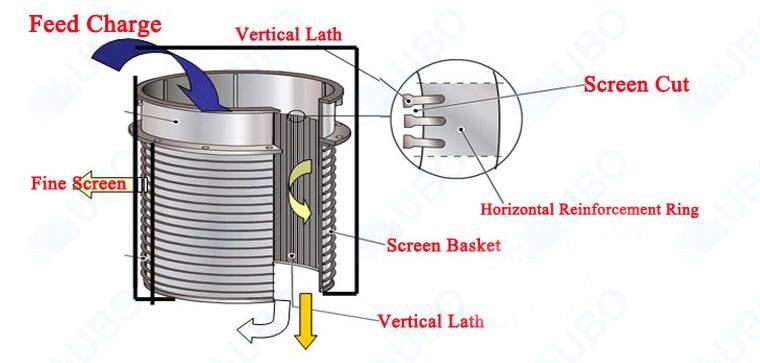

     The V wire wedge wire screen pipe for water well is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire.
    The warp is triangular wire (V-shaped wire). The welded ring sand control wedge wire screen pipe have a robust structure and large open area, as well as accurate slot dimension. At the same time, wedge wire screens pipe have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

V wire wrapped strainer screen tubes

Application for V wire wrapped strainer screen tubes:

Welded stainless steel water well screen pipes are mainly used for the water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant ,sewage treatment and other industries,water,oil or gas filter and other filtration equipment.

Advantages for V wire wrapped strainer screen tubes:

High mechanical strength can bear large pressure drop.
Equal slots for filtering can form equally distributed filter cake.
The wedge type slot can improve backflushing and regeneration performance.
It has resistant to pressure temperature aging corrusion can be applied for different kinds of fluid.
Material 316L, 304, can be made as per your option.

V wire wrapped strainer screen tubes

The specifications of the V wire wrapped strainer screen tubes:

V wire wrapped strainer screen tubes



wedge wire

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

support rod

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters

Diameter

  from 25mm to 1200mm.

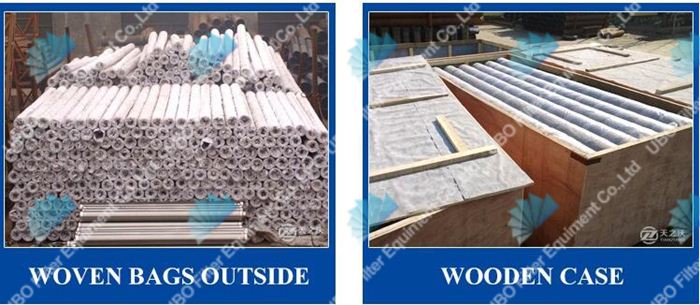

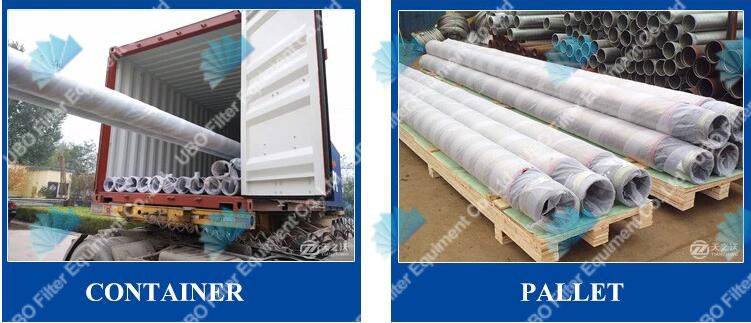

The Packaging and Transportation of the V wire wrapped strainer screen tubes:

V wire wrapped strainer screen tubes

V wire wrapped strainer screen tubes

V wire wrapped strainer screen tubes
