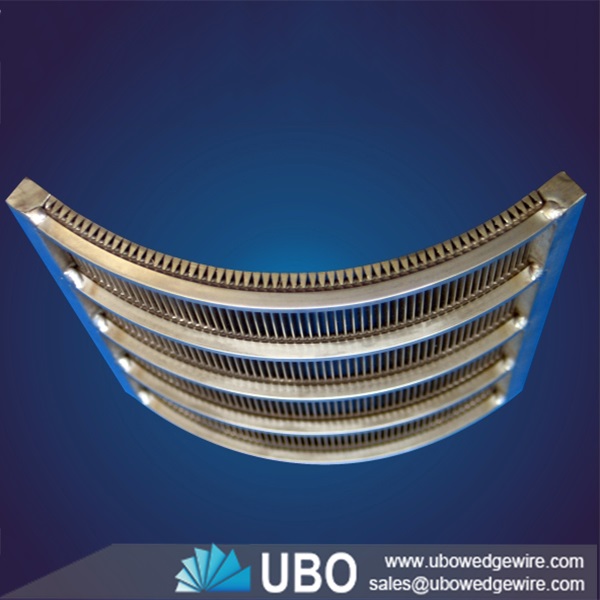

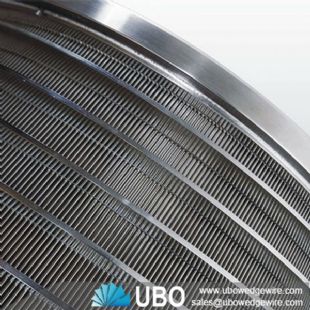

Supply wedge wire Sieve Bend Screen for fish diversion industry

More Views

Supply wedge wire Sieve Bend Screen for fish diversion industrySupply wedge wire Sieve Bend Screen for fish diversion industrySupply wedge wire Sieve Bend Screen for fish diversion industry

Supply wedge wire Sieve Bend Screen for fish diversion industry

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:stainless steel wedge wire
Application:driveways, car parks, shopping centers or malls. It can also solve the problems of solid / liquid and solid / gas separation

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:Enla

Details of Supply wedge wire Sieve Bend Screen for fish diversion industry

Stainless steel slot screen is the wedge wire screen in panel type. The panels offer a perfectly flat and smooth surface with rectangular openings. They are made from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range.

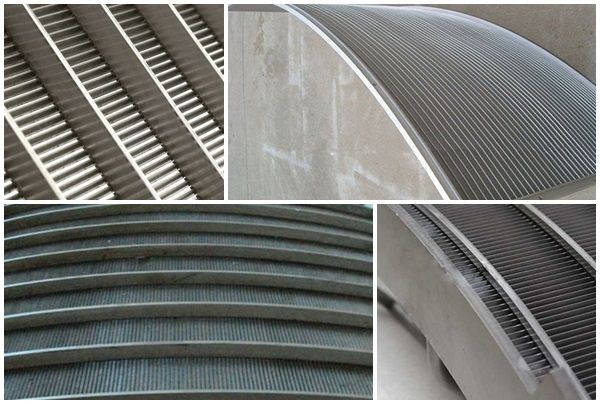

Supply wedge wire Sieve Bend Screen for fish diversion industry

Applications for Supply Wedge Wire Sieve Bend Screen for Fish Diversion Industry:

Wedge wire screens are used in a wide range of architectural situations such as floor grates to cover water run off drains in places such as driveways, car parks, shopping centers or malls. It can also solve the problems of solid / liquid and solid / gas separation,filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.

Characteristic for Supply Wedge Wire Sieve Bend Screen for Fish Diversion Industry:

Low Headroom - only 1.1 metres (44") tall for the 900 mm arc length unit.

Energy Efficient - operates with no moving parts and with no energy input.

Space Efficient - treats up to 122 litres per second per square metre of floor space.

Quiet Operation - no moving parts means no mechanical or electrical vibrations.

Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").

Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.

Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.

Features for Supply Wedge Wire Sieve Bend Screen for Fish Diversion Industry:

• Reduced costs, since wedge wire screens have a very long life.

• Greater resistance to stresses of different pressure and temperature.

• Maximum effective flow area & operating efficiency is maintained.

• Costly downtime for cleaning plugged screens is minimize.

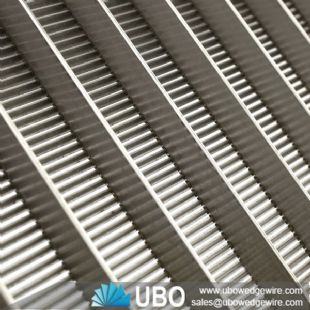

Supply wedge wire Sieve Bend Screen for fish diversion industry

Specifications of Supply wedge wire Sieve Bend Screen for fish diversion industry:

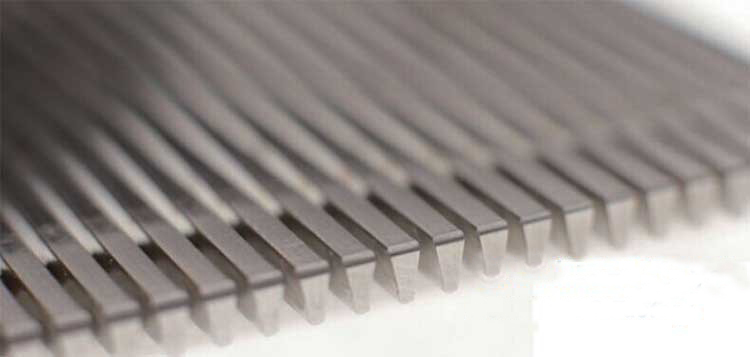

Supply wedge wire Sieve Bend Screen for fish diversion industry


Profile Wire








Width(mm)
1.5
1.5
2.3
2.3
1.8
3.0
3.7
3.3
Height(mm)
2.2
2.5
2.7
3.6
4.3
4.7
5.6
6.3


Support Rod





Round
Width(mm)
2.3
2.3
3.0
3.7
3.3
Ø2.5~Ø5mm
Height(mm)
2.7
3.6
4.7
5.6
6.3

Packaging and Transportation of Supply wedge wire Sieve Bend Screen for fish diversion industry:

Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
