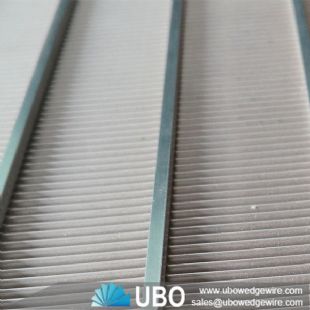

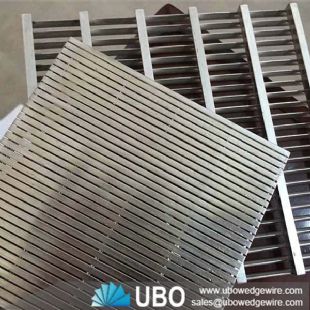

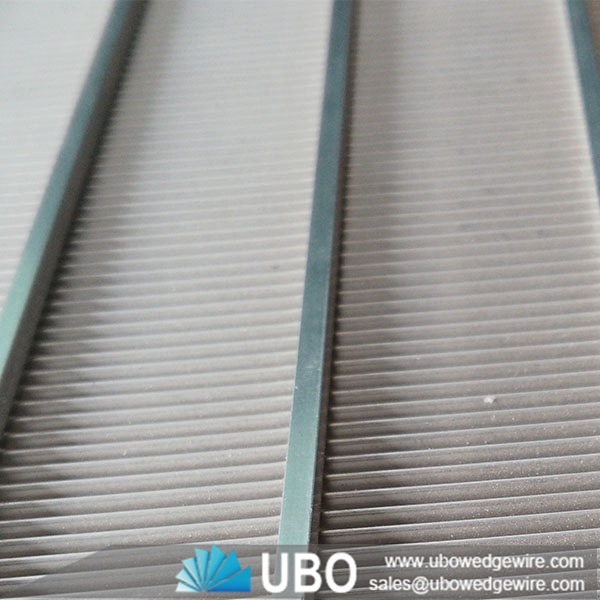

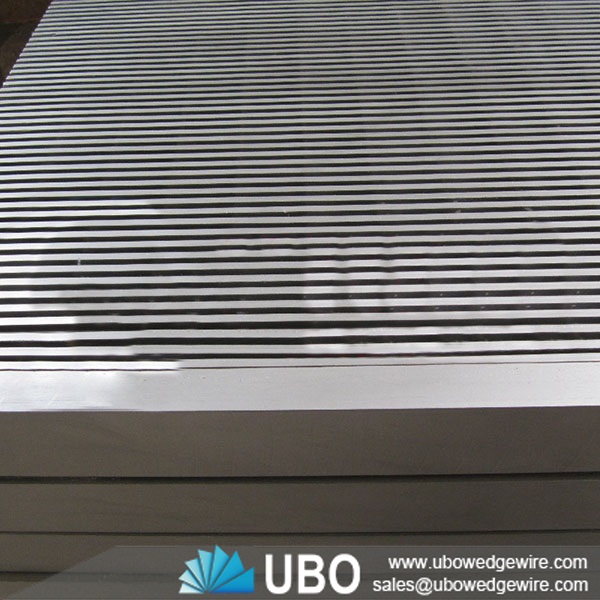

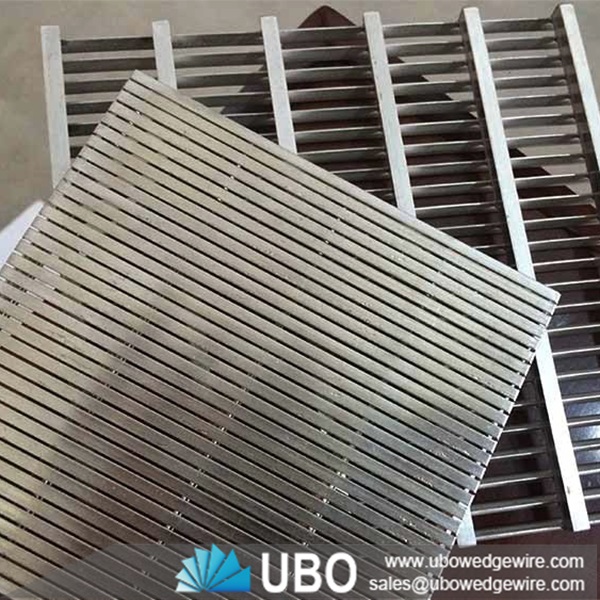

Stainless steel Wedge wire Screen Panels for wastewater
Category: | Wedge Wire Application |
---|---|
Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
Properties: | Wedge wire Screen Panels |
Application: | the water-treating equipment;the environment protection; the sea water transforms into the industrial water and life use water desalination treatment |
if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.
Details of Stainless steel Wedge wire Screen Panels for wastewater

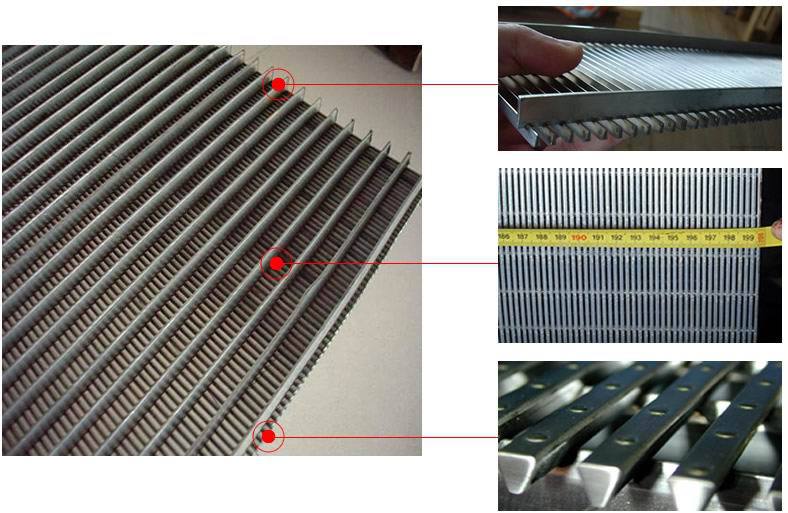

stainless steel wedge wire screen grilles for ventilation is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine, then be made to screen panel through cutting and edge welding. Each profile wire and support rod is welded by resistance welding.
Applications for Stainless steel Wedge wire Screen Panels for wastewater:
Waste water treatment, chemical, petro chemical, environmental protection, Sea water filtration, starch processing, Liquid-solid separation.
Features & Advantages for Stainless steel Wedge wire Screen Panels for wastewater:

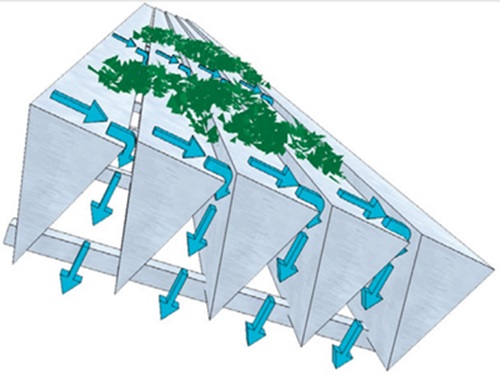

Smooth screen surface proportional slot high separation efficiency High Support strength Available in various sizes and shapes Sieve bend screen with High liquid-solid separation capability
PRODUCTS MARKETS IN HOT SELLING ALL THE WORLD:
Malaysia ; Singapore ; Philippines ; Vietnam; India ; Turkey ; Kuwait;Poland ; Holland ; Bulgaria ; Macedonia ;The USA ; Australian ; Brazil ; Romanian ; Saudi Arabia ; Iran ; Thailand ; Pakistan ; South Africa;
Specifications of Stainless steel Wedge wire Screen Panels for wastewater:
Outside Diameter
|
Profile wire
|
Rod wire
|
Rod quantity
|
Slot size
|
Length
|
||
DN
|
Inch
|
mm
|
mm
|
mm
|
|
mm
|
mm
|
20
|
3/4
|
26.9
|
1.5*2
|
2*3
|
12
|
0.1~0.25
|
45~3000 |
25
|
1
|
33.7
|
1.5*2
|
2*3
|
14
|
0.1~0.25
|
45~3000 |
32
|
1-1/4
|
42.4
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000 |
40
|
1-1/2
|
48.3
|
1.5*2
|
2*3
|
16
|
0.1~0.25
|
45~3000 |
50
|
2
|
60.3
|
1.5*2
|
2*3
|
18
|
0.1~0.5
|
45~3000 |
65
|
2-1/23
|
76.1
|
1.5*2
|
2*3
|
20
|
0.1~0.5
|
45~3000 |
80
|
3
|
88.9
|
1.8*2.5
|
2*3
|
24
|
0.1~0.5
|
1000~6000 |
100
|
4
|
114.3
|
1.8*2.5
|
2*3
|
30
|
0.5~2
|
1000~6000 |
125
|
5
|
139.7
|
2.3*2.7
|
2*3
|
36
|
0.5~2
|
1000~6000 |
150
|
6
|
168.3
|
2.3*2.7
|
3*5
|
44
|
0.5~2
|
1000~6000 |
200
|
8
|
219.1
|
3.3*3.5
|
3*4.7
|
56
|
0.5~2
|
1000~6000 |
250
|
10
|
273
|
3.3*3.5
|
4*6
|
66
|
0.5~2
|
1000~6000 |
300
|
12
|
323.9
|
3.3*4.7
|
4*6
|
72
|
0.5~2
|
1000~6000 |
350
|
14
|
355.6
|
3.7*5
|
4*6
|
80
|
0.5~2
|
1000~6000 |
400
|
16
|
406.4
|
1.5*2
|
2*3
|
94
|
0.1*2
|
1000~6000 |
450
|
18
|
457
|
2*3
|
4*5
|
112
|
0.1*2
|
500~400 |
500
|
20
|
508
|
2*3
|
4*5
|
124
|
0.1*2
|
500~400 |
550
|
22
|
559
|
2*3
|
4*5
|
140
|
0.1*2
|
500~400 |
600
|
24
|
610
|
2*3
|
4*5
|
156
|
0.1*2
|
500~400 |
Siot:0.1mm~2mm Tolerance:0.05 |
