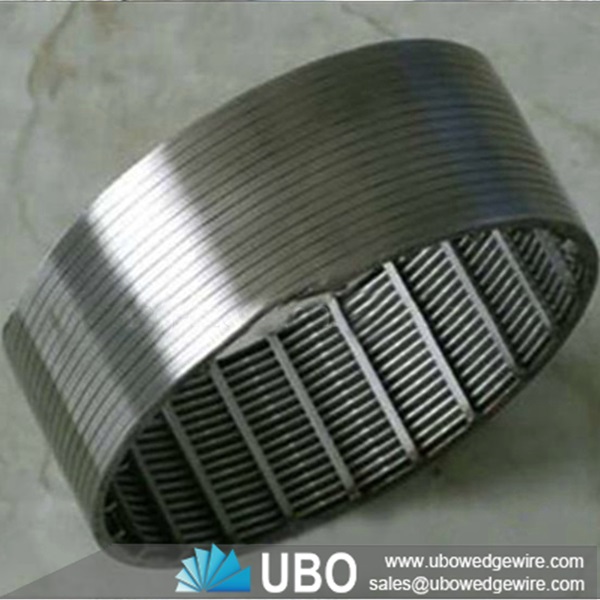

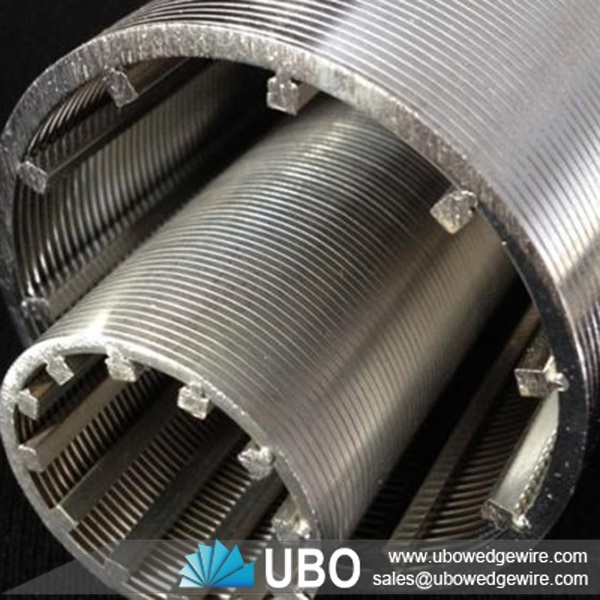

Stainless Steel Wedge Wire Screen tube for water well

More Views

Stainless Steel Wedge Wire Screen tube for water wellStainless Steel Wedge Wire Screen tube for water wellStainless Steel Wedge Wire Screen tube for water well

Stainless Steel Wedge Wire Screen tube for water well

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Pipe
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Stainless Steel Wedge Wire Screen tube for water well

   SS Johnson v wire wrapped water well screen tube (V-shaped wire). The Industrial wedge wire wrapped screen have a robust structure and large open area, as well as accurate slot dimension. At the same time, wedge wire screens pipe have many advantages such as heat-resisting, anti-corrosive, good machine capability,long service life, safety and reliability and so on. It can be used in many kinds of medium filtering.

Application Stainless Steel Wedge Wire Screen tube for water well:

The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, Johnson screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. Johnson screen can be used in many kinds of medium filtering.

Function and Characteristics Stainless Steel Wedge Wire Screen tube for water well:

1. The sand filter tubes have the efficient sand prevention performance can preferably forbid the formation particle and fulfill the need of sand control.
2. Even filter pores, high permeability and anti-blocking.
3. Large filtering area, small flow resistance and high oil extraction rate
4. Stainless material has the corrosion resistant ability of antacid, alkali and salt, can easily suit the special requirement of the petroleum well. And the slot wont be enlarged because of the corrosion.
5. Multiple structure was welded together with stable filtering pore which made the strong non-deformability.

Stainless Steel Wedge Wire Screen tube for water well

The specifications of the Stainless Steel Wedge Wire Screen tube for water well:

Stainless Steel Wedge Wire Screen tube for water well




Specification (wedge wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:
galvanized low carton (LCG), stainless steel (304,316 etc.)
Length
up to 6 meters.
Diameter
from 25mm to 1200mm.
End connection
Plain beveled ends, flanged or threaded couplings

The Packaging and Transportation of the Stainless Steel Wedge Wire Screen tube for water well:

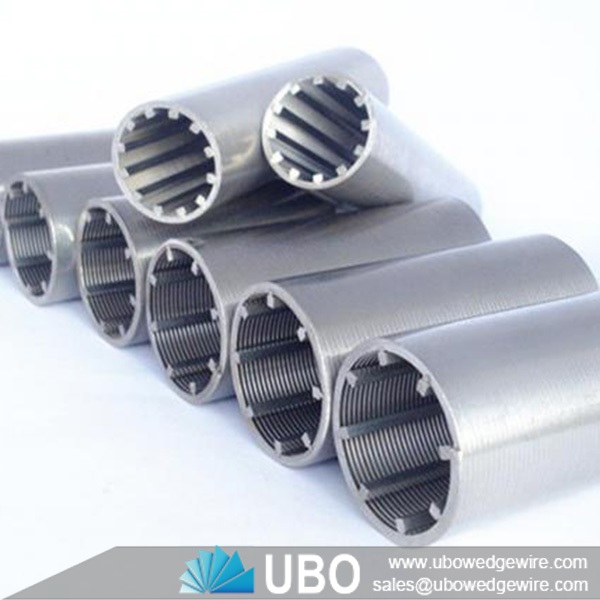

Stainless Steel Wedge Wire Screen tube for water well
