Screens resin traps for water processing

More Views

Screens resin traps for water processingScreens resin traps for water processingScreens resin traps for water processing

Screens resin traps for water processing

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Resin Traps
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the Screens resin traps for water processing

     Resin trap for ion exchange post-processing procedures designed to minimize the loss of the ion exchange resin. UBO Ltd. can be designed to capture particles of any size media catcher. To capture enough flow area to the processes that run smoothly due to the continuous open slot. We provide various types of resin trap to meet almost any purpose. A variety of materials and connection flange and the shell can be produced. Authentic 304 and 316L material

Application for Screens resin traps for water processing:

1. feedstock oil backwash cleaning filter device in the system for petrochemical hydrogenation
2. precious metals catalysts recovery for hydrogenation system
3. Catalytic outer rejection oil automatic backwash cleaning filter system
4. purification of liquid sulphur filter
5. lubricants and heat-conducting oil filter
6. paraffin raw materials and products of filter
7. the rich amine liquid backwash purification filter in the amine desulfurization system
8. high-temperature coal gas, smoke gas and oil gas purification
9. raw materials of paraffin wax and backwash purification filter
10.the gas-liquid mixing pressurized reverse washing efficiency continuous filtration technology

Performance characteristics for Screens resin traps for water processing:

1. filter made of stainless steel trapezoidal wire, screen slot is v-shape, can effectively intercept resin impurities.
2. trapezoidal wire evenly circumferentially array on the support bar,ensure the screen filter area and non-obstructive, avoiding impurities concentrated.
3. resin trap all connected by welding, durable, long life.
4. After working for some time,can filter backwash, multiple use

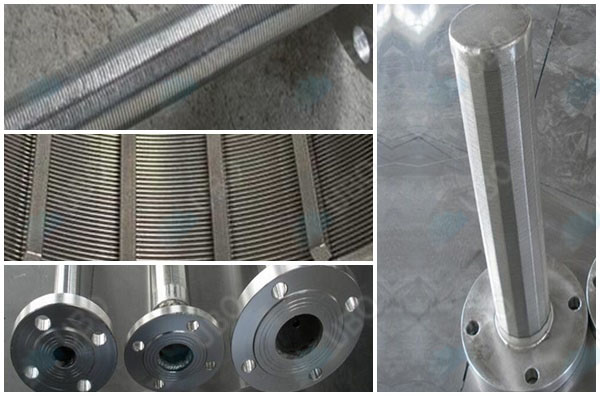

Screens resin traps for water processing

The specifications of the Screens resin traps for water processing:

Screens resin traps for water processing



Type

Slots mm

ΦA

Flange DN

L1mm

AM1

0.05, 0.1, 0.2

0.3, 0.5, 1.0

45,57,76,89,108,

133, 159, 219

40,50,65,80,

100,125,150, 200

442,496,547, 600,654,705,

758,812,863, 916,970,1021,

1074,1128,1179, 1232, 1286

The Packaging and Transportation of the Screens resin traps for water processing:

Screens resin traps for water processing
