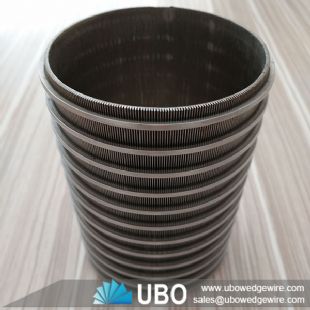

SS Wedge v wire wrapped screen pipe for wastewater treatment

More Views

SS Wedge v wire wrapped screen pipe for wastewater treatmentSS Wedge v wire wrapped screen pipe for wastewater treatmentSS Wedge v wire wrapped screen pipe for wastewater treatment

SS Wedge v wire wrapped screen pipe for wastewater treatment

Category:Wedge Wire Application
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:wedge wire screen pipe
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

if you are interested in receiving more information or have a question regarding any of our products please fill out the form above and we will contact you within 24-48 hours.

Skype:yolanda

Detailed description of the SS Wedge v wire wrapped screen pipe for wastewater treatment

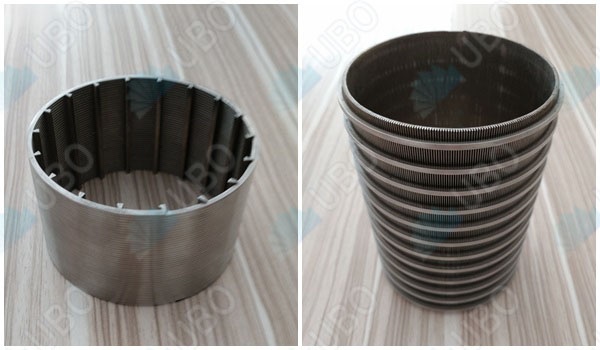

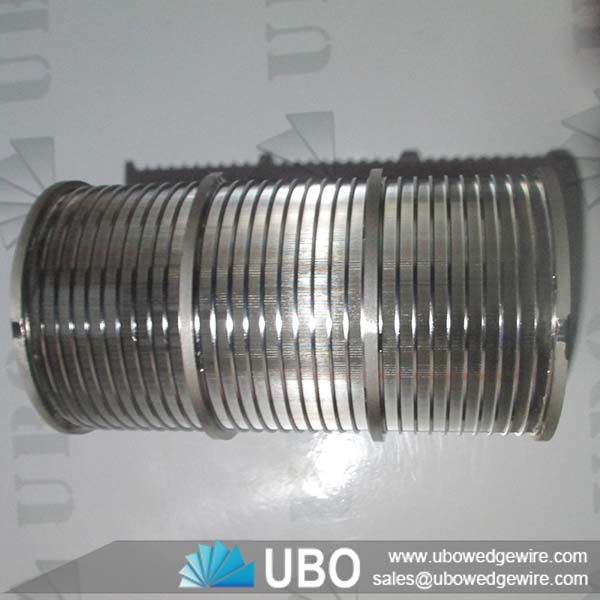

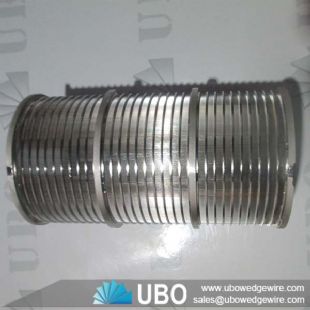

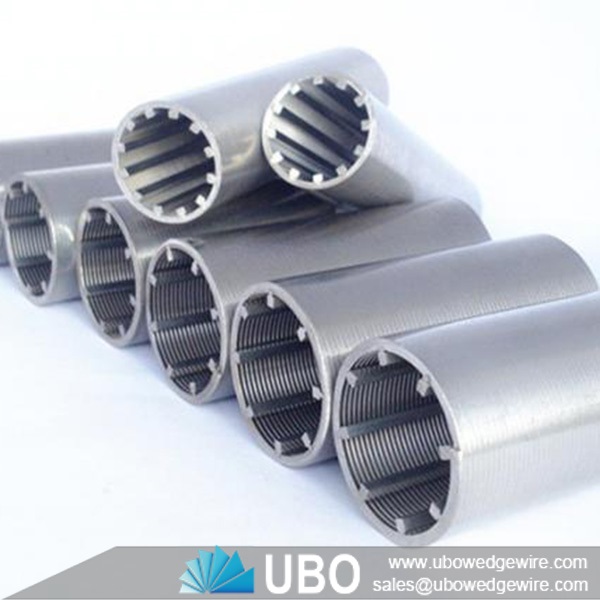

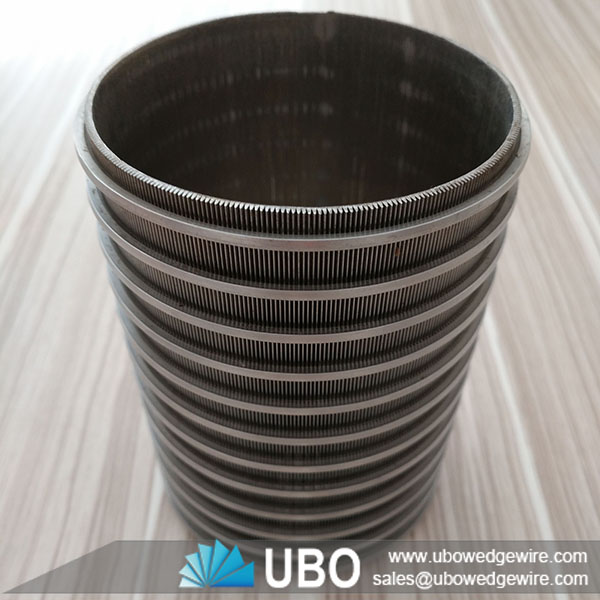

SS Wedge v wire wrapped screen pipe, also called round slot tube. It is made of stainless steel wire, which is the most popular type because of outstanding chemical stability and corrosion resistance.

The SS Wedge v wire wrapped screen pipe is composed of working profile and support profile. It is produced on an automotive machine. The support profiles is placed on the suit position of the machine, during the surface profiles are spirally wounding, the support profiles are welded onto the surface profiles.

SS Wedge v wire wrapped screen pipe for wastewater treatment

Features of SS Wedge v wire wrapped screen pipe for wastewater treatment

1. Accurate filtering performance.
2. High efficiency.
3. Narrow slot openings.
4. Normal or high grade type for choice.
5. Various edge types.
6. Wide range of diameters for choice.
7. Special sizes can be customized.
8. Economical but high grade.
9. Corrosion resistance.
10. Rust resistance.
11. Long service life and durable.

SS Wedge v wire wrapped screen pipe for wastewater treatment

Applications of SS Wedge v wire wrapped screen pipe for wastewater treatment

1. Petroleum industry: Oil filtration.
2. Water treatment industry: Desalination of seawater, treatment of industrial water and domestic water. Water softening treatment.
3. Chemical industry: End products of chemical organic solution filtration, such as acid, alkali liquid filtration, alcohol and other products filtering.
4. Hydro-geological exploration.
5. Drilling construction.
6. Geothermal development.

SS Wedge v wire wrapped screen pipe for wastewater treatment

The specifications of the SS Wedge v wire wrapped screen pipe for wastewater treatment:

SS Wedge v wire wrapped screen pipe for wastewater treatment

Wire Size

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Support Rods

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other wires and rods available upon request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End connection

Plain beveled ends for butt welding or threaded

SS Wedge v wire wrapped screen pipe for wastewater treatment



The Packaging and Transportation of the SS Wedge v wire wrapped screen pipe for wastewater treatment:

SS Wedge v wire wrapped screen pipe for wastewater treatment
